Stoplamp Switch: Removal
WARNING: This page is about a different car, the 2019 Ford SSV Plug-in Hybrid, 2019 Ford Police Responder Hybrid, and 2019 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Do not press, pull or otherwise move the brake pedal while removing or installing the stoplamp switch. The switch must be installed with the booster push rod attached to the brake pedal and with the brake pedal in the at-rest position. Installing the switch with the brake pedal in any other position results in incorrect adjustment and damage to the switch.
NOTE:
Removal steps in this procedure may contain installation details.

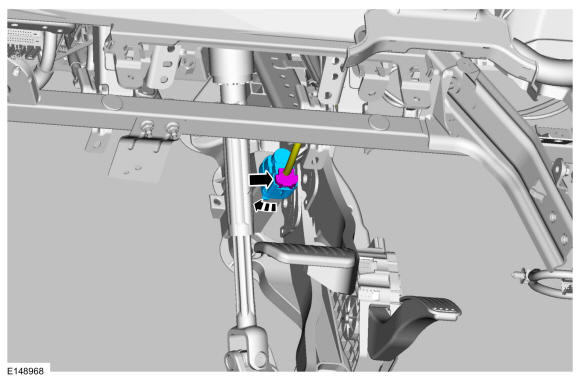

- Remove the stoplamp switch.
- Disconnect the stoplamp switch electrical connector.
- Turn the stoplamp switch clock-wise and remove the switch.
