Light Emitting Diode (LED) Control Module: Removal
WARNING: This page is about a different car, the 2019 Ford SSV Plug-in Hybrid, 2019 Ford Police Responder Hybrid, and 2019 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
All vehicles
- Remove the headlamp assembly. Refer to: Headlamp Assembly .

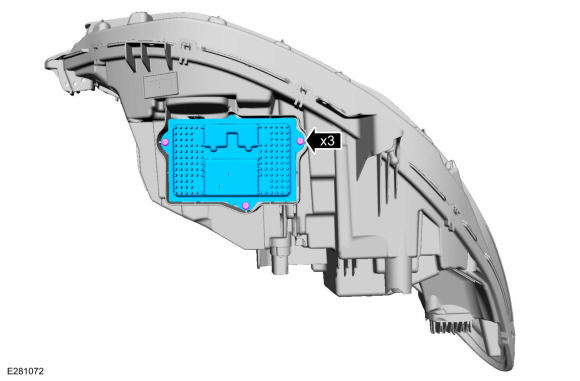

Vehicles with Light Emitting Diode headlamps
- Remove the screws and the LED control module.

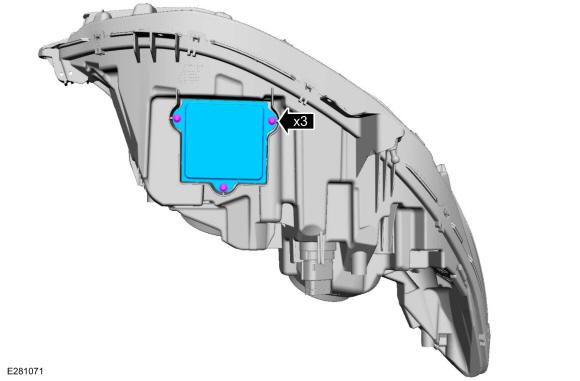

Vehicles with Halogen Light Emitting Diode enhanced headlamps
- Remove the screws and the LED control module.
