High Mounted Stoplamp: Removal

WARNING: This page is about a different car, the 2019 Ford SSV Plug-in Hybrid, 2019 Ford Police Responder Hybrid, and 2019 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.
  1. Partially lower the headliner.

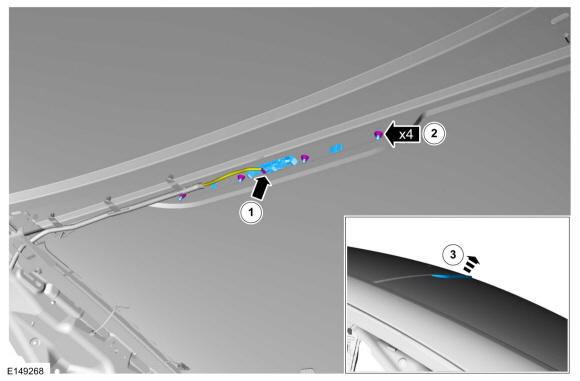

  2. Remove the high mounted stoplamp.

    1. Disconnect the high mounted stoplamp electrical connector.
    2. Remove the nuts.
    3. Separate the high mounted stoplamp from the roof panel.

GFD436768Courtesy of FORD MOTOR COMPANY
