Headlamp Switch: Removal

WARNING: This page is about a different car, the 2019 Ford SSV Plug-in Hybrid, 2019 Ford Police Responder Hybrid, and 2019 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.

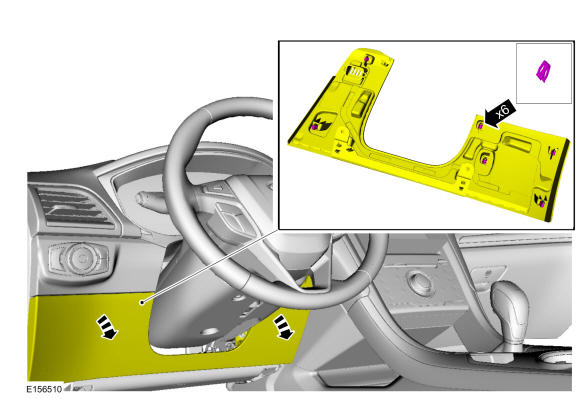

  1. Release the clips and remove the steering column opening trim panel.
    GFD436764Courtesy of FORD MOTOR COMPANY

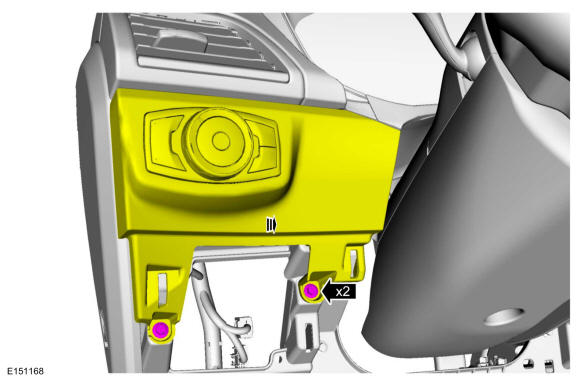

  2. Remove the bolts and position aside the LH instrument panel trim panel.

    Torque: 22 lb.in (2.5 Nm)

    GFD436765Courtesy of FORD MOTOR COMPANY

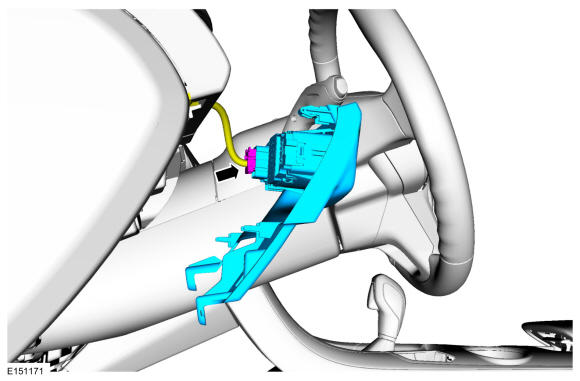

  3. Disconnect the electrical connector.
    GFD436766Courtesy of FORD MOTOR COMPANY

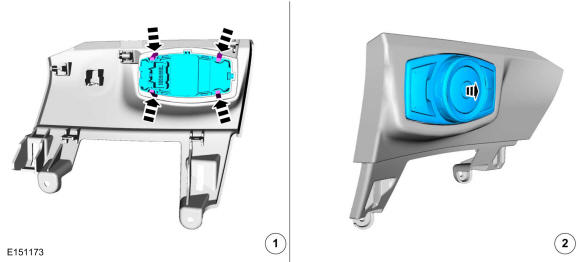

  4. Remove the headlamp switch.

    1. Release the tabs.
    2. Remove the headlamp switch.

GFD436767Courtesy of FORD MOTOR COMPANY
