Headlamp Control Module (HCM): Removal

WARNING: This page is about a different car, the 2019 Ford SSV Plug-in Hybrid, 2019 Ford Police Responder Hybrid, and 2019 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.
  1. NOTE: If installing a new module, it is necessary to upload the module configuration information to the scan tool prior to removing the module. This information must be downloaded into the new module after installation.

    Using a diagnostic scan tool, begin the PMI process for the HCM following the on-screen instructions

  2. Remove the driver knee airbag. Refer to: Driver Knee Airbag .
  3. Disconnect the HCM electrical connector.

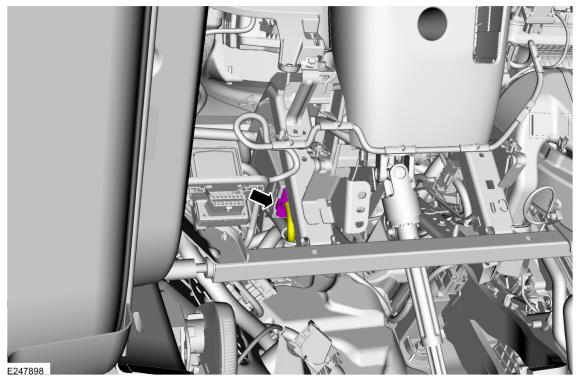

    GFD436762Courtesy of FORD MOTOR COMPANY
  4. Remove the bolt and the HCM.

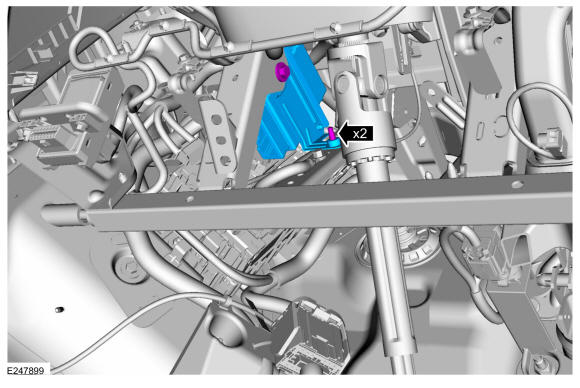

GFD436763Courtesy of FORD MOTOR COMPANY
