Headlamp Bulb: Removal

WARNING: This page is about a different car, the 2019 Ford SSV Plug-in Hybrid, 2019 Ford Police Responder Hybrid, and 2019 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: The procedure for the LH headlamp assembly is shown, the RH headlamp assembly is similar.

NOTE: Removal steps in this procedure may contain installation details.

Low beam headlamp bulb

NOTE: LH is shown, RH is similar.

NOTE: LH is shown, RH is similar.

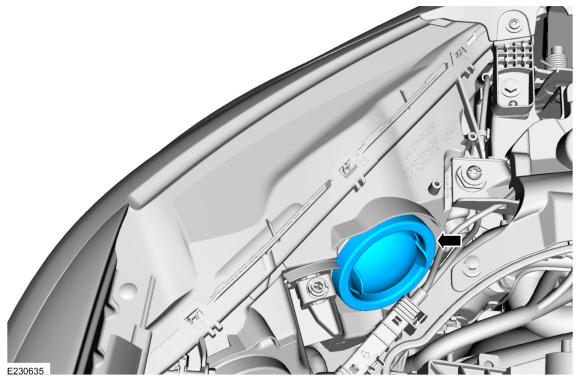

Remove the low beam headlamp cover

Courtesy of FORD MOTOR COMPANY

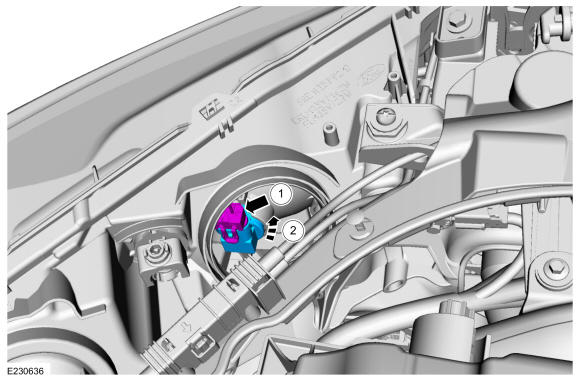

Remove the low beam headlamp bulb.
1. Disconnect the bulb electrical connector.
2. Rotate the bulb and release the bulb.
Courtesy of FORD MOTOR COMPANY

High beam headlamp bulb

NOTE: LH is shown, RH is similar.

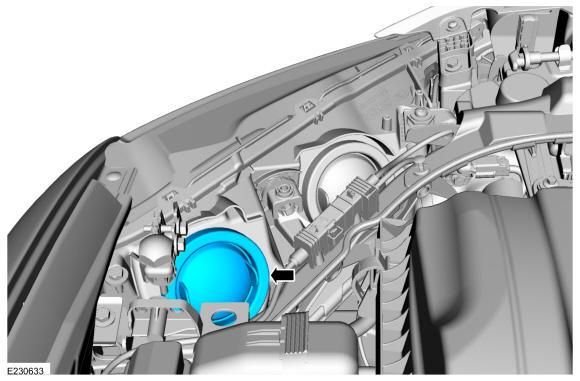

Remove the high beam headlamp cover

Courtesy of FORD MOTOR COMPANY

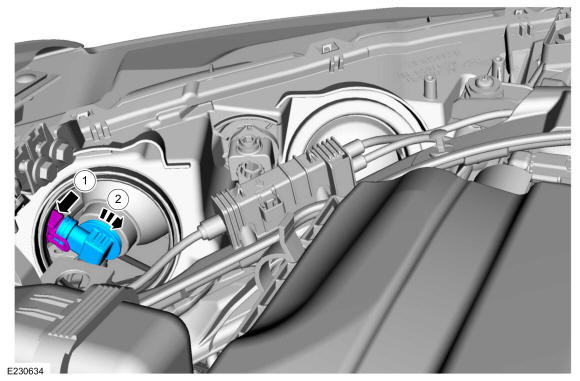

Remove the high beam headlamp bulb.
1. Disconnect the electrical connector.
2. Rotate the bulb and release the bulb.
Courtesy of FORD MOTOR COMPANY

Turn signal lamp bulb

NOTE: LH is shown, RH is similar.
Remove the headlamp assembly. Refer to: Headlamp Assembly .

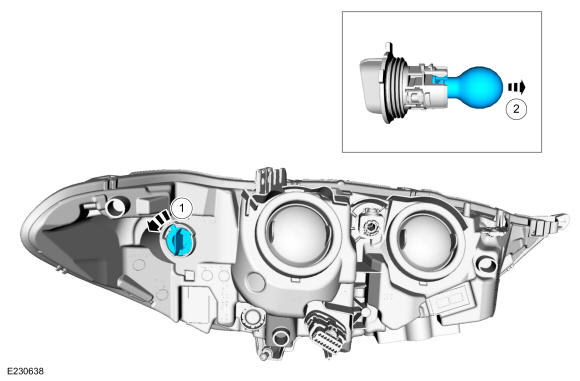

Remove the turn signal lamp bulb.
1. Remove the turn signal bulb holder.
2. Separate the turn signal bulb from the bulb holder.

Courtesy of FORD MOTOR COMPANY
