Headlamp Assembly: Installation

WARNING: This page is about a different car, the 2019 Ford SSV Plug-in Hybrid, 2019 Ford Police Responder Hybrid, and 2019 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.

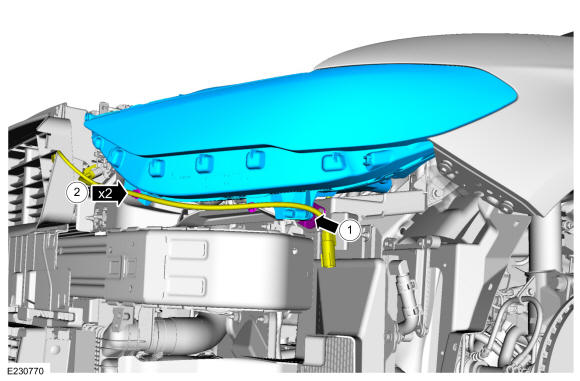

Position the headlamp assembly.
1. Install the headlamp assembly on the ball stud.
2. If equipped, install the wiring harness guides to the headlamp assembly.
Courtesy of FORD MOTOR COMPANY
NOTE: When installing a new headlamp assembly, position the headlamp ballstud in the socket and align the headlamp assembly edge to the fender. If the headlamp assembly cannot be aligned adjust the ballstud socket.

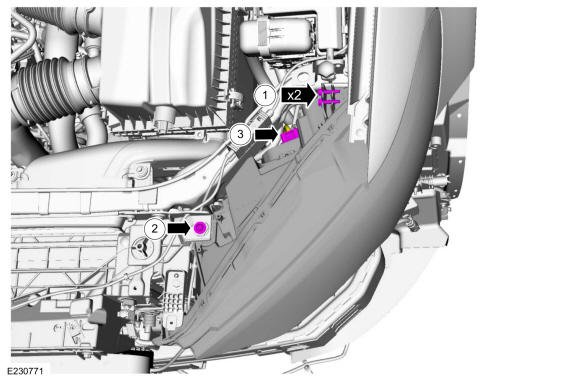

Install the headlamp assembly
1. Install the bolts finger tight.
2. Install the screw finger tight.
3. Connect the electrical connector.
Courtesy of FORD MOTOR COMPANY

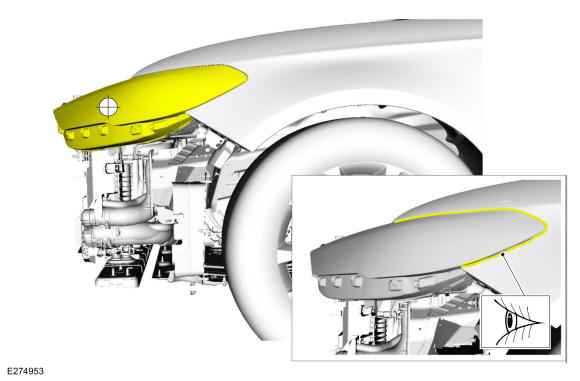

Align the headlamp assembly to the fender opening.

Courtesy of FORD MOTOR COMPANY

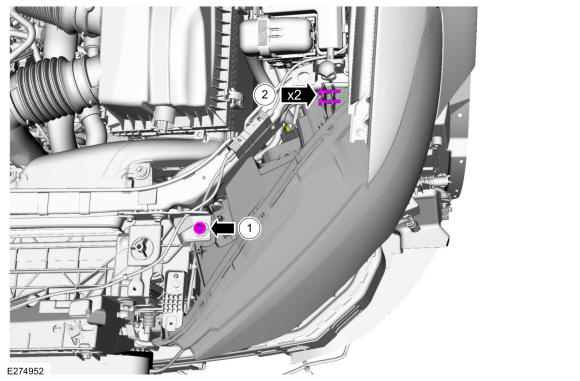

- Tighten the bolt.
- Tighten the screws.
  Torque: 32 lb.in (3.6 Nm)
Courtesy of FORD MOTOR COMPANY
Install the bumper cover. Refer to: Front Bumper Cover .
Adjust the headlamp. Refer to: Headlamp Adjustment .
