Front Fog Lamp: Removal

WARNING: This page is about a different car, the 2019 Ford SSV Plug-in Hybrid, 2019 Ford Police Responder Hybrid, and 2019 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.

Fusion

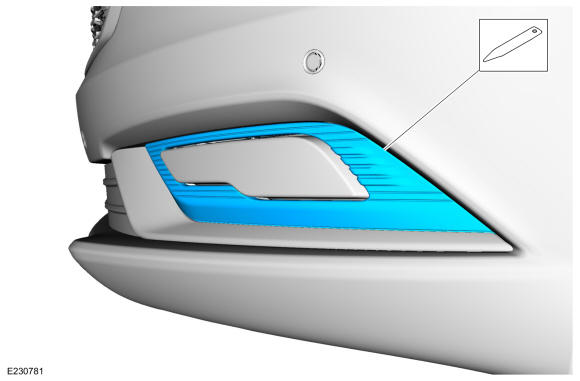

Using a non-marring tool remove the foglamp bezel. Use the General Equipment: Interior Trim Remover

Courtesy of FORD MOTOR COMPANY

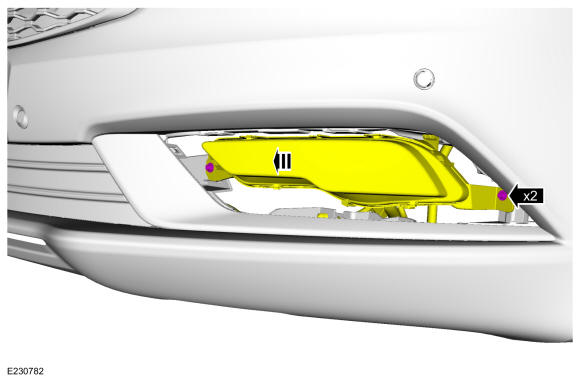

Remove the screws and position the foglamp forward.

Courtesy of FORD MOTOR COMPANY

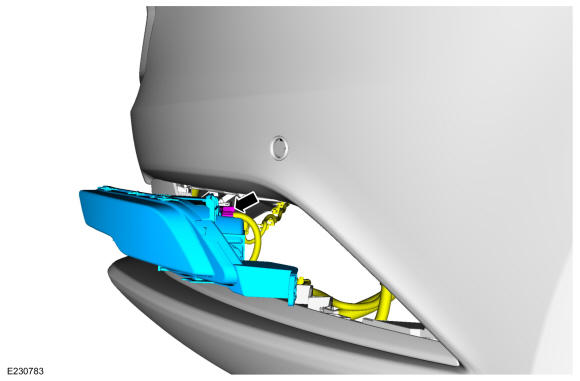

Disconnect the electrical connector and remove the front foglamp.

Courtesy of FORD MOTOR COMPANY

Fusion Sport
Remove the front bumper cover. Refer to: Front Bumper Cover .

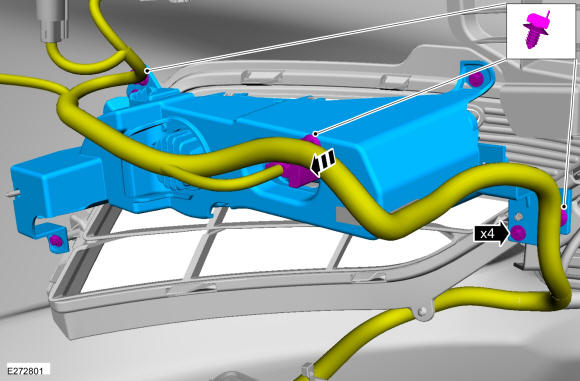

Detach the harness retainers, remove the bolts and the fog lamp mounting bracket.
- Disconnect the electrical connector.
Courtesy of FORD MOTOR COMPANY

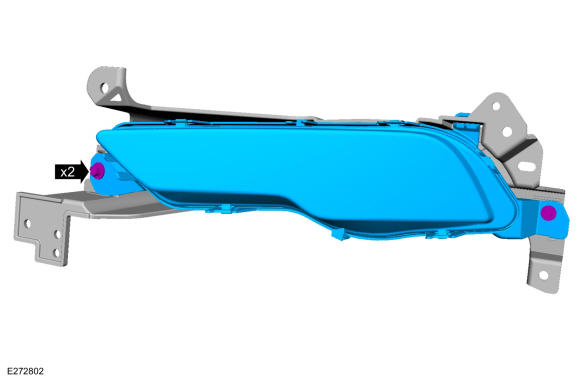

Remove the bolts and the fog lamp.

Courtesy of FORD MOTOR COMPANY
