Turn Signal/Stop/Hazard Lamps

WARNING: This page is about a different car, the 2019 Ford SSV Plug-in Hybrid, 2019 Ford Police Responder Hybrid, and 2019 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Turn Signal/Stop/Hazard Lamps Wiring Diagram (1 Of 6)
GFDWR73030Courtesy of FORD MOTOR COMPANY
Fig 2: Turn Signal/Stop/Hazard Lamps Wiring Diagram (2 Of 6)
GFDWR73031Courtesy of FORD MOTOR COMPANY

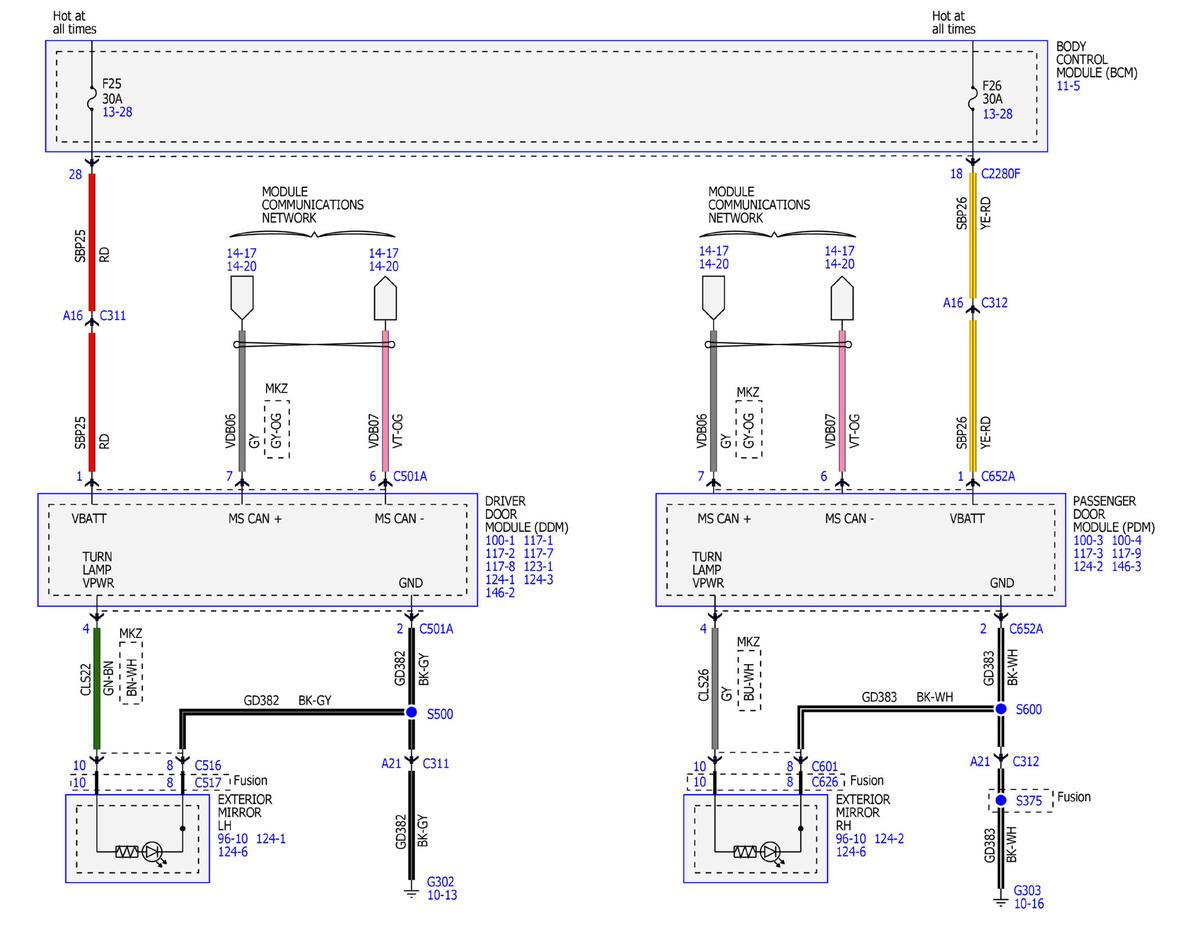

Fig 3: Turn Signal/Stop/Hazard Lamps Wiring Diagram (3 Of 6)
GFDWR73032Courtesy of FORD MOTOR COMPANY
Fig 4: Turn Signal/Stop/Hazard Lamps Wiring Diagram (4 Of 6)
GFDWR73033Courtesy of FORD MOTOR COMPANY

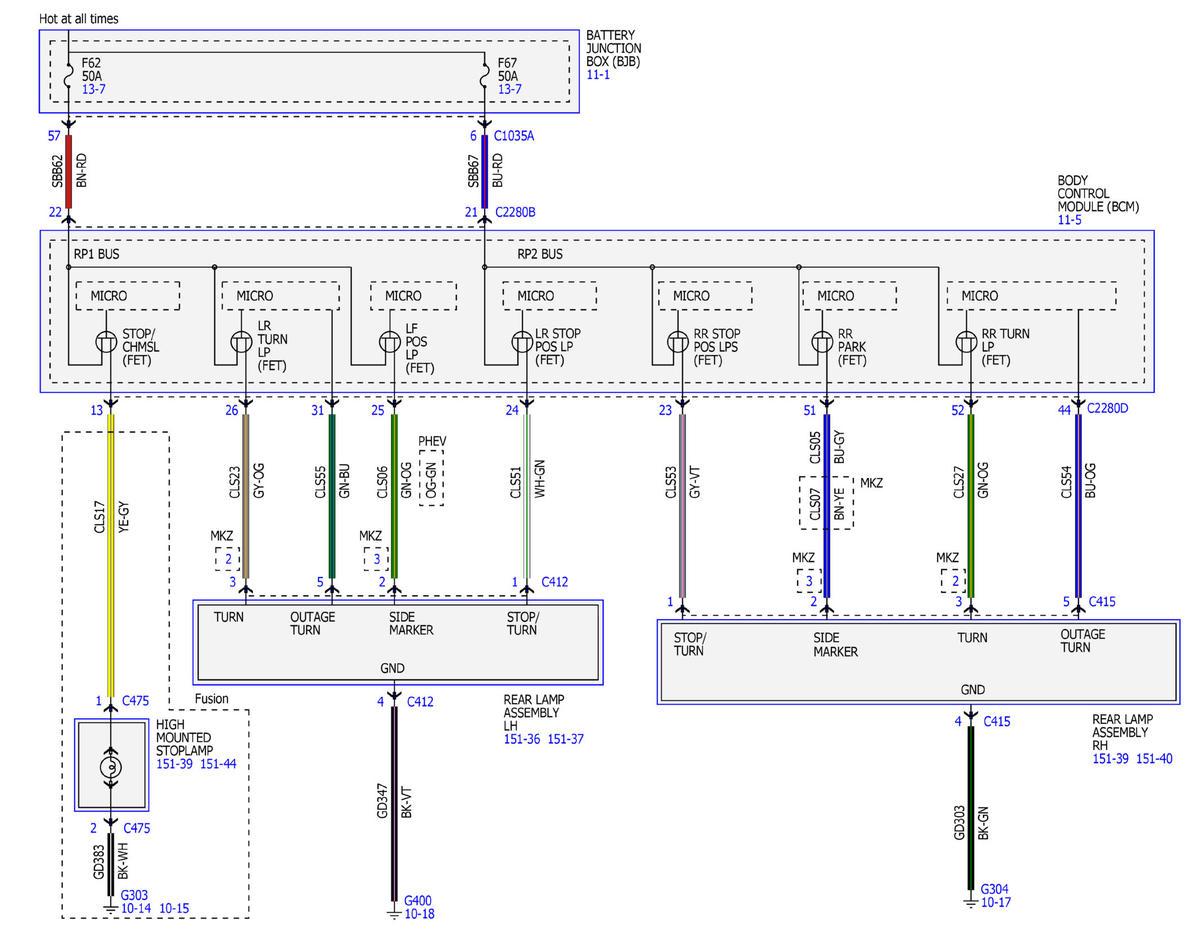

Fig 5: Turn Signal/Stop/Hazard Lamps Wiring Diagram (5 Of 6)
GFDWR73034Courtesy of FORD MOTOR COMPANY

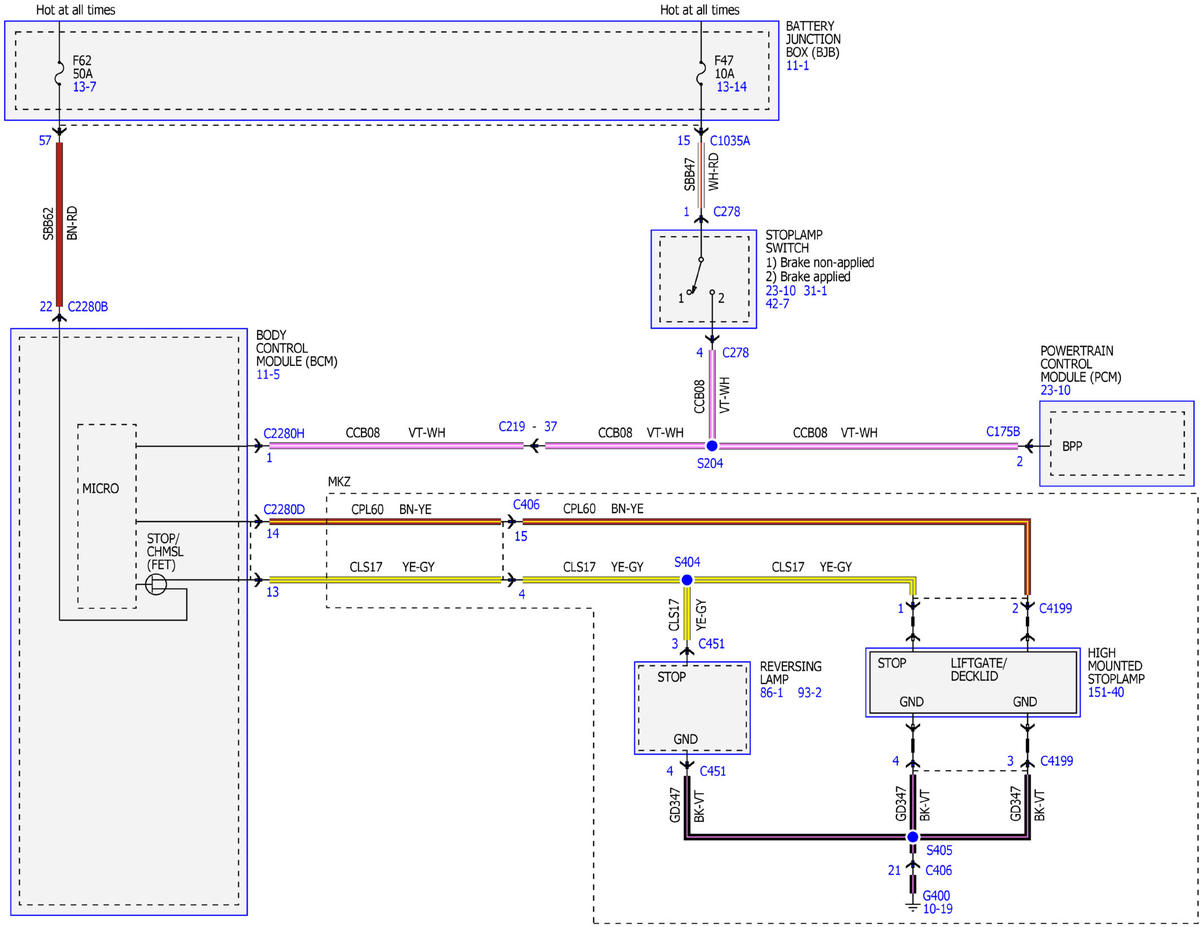

Fig 6: Turn Signal/Stop/Hazard Lamps Wiring Diagram (6 Of 6)
GFDWR73035Courtesy of FORD MOTOR COMPANY
