Reversing Lamps

WARNING: This page is about a different car, the 2019 Ford SSV Plug-in Hybrid, 2019 Ford Police Responder Hybrid, and 2019 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.

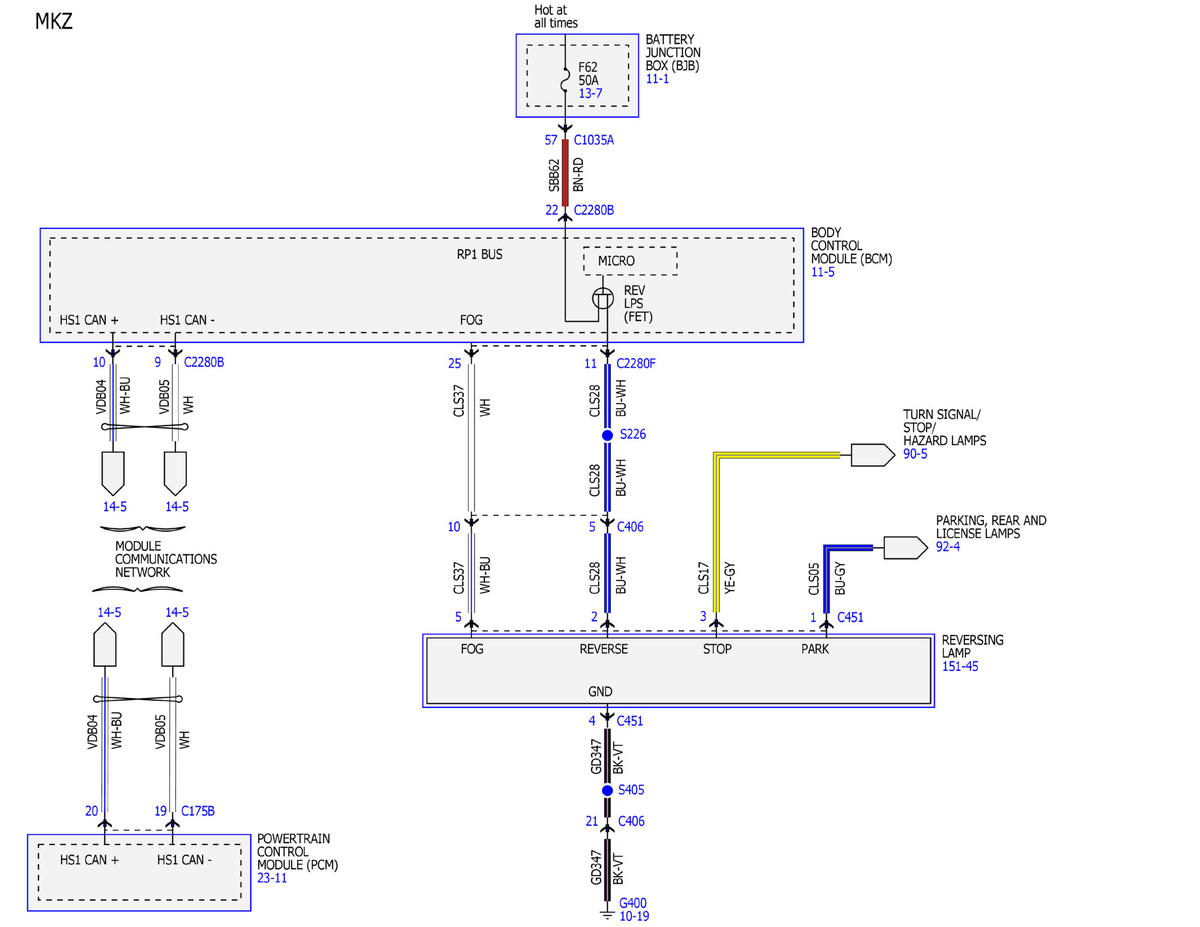

Fig 1: Reversing Lamps Wiring Diagram (1 Of 2)

Courtesy of FORD MOTOR COMPANY

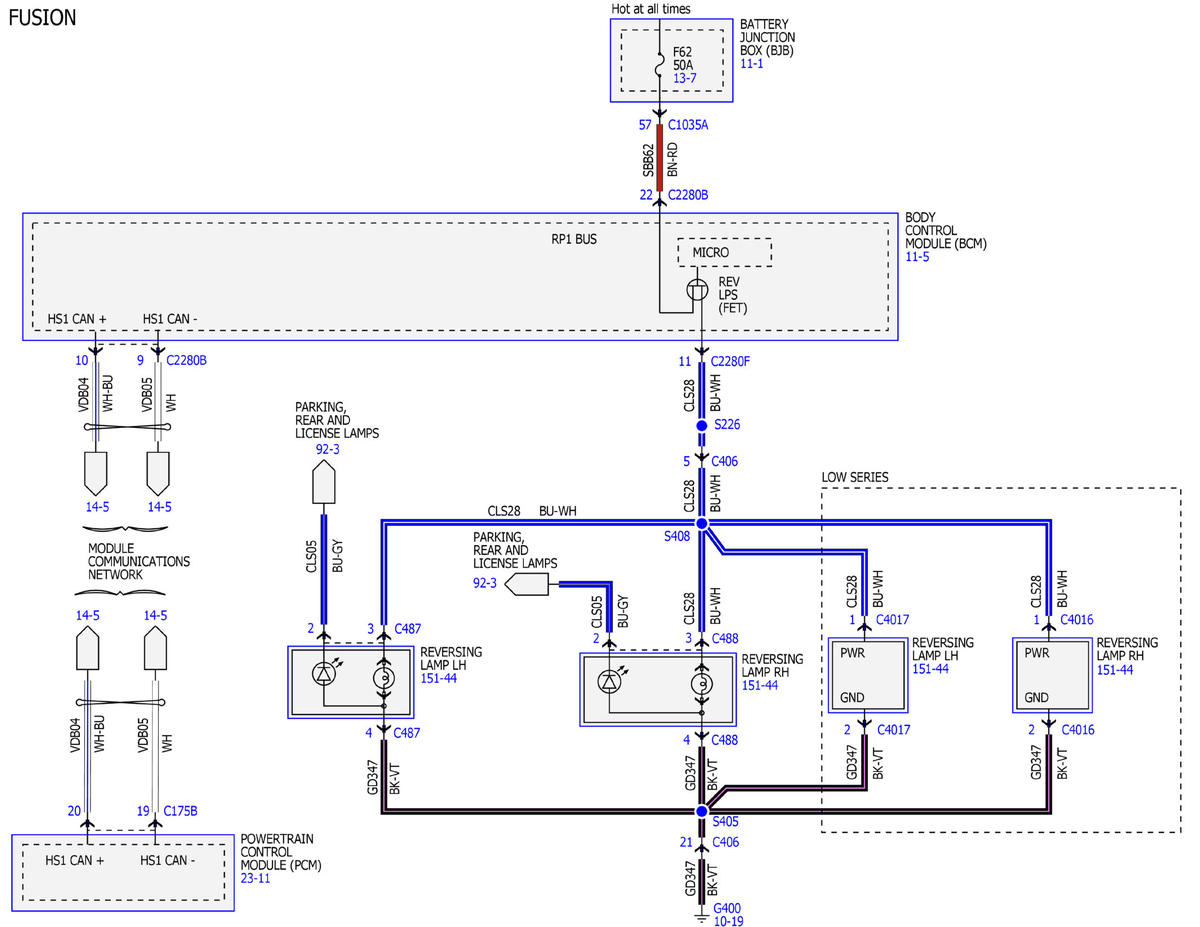

Fig 2: Reversing Lamps Wiring Diagram (2 Of 2)

Courtesy of FORD MOTOR COMPANY
