Section 448 (OEM Wiring Diagrams (Hybrid/ENERGI)): Headlamps/Autolamps

WARNING: This page is about a different car, the 2019 Ford SSV Plug-in Hybrid, 2019 Ford Police Responder Hybrid, and 2019 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.

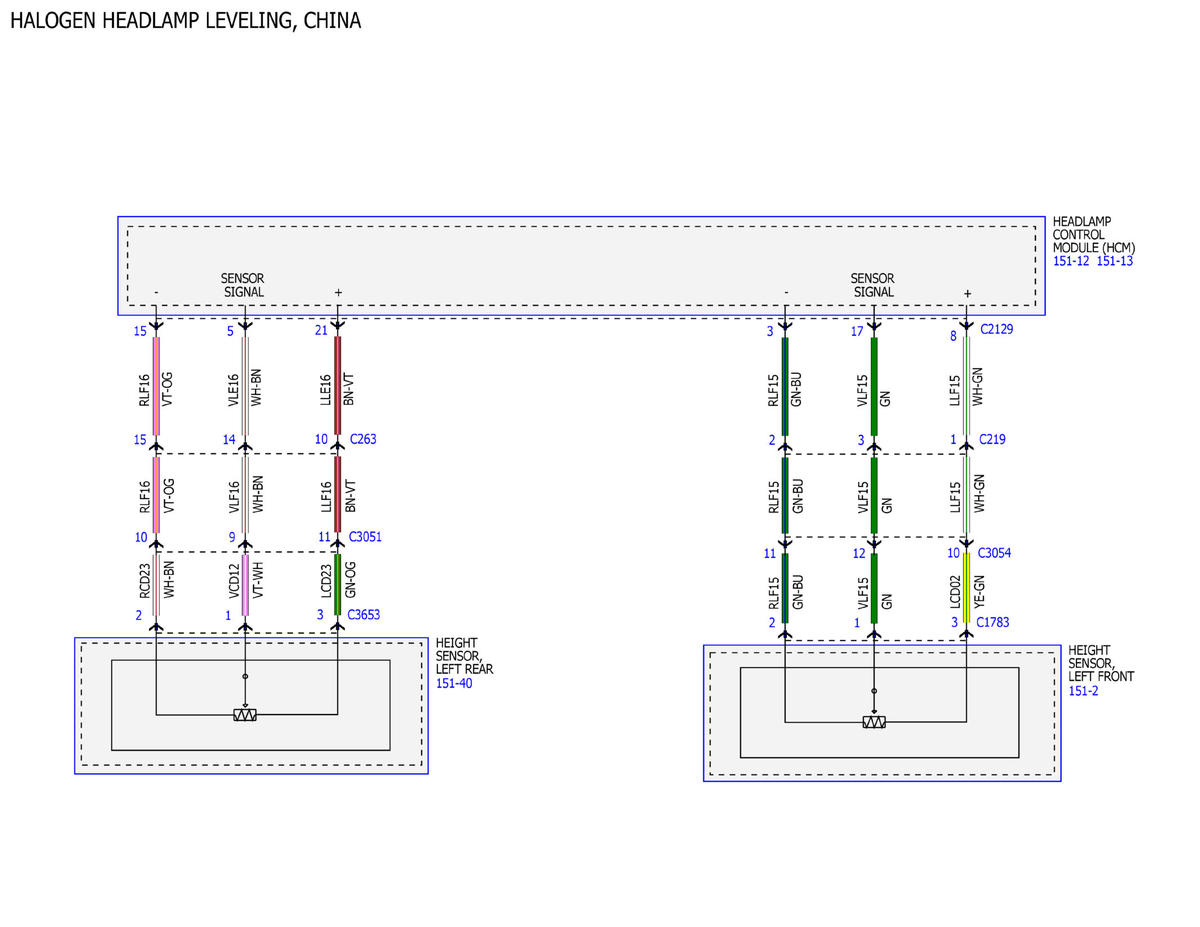

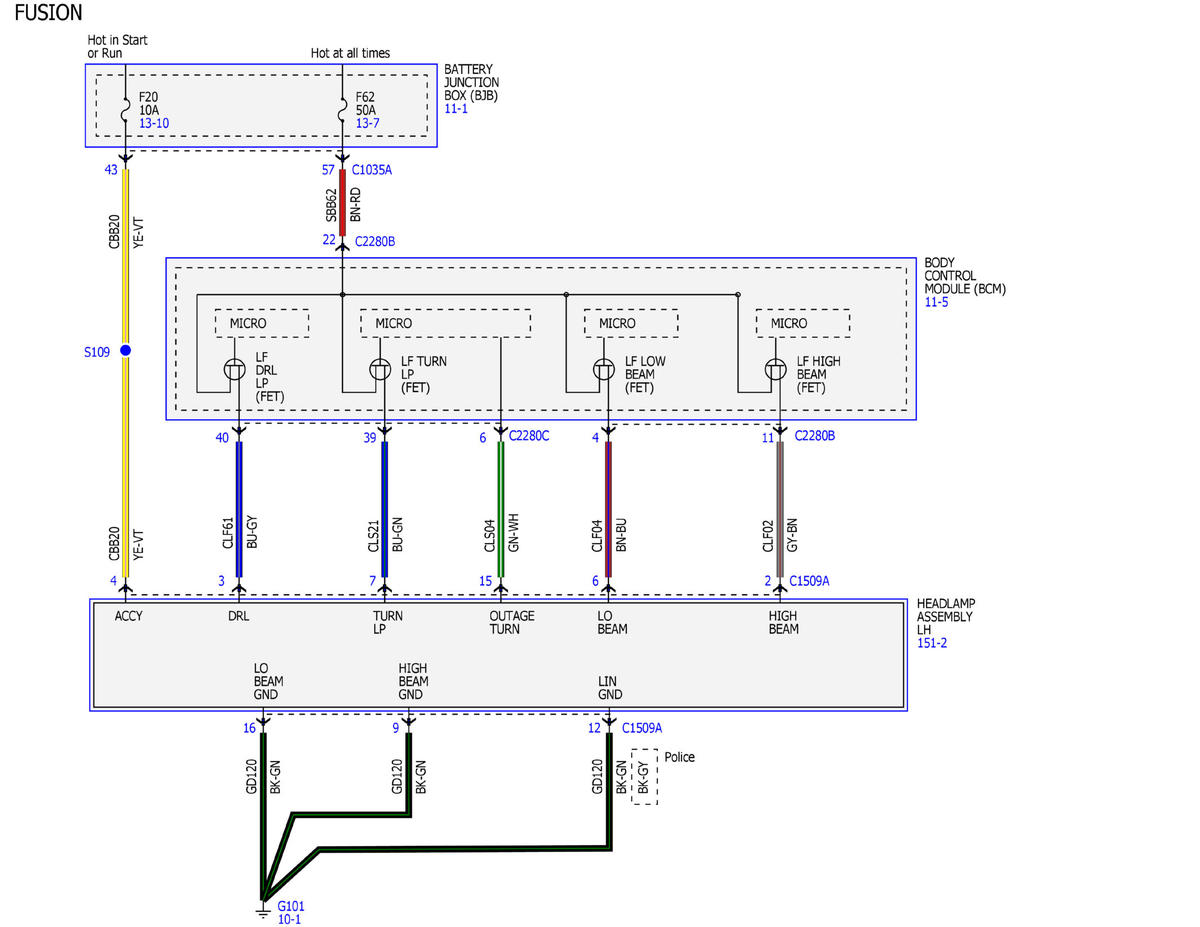

Fig 1: Headlamps/Autolamps Wiring Diagram (1 Of 10)

Courtesy of FORD MOTOR COMPANY

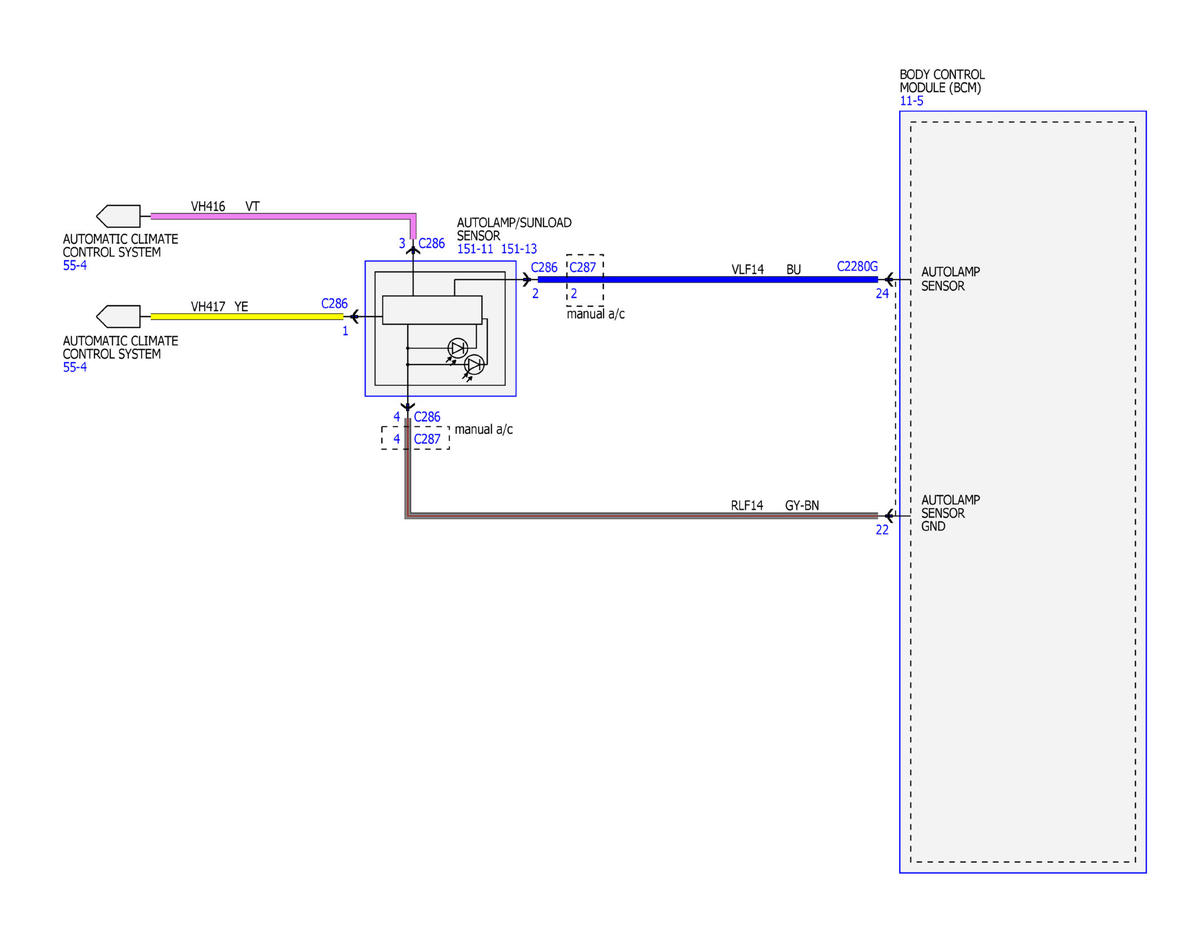

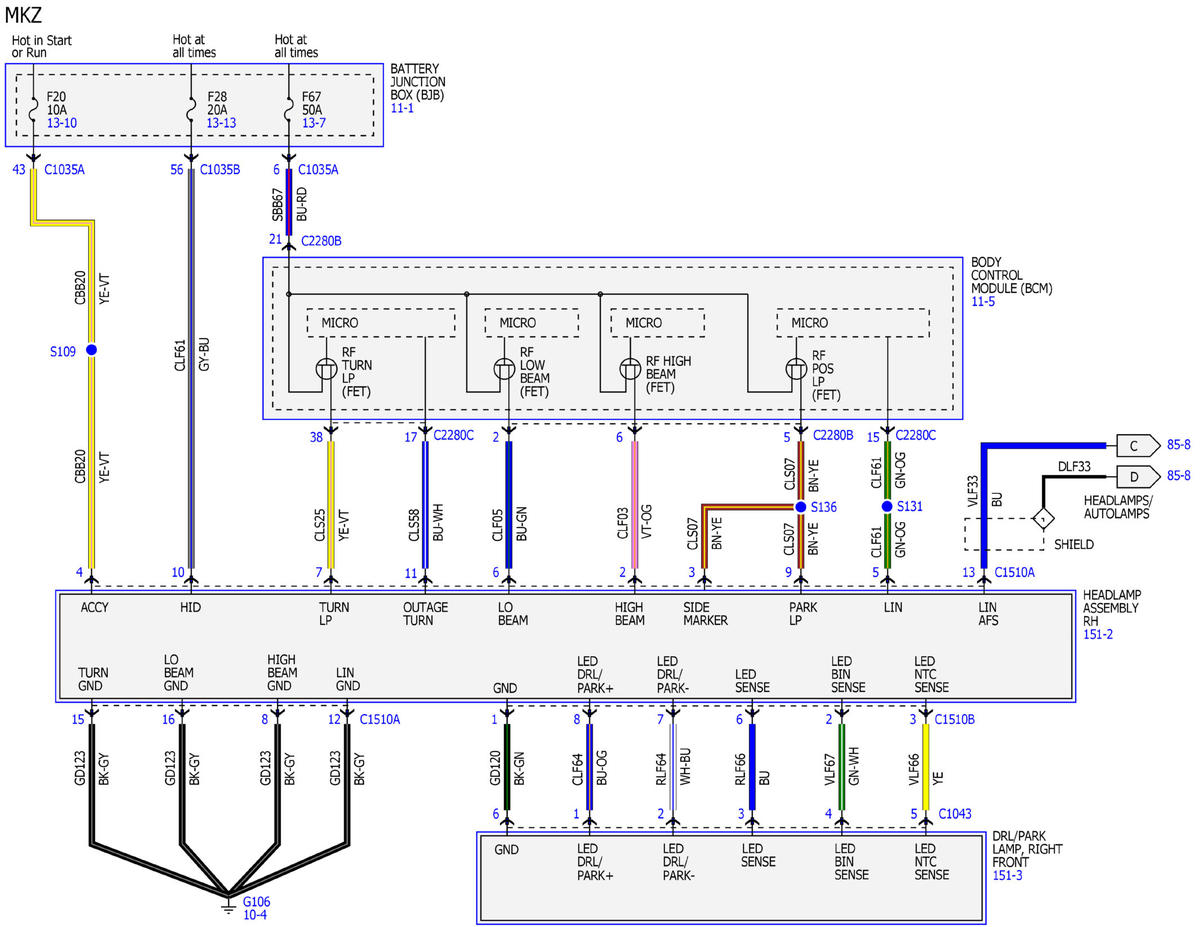

Fig 2: Headlamps/Autolamps Wiring Diagram (2 Of 10)

Courtesy of FORD MOTOR COMPANY

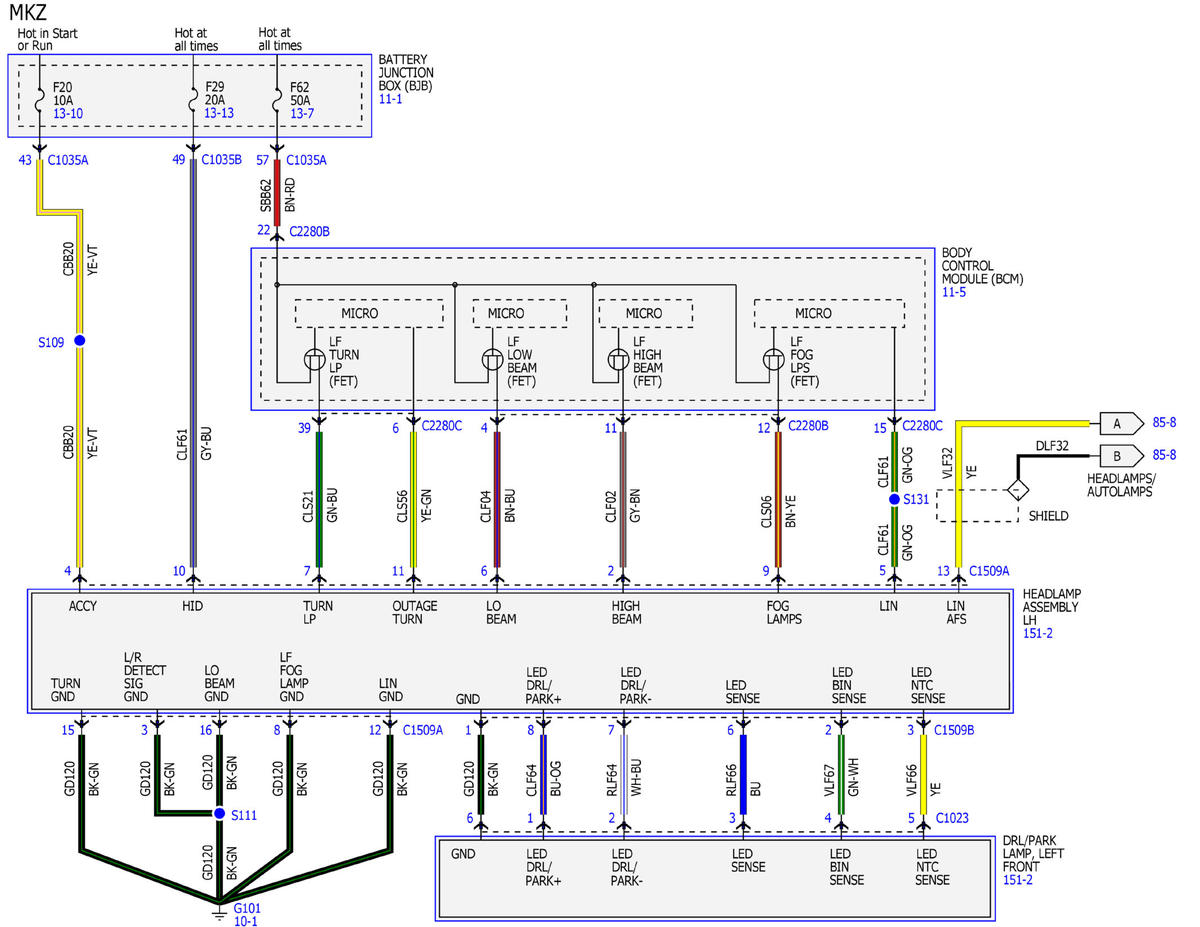

Fig 3: Headlamps/Autolamps Wiring Diagram (3 Of 10)

Courtesy of FORD MOTOR COMPANY

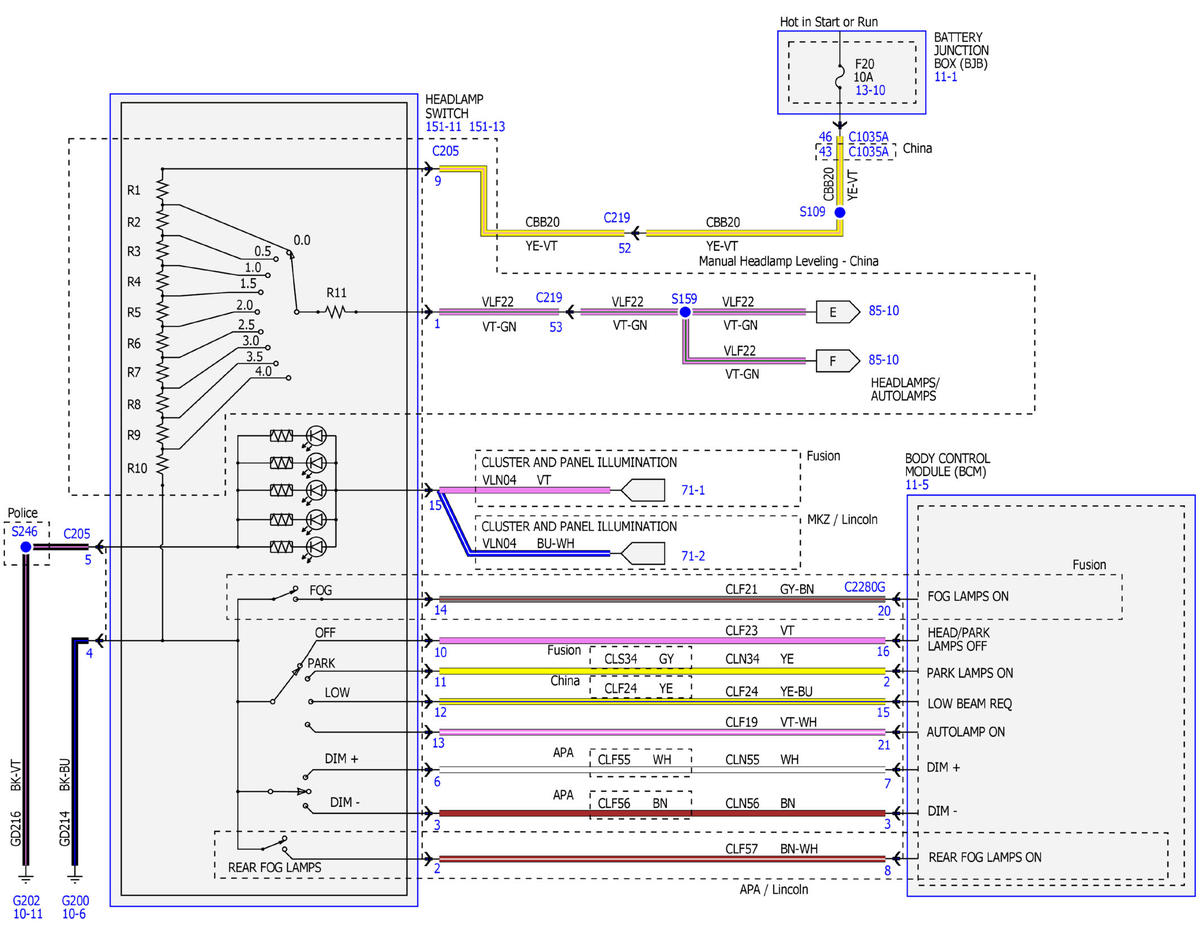

Fig 4: Headlamps/Autolamps Wiring Diagram (4 Of 10)

Courtesy of FORD MOTOR COMPANY

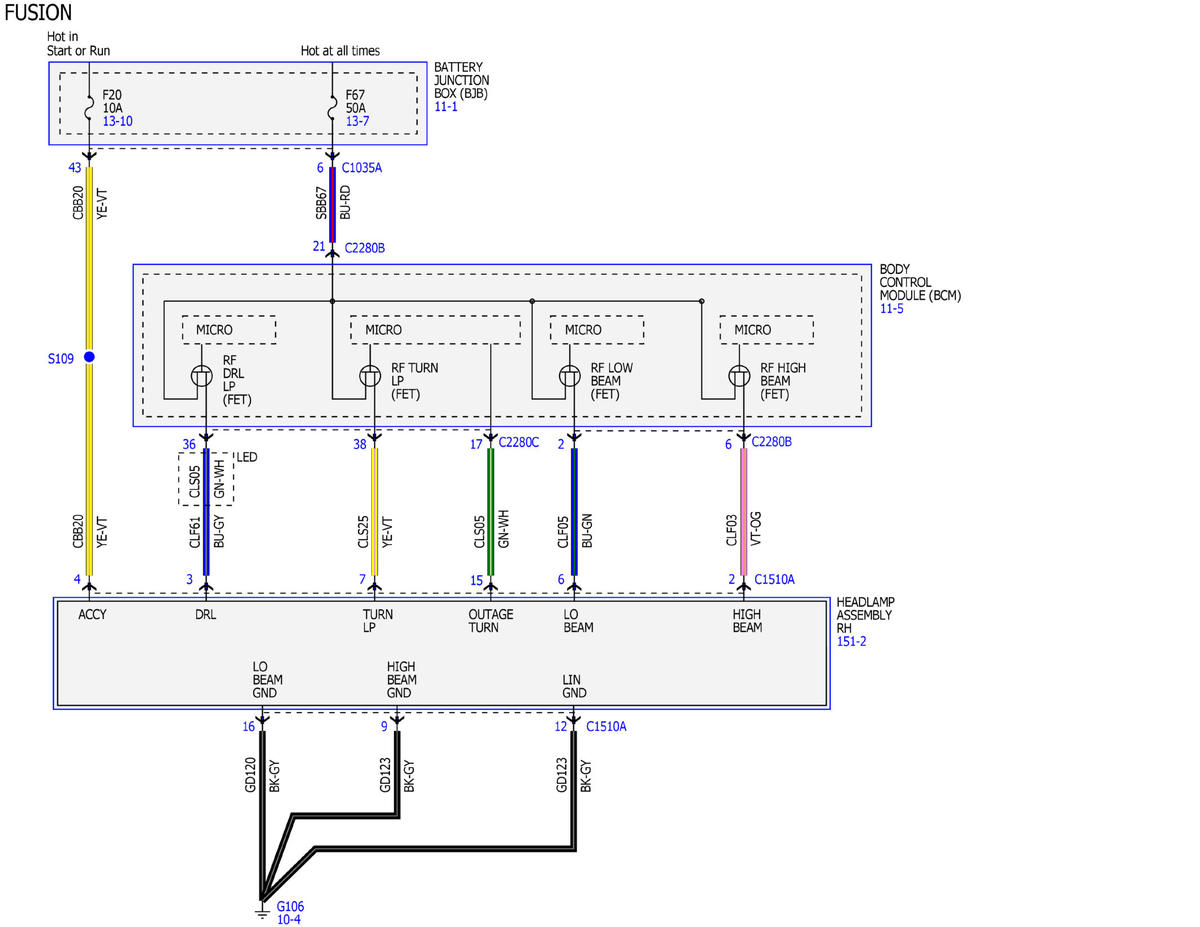

Fig 5: Headlamps/Autolamps Wiring Diagram (5 Of 10)

Courtesy of FORD MOTOR COMPANY

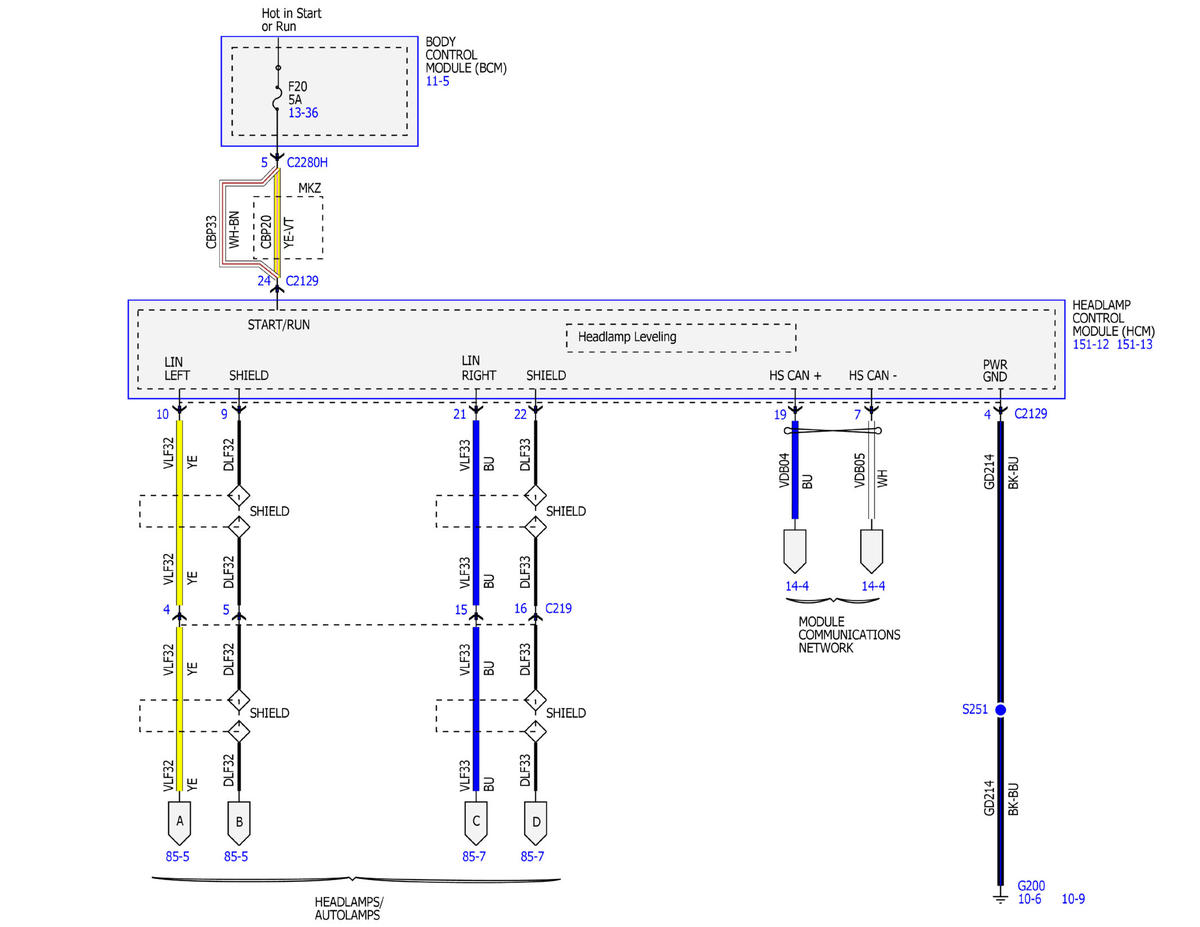

Fig 6: Headlamps/Autolamps Wiring Diagram (6 Of 10)

Courtesy of FORD MOTOR COMPANY

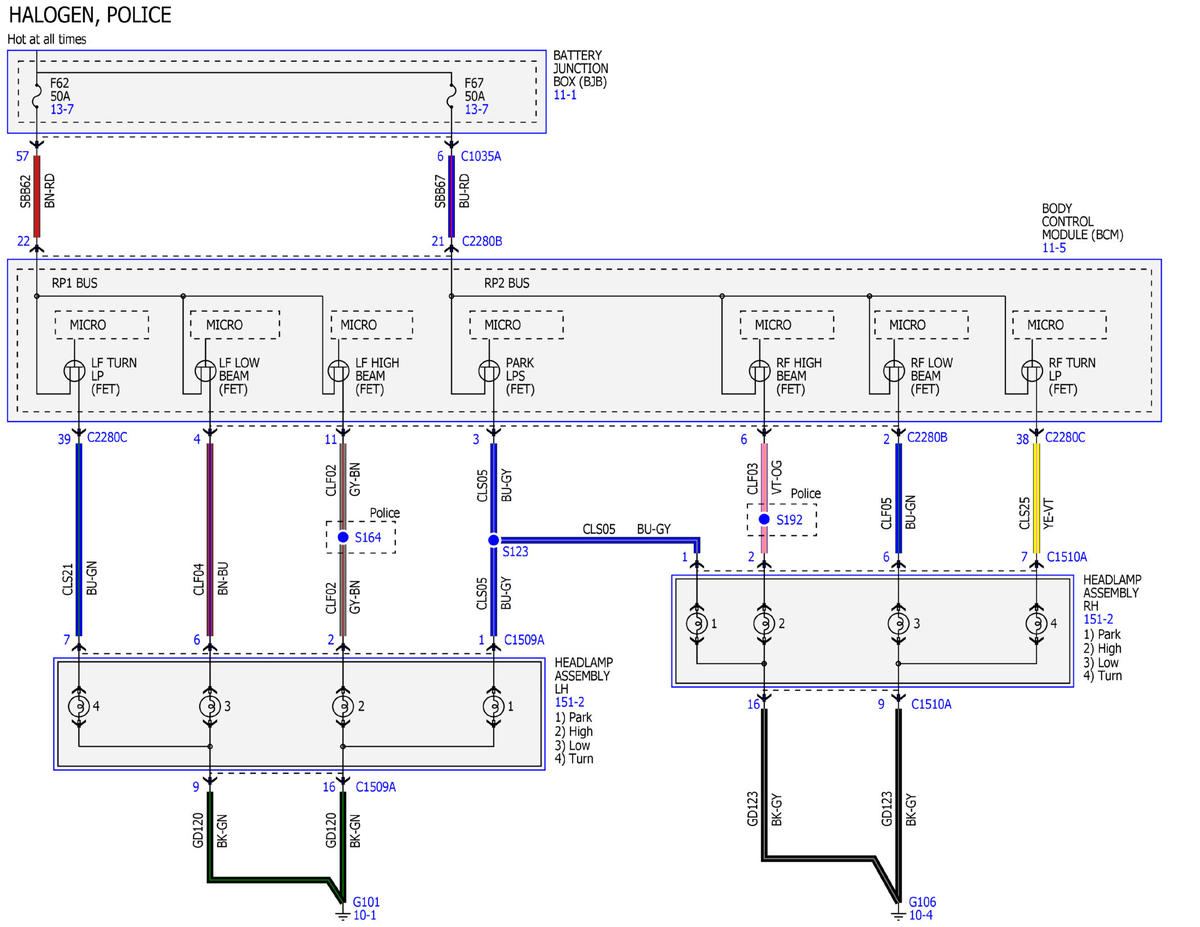

Fig 7: Headlamps/Autolamps Wiring Diagram (7 Of 10)

Courtesy of FORD MOTOR COMPANY

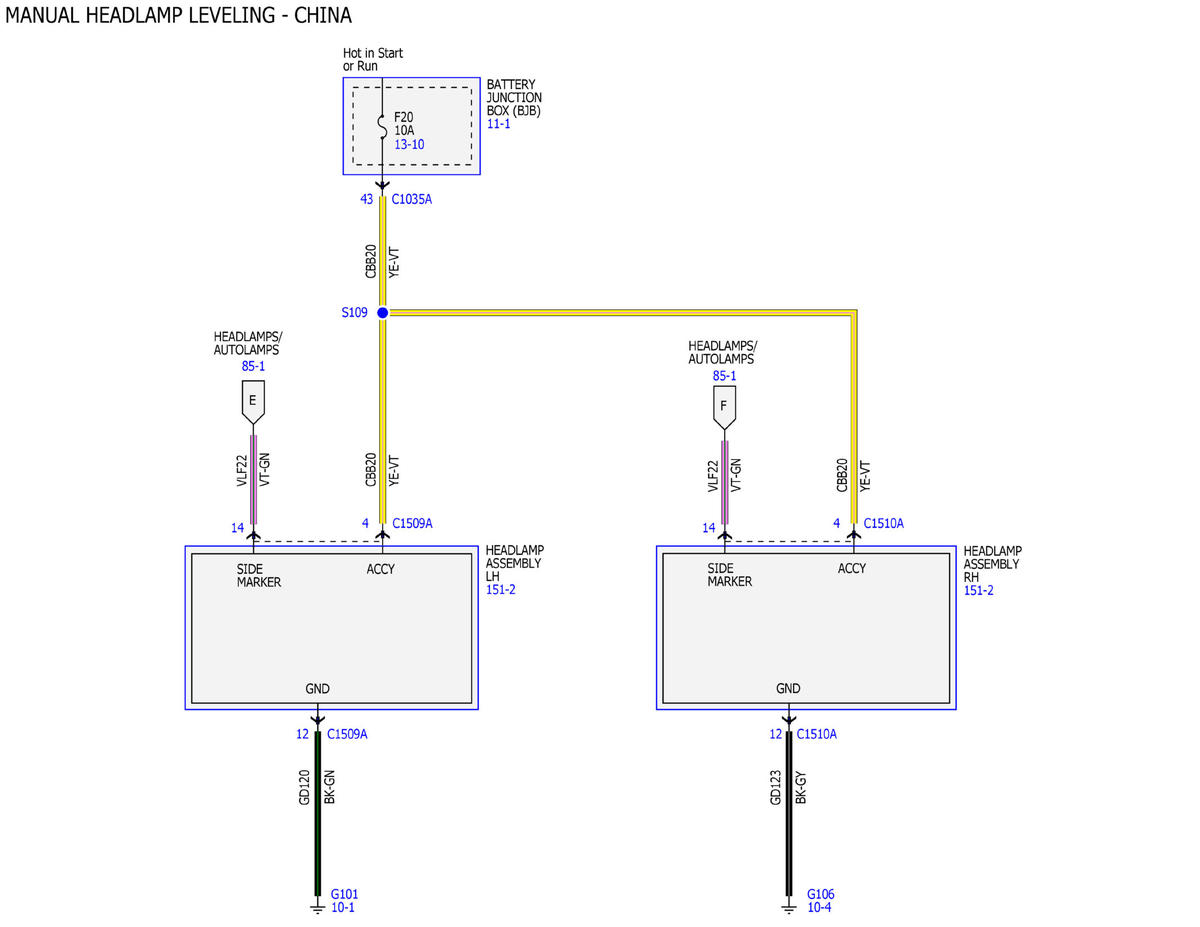

Fig 8: Headlamps/Autolamps Wiring Diagram (8 Of 10)

Courtesy of FORD MOTOR COMPANY

Fig 9: Headlamps/Autolamps Wiring Diagram (9 Of 10)

Courtesy of FORD MOTOR COMPANY

Fig 10: Headlamps/Autolamps Wiring Diagram (10 Of 10)

Courtesy of FORD MOTOR COMPANY
