Brake Vacuum Sensor: Removal

WARNING: This page is about a different car, the 2019 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.

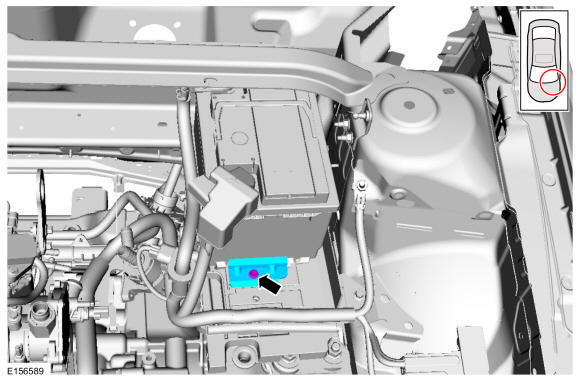

  1. Remove the battery hold down bolt and plate.

    Torque: 89 lb.in (10 Nm)

    GFD397403Courtesy of FORD MOTOR COMPANY

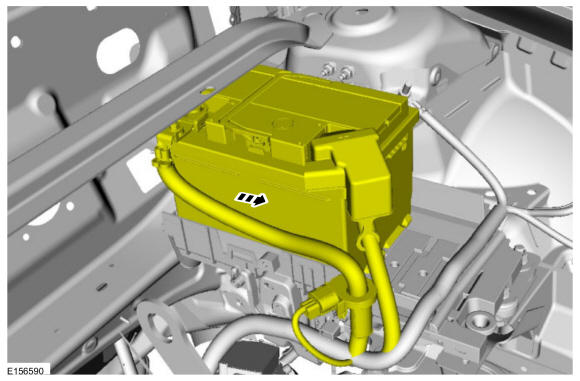

  2. Position the battery forward.
    GFD397404Courtesy of FORD MOTOR COMPANY

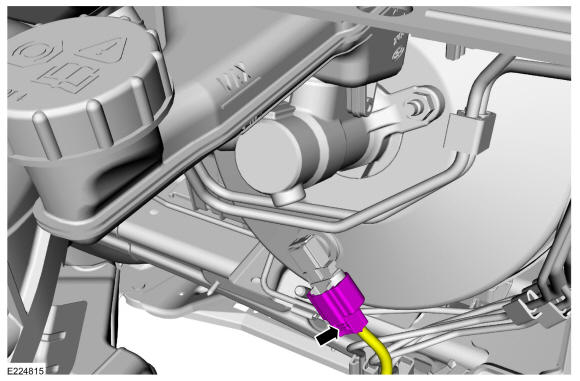

  3. Disconnect the brake vacuum sensor electrical connector.
    GFD397405Courtesy of FORD MOTOR COMPANY

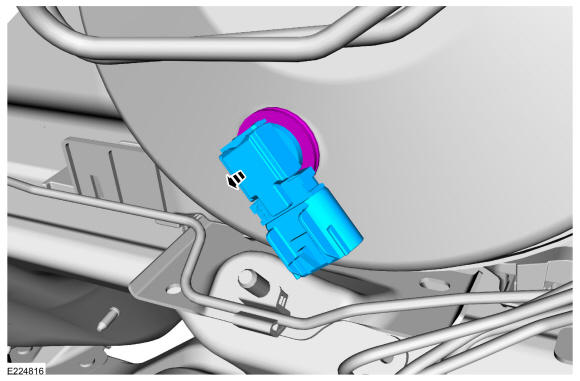

  4. Remove the brake vacuum sensor.
GFD397406Courtesy of FORD MOTOR COMPANY
