Instrument Cluster

Fig 1: Instrument Cluster Wiring Diagram (1 Of 5)
GFDWR89564Courtesy of FORD MOTOR COMPANY
Fig 2: Instrument Cluster Wiring Diagram (2 Of 5)
GFDWR89565Courtesy of FORD MOTOR COMPANY

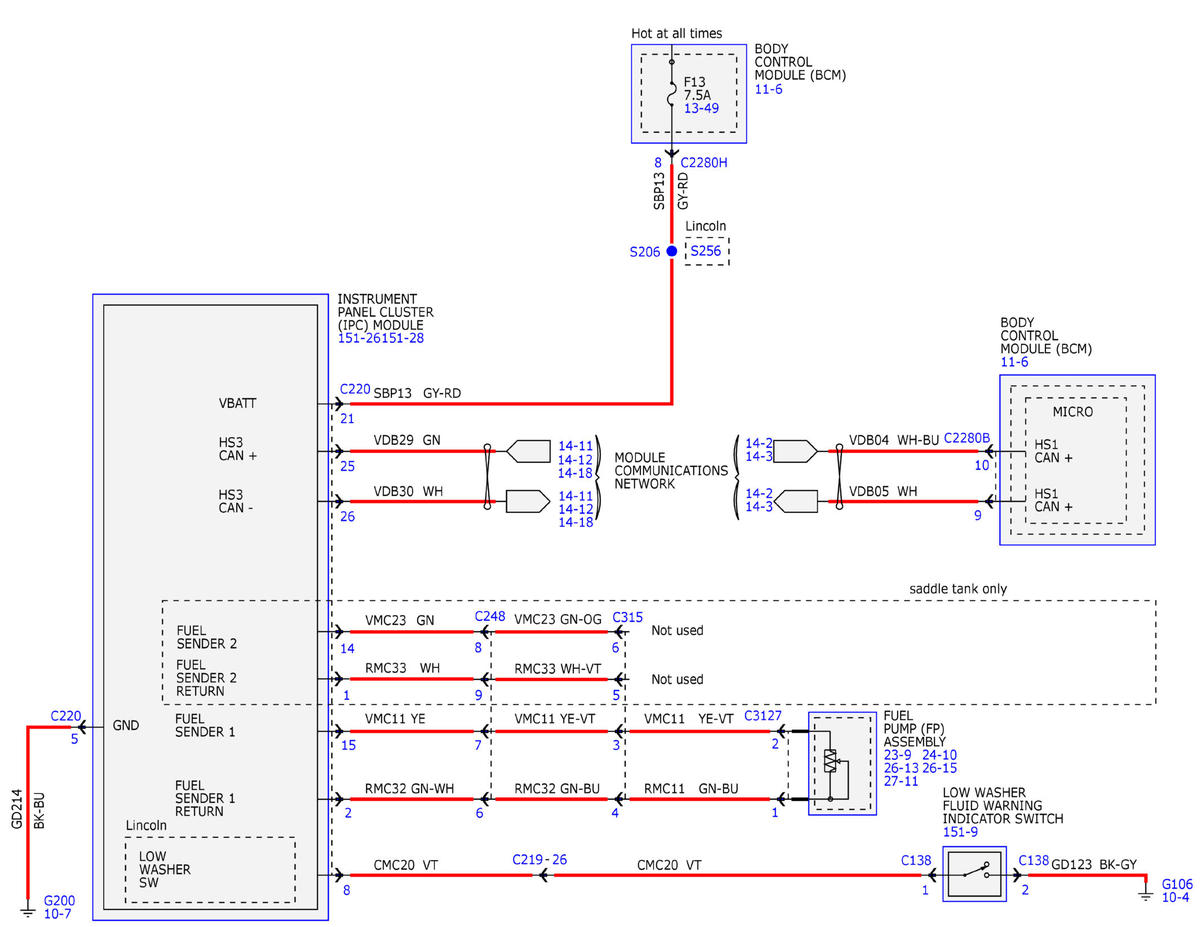

Fig 3: Instrument Cluster Wiring Diagram (3 Of 5)
GFDWR89566Courtesy of FORD MOTOR COMPANY

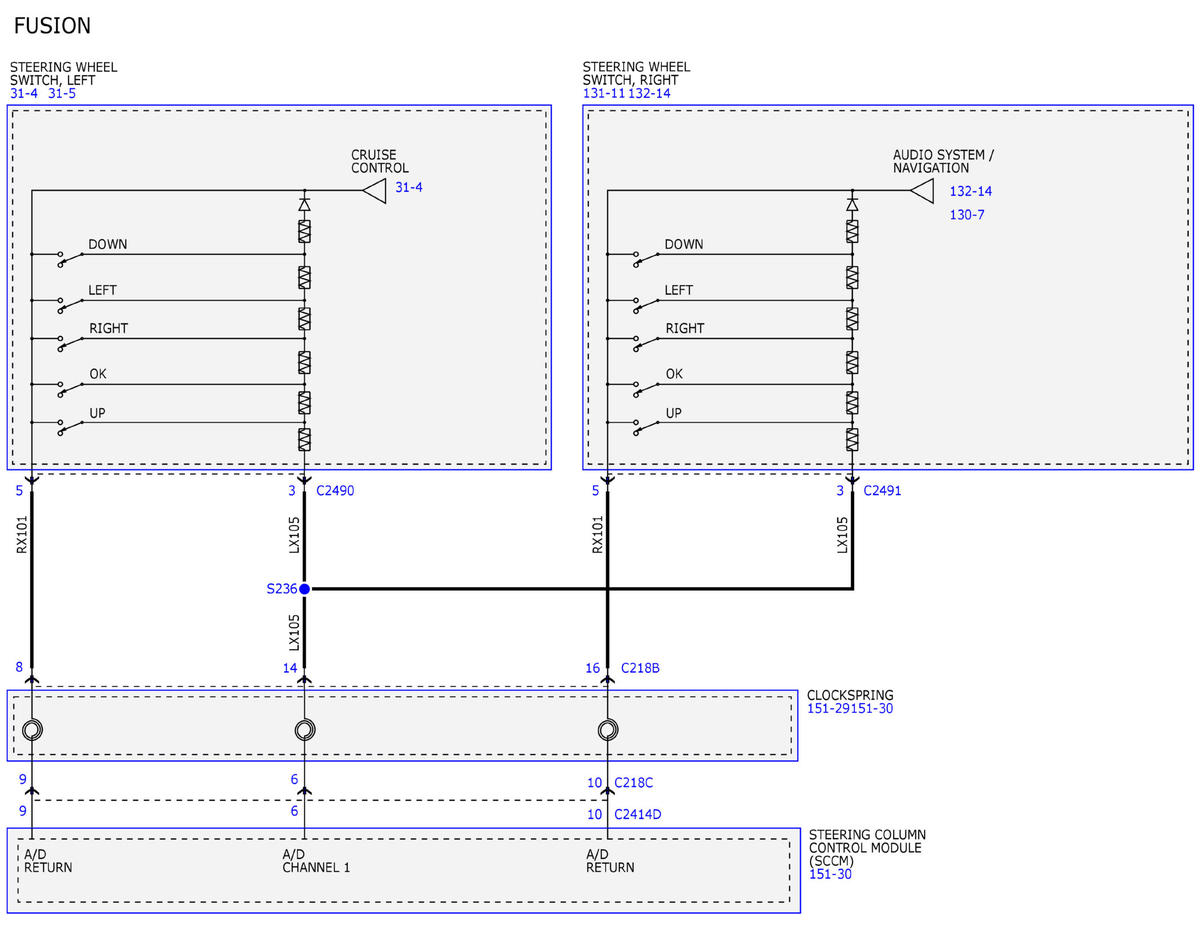

Fig 4: Instrument Cluster Wiring Diagram (4 Of 5)
GFDWR89567Courtesy of FORD MOTOR COMPANY

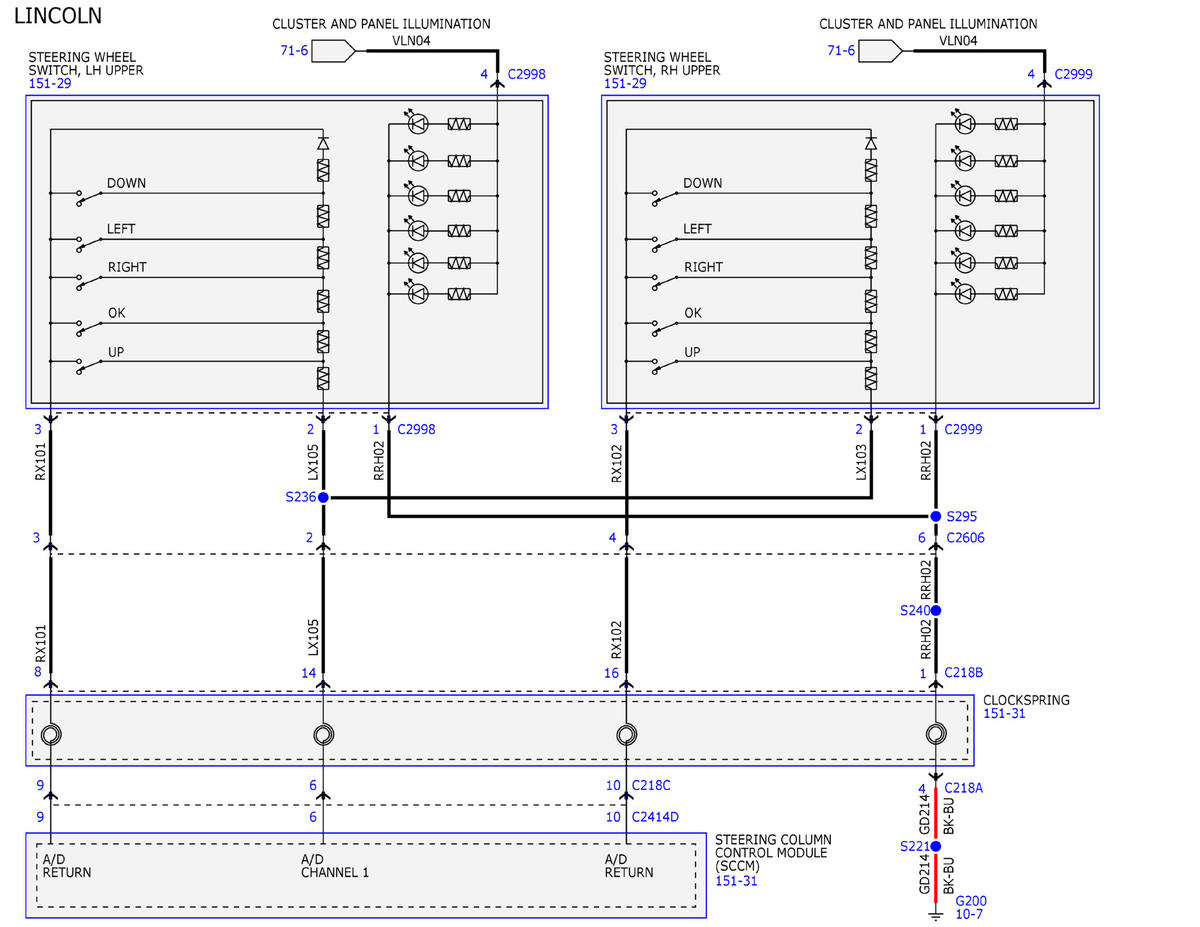

Fig 5: Instrument Cluster Wiring Diagram (5 Of 5)
GFDWR89568Courtesy of FORD MOTOR COMPANY
