Removal And Installation: Spring: Installation

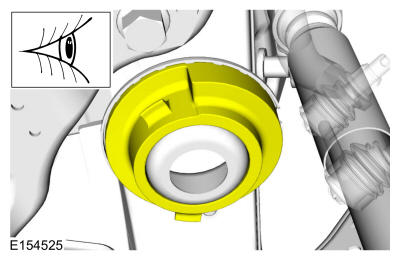

  1. Visual check. Check the upper spring seat for damage. Replace as necessary.
    GFD501316Courtesy of FORD MOTOR COMPANY

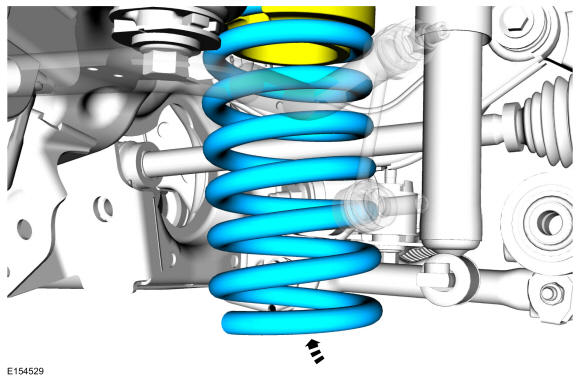

  2. Install the spring.
    GFD501317Courtesy of FORD MOTOR COMPANY

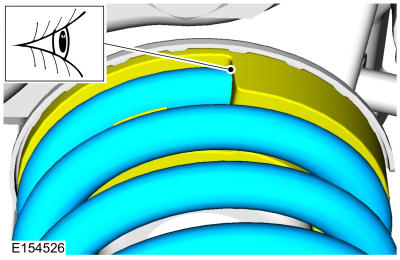

  3. NOTE: Make sure that the spring is correctly located in the upper spring seat.

    Visual check. Align the spring in the upper spring seat.

    GFD501318Courtesy of FORD MOTOR COMPANY
  4. Install the lower arm. Refer to: Lower Arm .
