Parking Brake Switch: Removal

NOTE: Removal steps in this procedure may contain installation details.

Open the floor console stowage bin lid.

Courtesy of FORD MOTOR COMPANY
On both sides. Detach the clips and remove the floor console upper side finish panels.

Courtesy of FORD MOTOR COMPANY
Detach the clips and remove the instrument panel center finish panel.

Courtesy of FORD MOTOR COMPANY

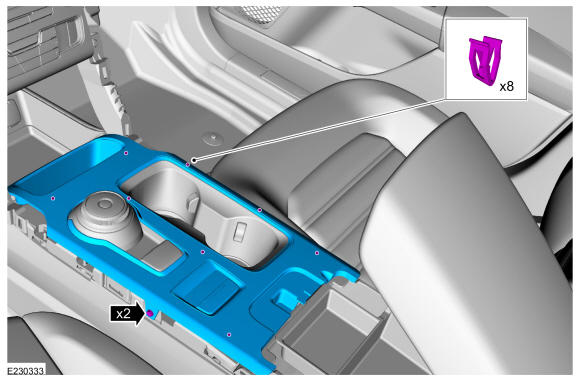

Remove the screws, detach the clips and remove the upper floor console finish panel.

Courtesy of FORD MOTOR COMPANY

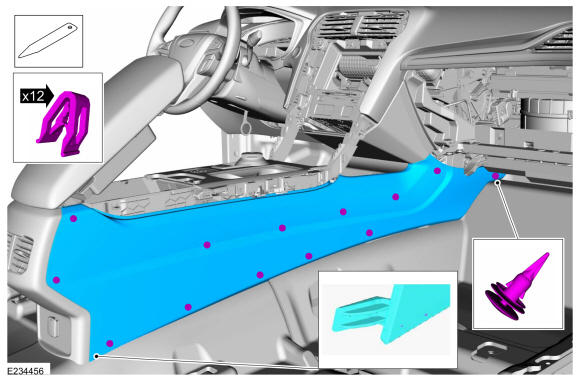

NOTE: RH side shown, LH side similar.

On both sides. Release the push pin, clips starting from front to rear. Disengage the finger tab at the bottom rear corner and remove the floor console side trim panel. Use the General Equipment: Interior Trim Remover

Courtesy of FORD MOTOR COMPANY

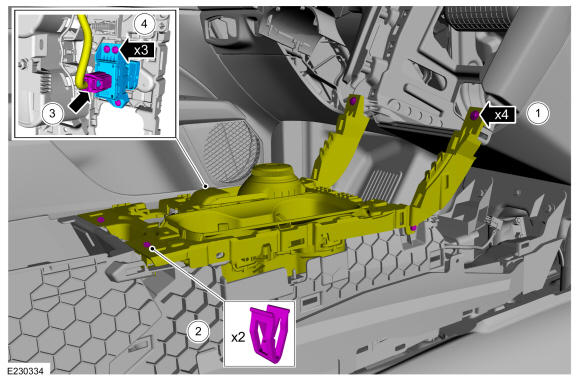

1. Remove the screws.
2. Detach the clips and position the floor console upper support to access the parking brake switch.
3. Disconnect the electrical connector.
4. Remove the parking brake switch.

Courtesy of FORD MOTOR COMPANY
