Brake Vacuum Pump: Removal

NOTE: Removal steps in this procedure may contain installation details.

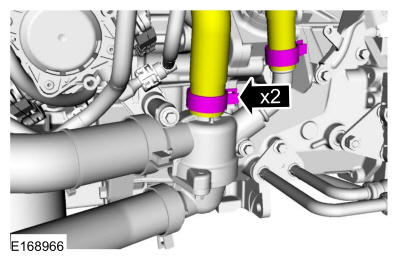

  1. Refer to: Cooling Fan Motor and Shroud .
    GFD501464Courtesy of FORD MOTOR COMPANY

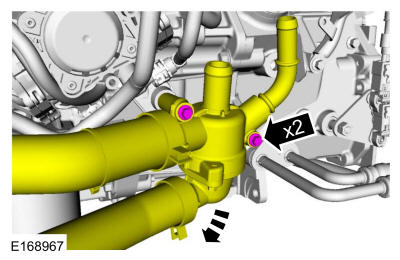

  2. Torque: 89 lb.in (10 Nm)
    GFD501465Courtesy of FORD MOTOR COMPANY

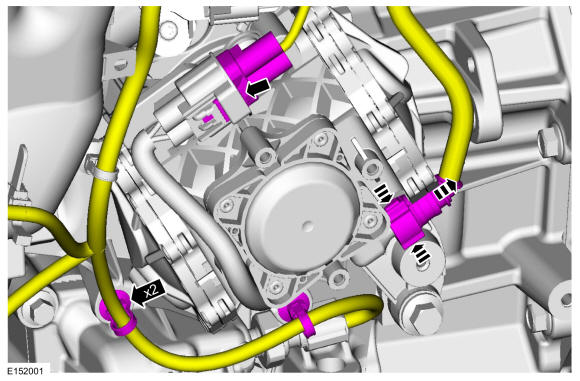

  3. GFD501466Courtesy of FORD MOTOR COMPANY

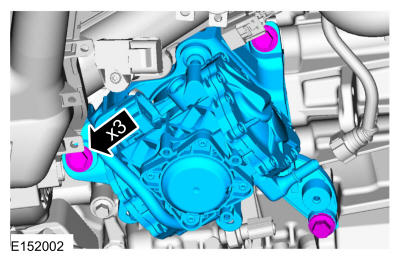

  4. Torque: 35 lb.ft (48 Nm)
    GFD501467Courtesy of FORD MOTOR COMPANY

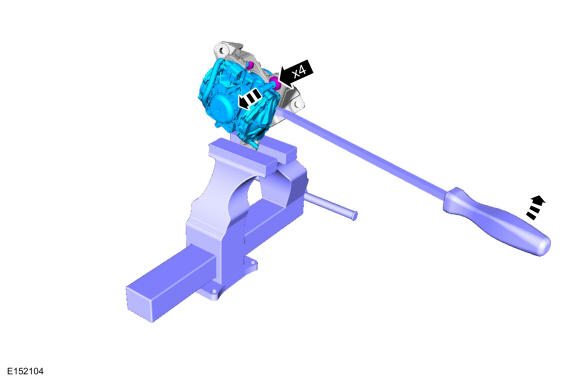

  5. Use the General Equipment: Vise
    GFD501468Courtesy of FORD MOTOR COMPANY
