Overhead Console: Removal

NOTE: Removal steps in this procedure may contain installation details.

NOTE: Consoles look different depending on option level.

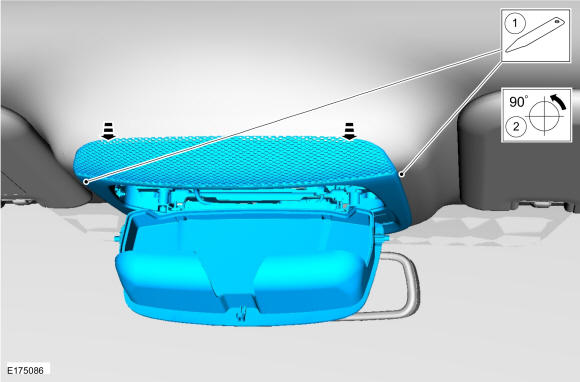

1. Insert trim tool in location(s) shown.
2. Rotate the tool 90 degrees to release the overhead console rear retainers.
Courtesy of FORD MOTOR COMPANY

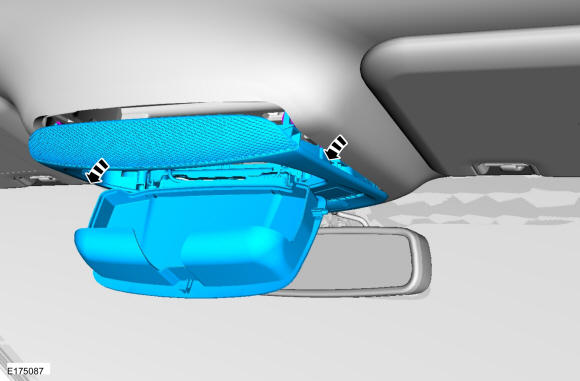

Working from the rear to the front along each side release the overhead console retainers.

Courtesy of FORD MOTOR COMPANY

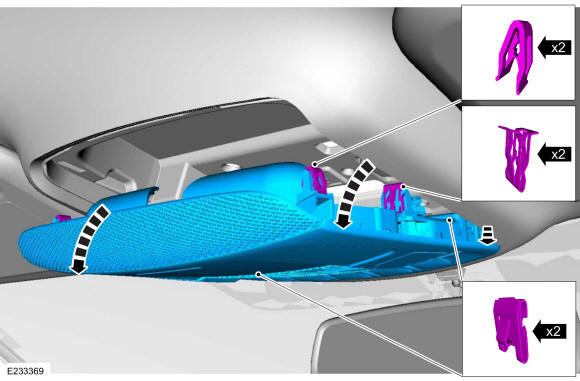

Rotate to release the clips and remove the overhead console.

Courtesy of FORD MOTOR COMPANY

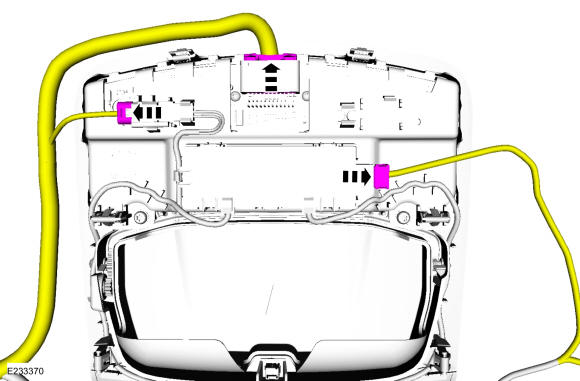

Disconnect the electrical connectors.

Courtesy of FORD MOTOR COMPANY
