Parking Aid - Component Location
WARNING: This page is about a different car, the 2019 Ford Police Interceptor Utility and 2019 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

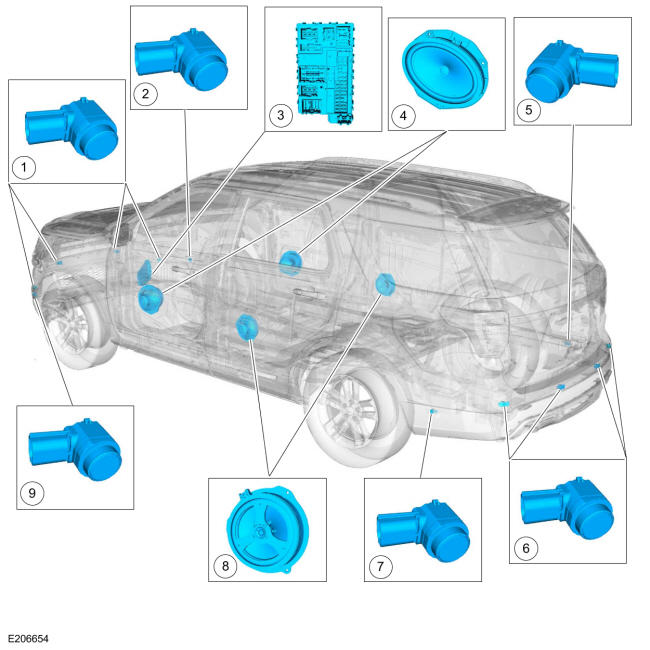

Component Location, Parking Aid - Audible
| Item | Description |
|---|---|
| 1 | Front parking aid sensors |
| 2 | RHF active park assist sensor |
| 3 | PAM part of the BCM |
| 4 | Front speakers (part of audio system) |
| 5 | RHR active park assist sensor |
| 6 | Rear parking aid sensors |
| 7 | LHR active park assist sensor |
| 8 | Rear speakers (part of audio system) |
| 9 | LHF active park assist sensor |
