Adjustable Pedal

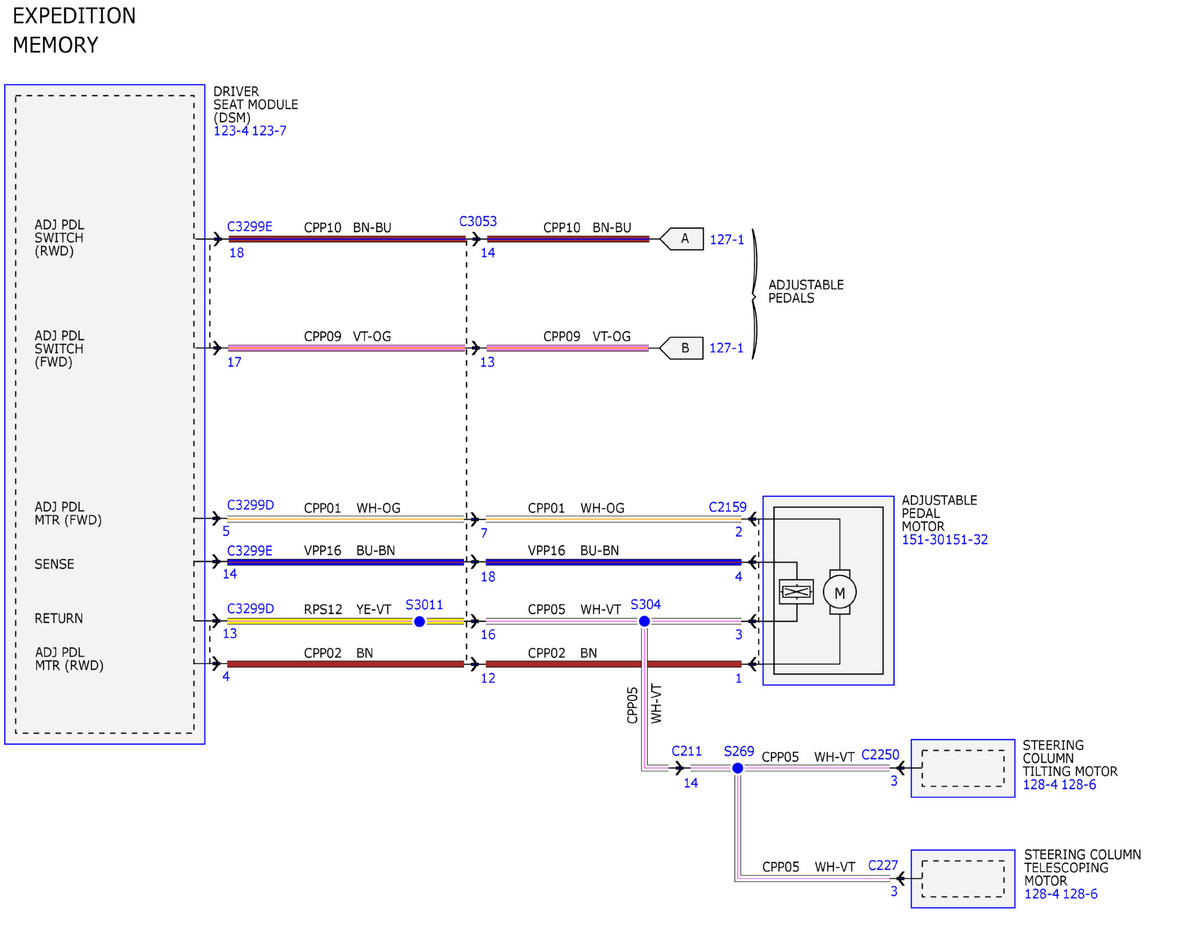

Fig 1: Adjustable Pedal Wiring Diagram (1 Of 8)
GFDWR102609Courtesy of FORD MOTOR COMPANY

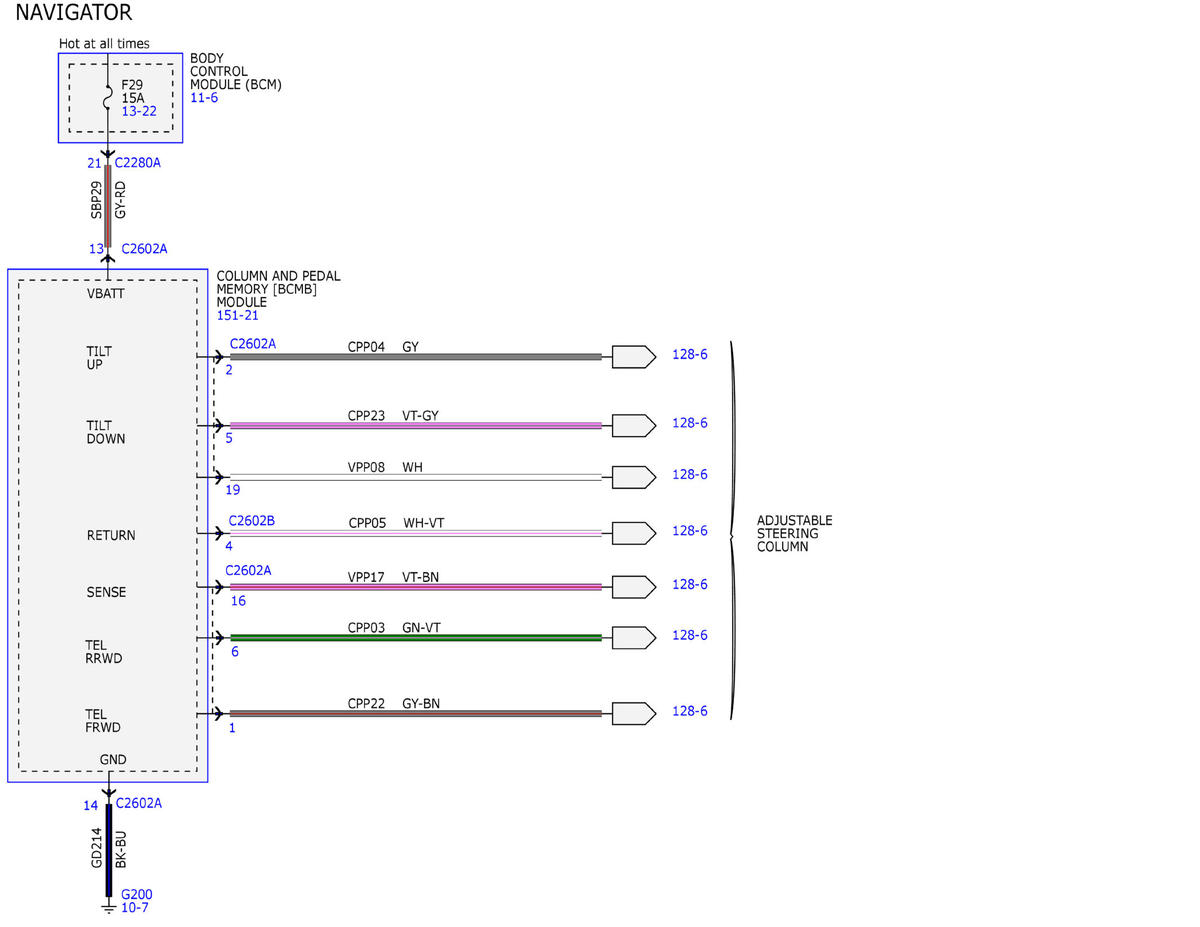

Fig 2: Adjustable Pedal Wiring Diagram (2 Of 8)
GFDWR102610Courtesy of FORD MOTOR COMPANY

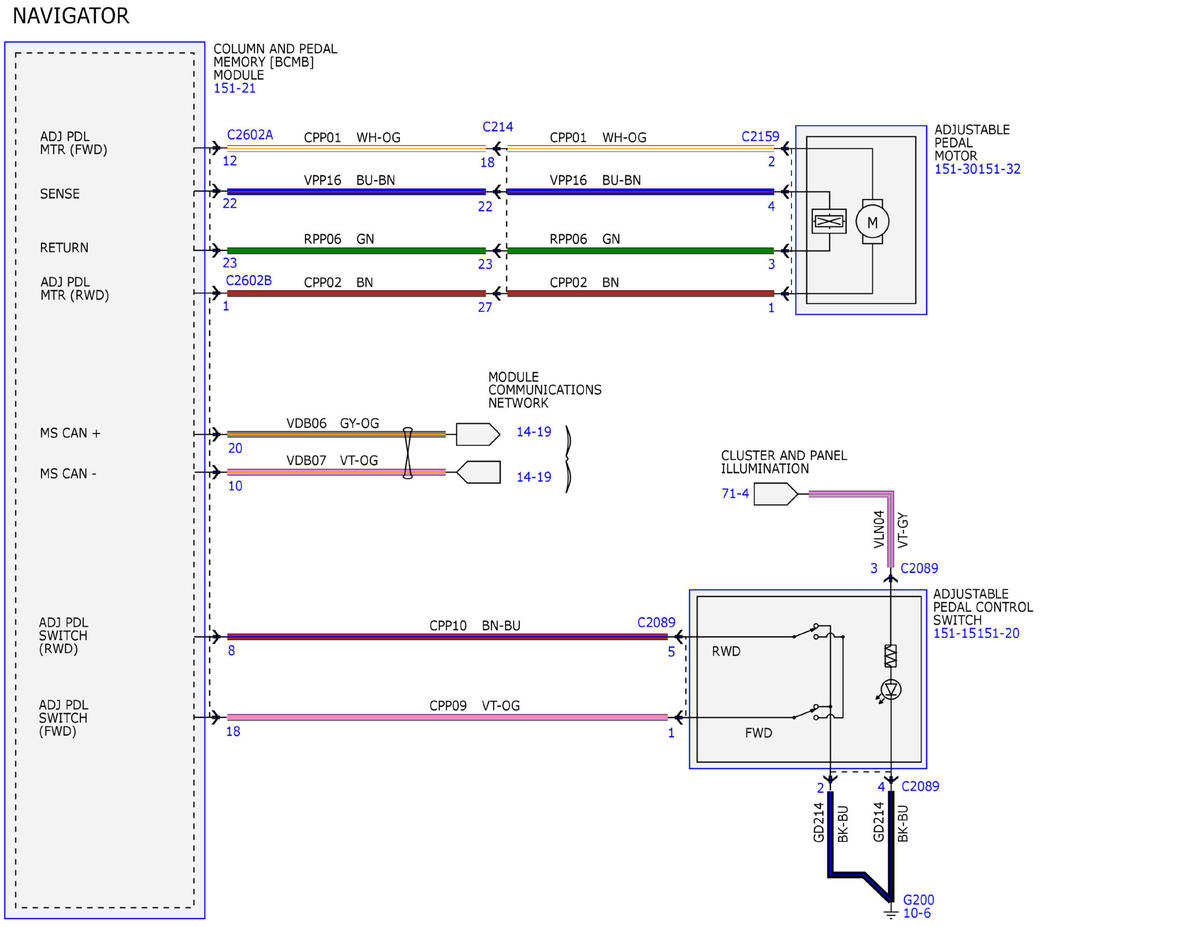

Fig 3: Adjustable Pedal Wiring Diagram (3 Of 8)
GFDWR102611Courtesy of FORD MOTOR COMPANY

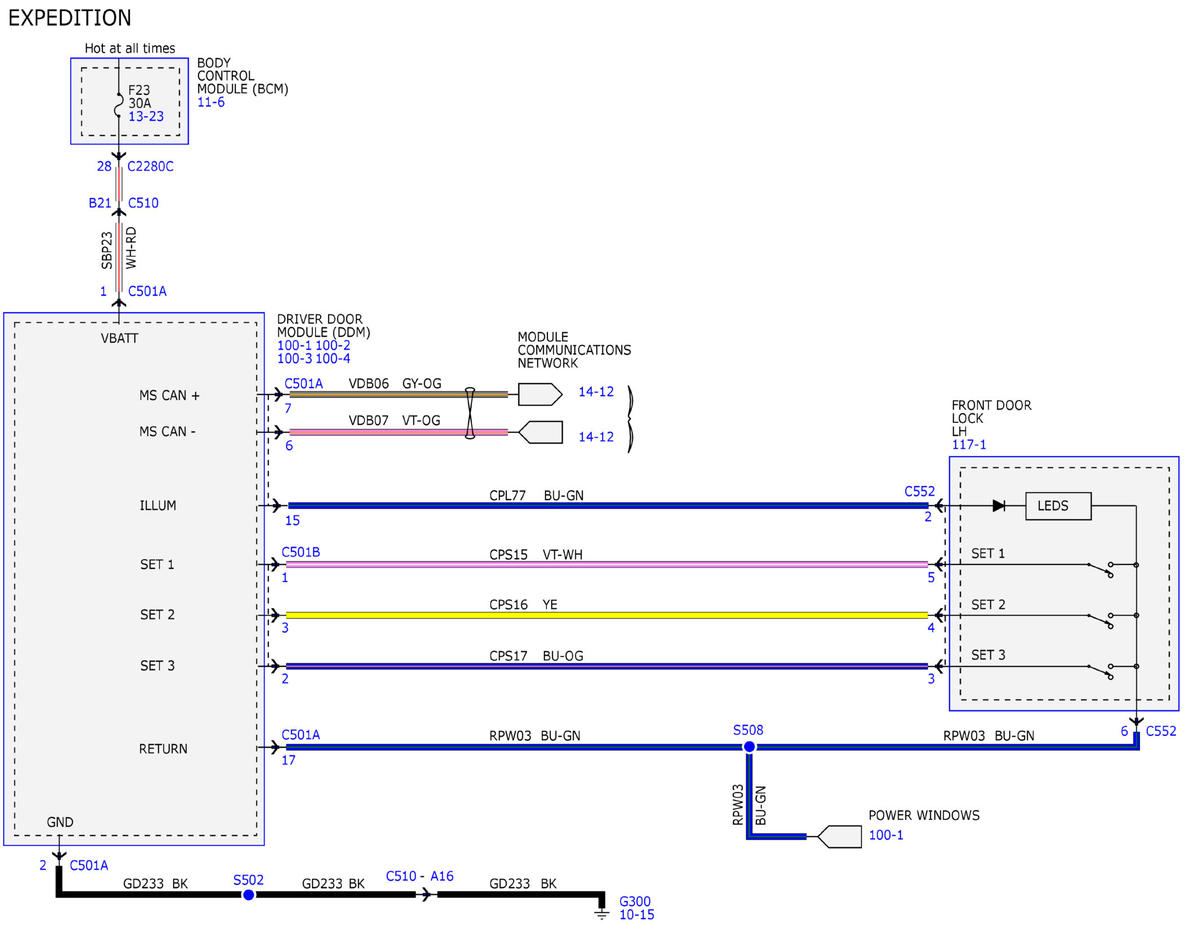

Fig 4: Adjustable Pedal Wiring Diagram (4 Of 8)
GFDWR102612Courtesy of FORD MOTOR COMPANY

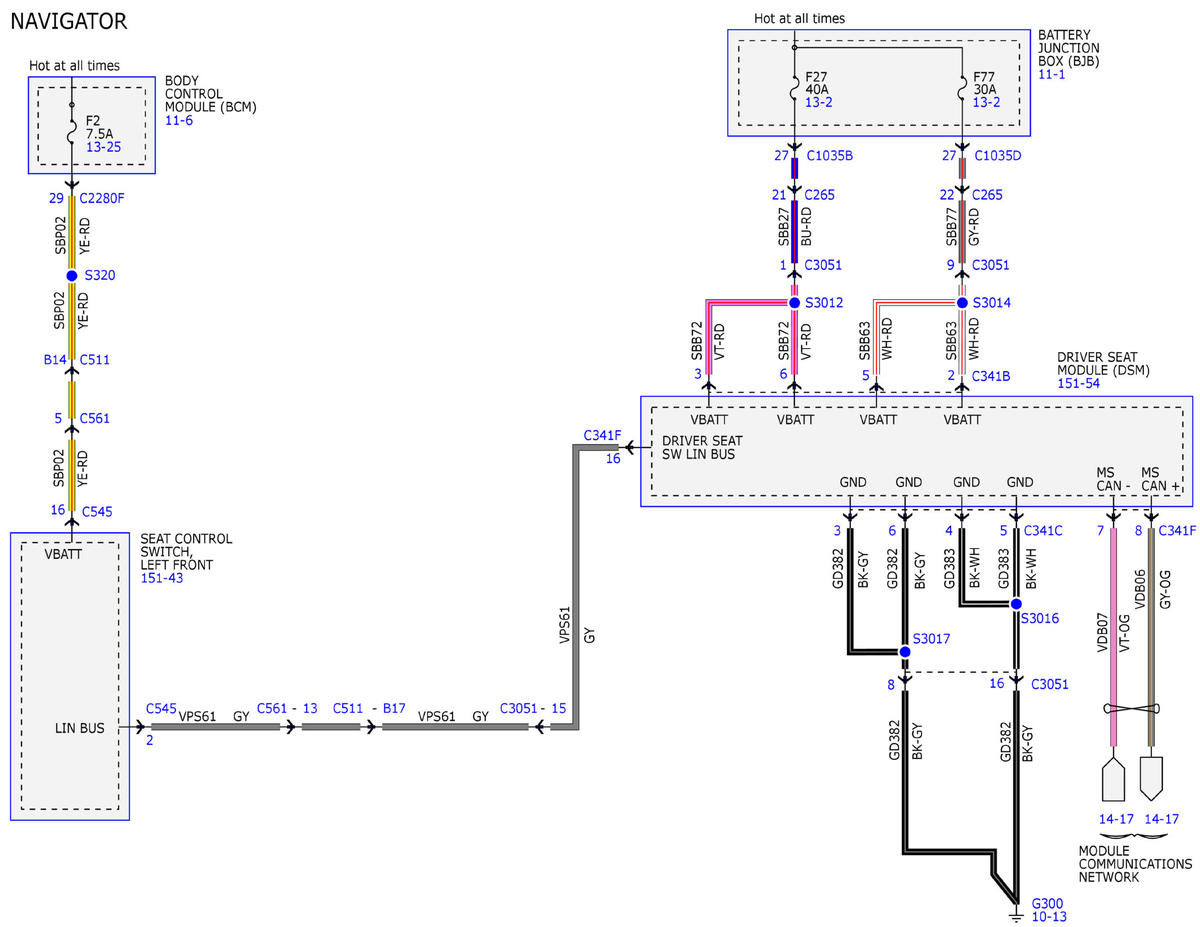

Fig 5: Adjustable Pedal Wiring Diagram (5 Of 8)
GFDWR102613Courtesy of FORD MOTOR COMPANY

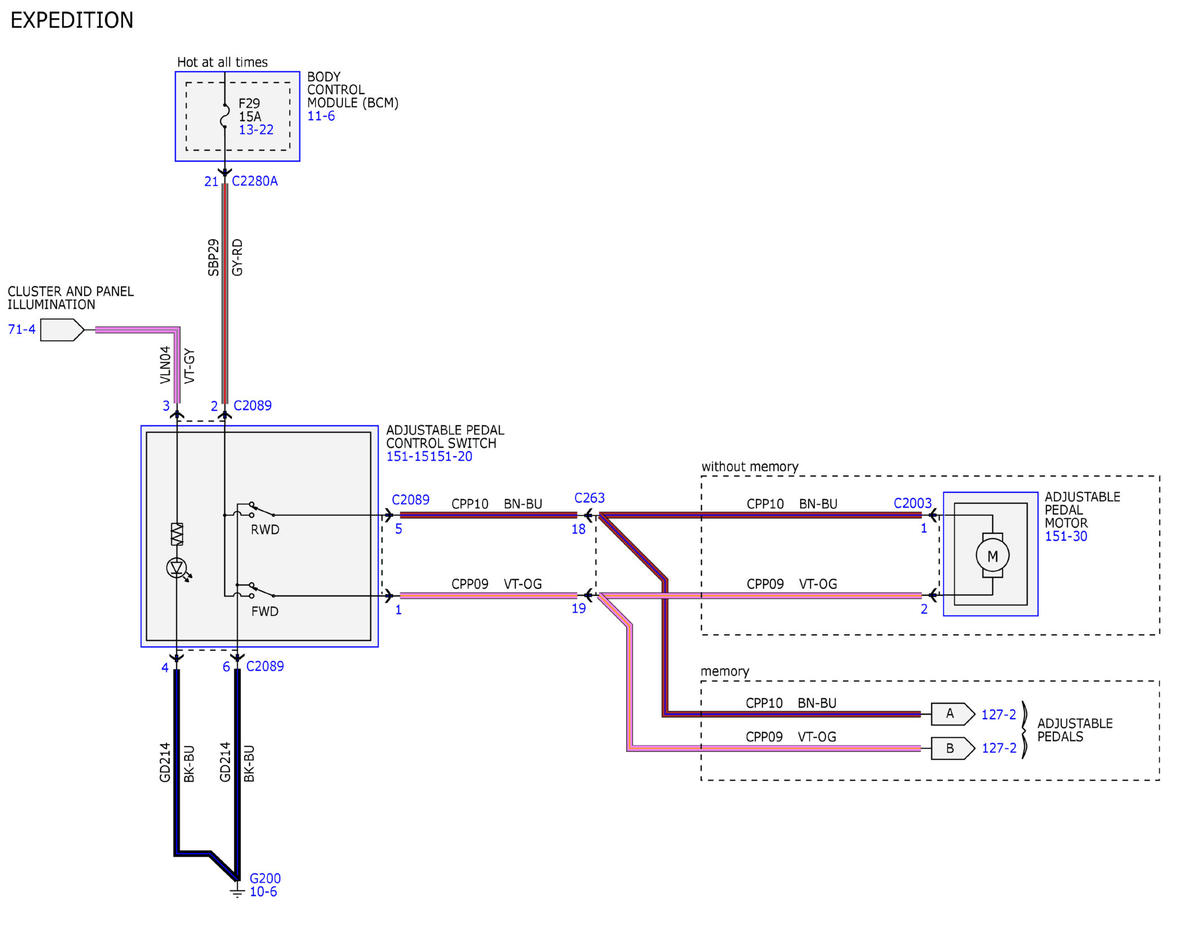

Fig 6: Adjustable Pedal Wiring Diagram (6 Of 8)
GFDWR102614Courtesy of FORD MOTOR COMPANY

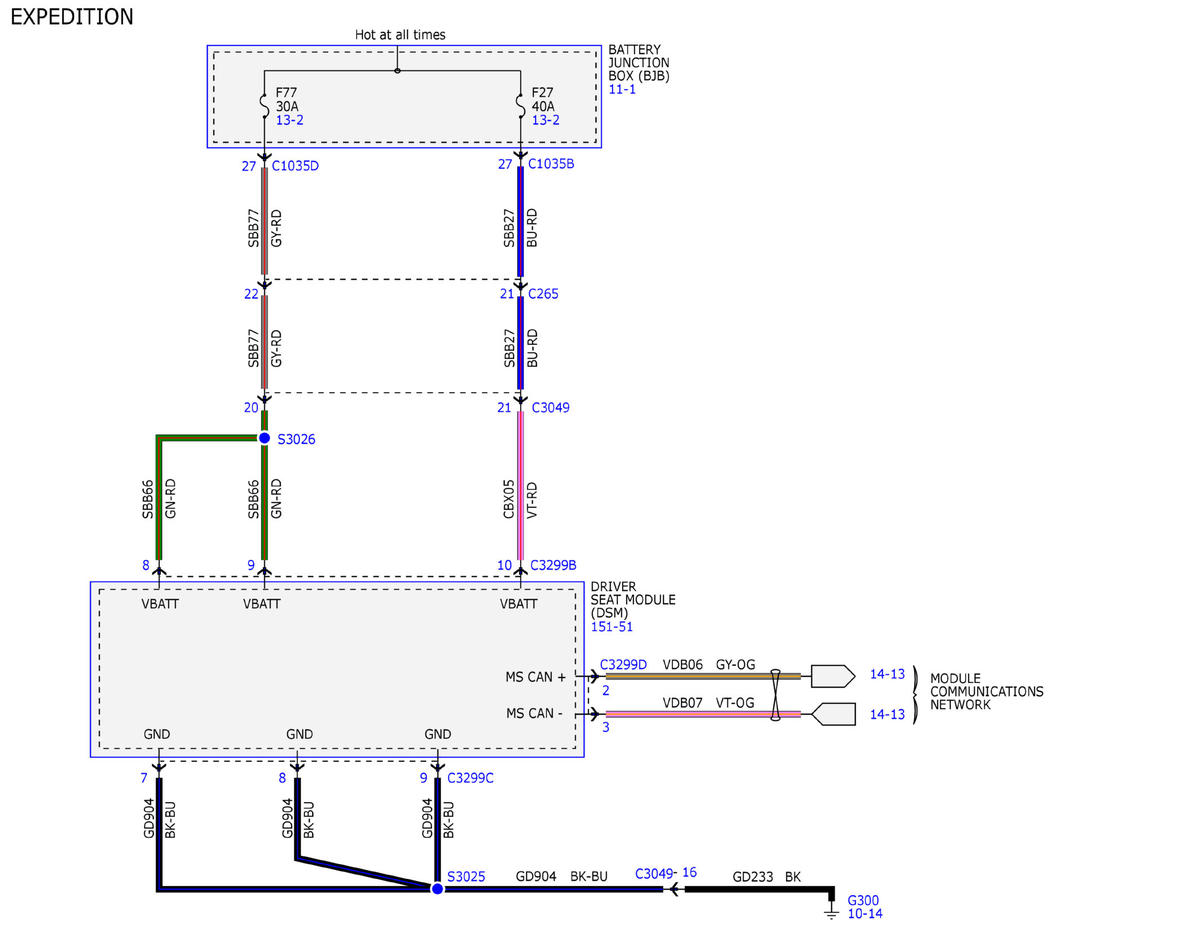

Fig 7: Adjustable Pedal Wiring Diagram (7 Of 8)
GFDWR102615Courtesy of FORD MOTOR COMPANY
Fig 8: Adjustable Pedal Wiring Diagram (8 Of 8)
GFDWR102616Courtesy of FORD MOTOR COMPANY
