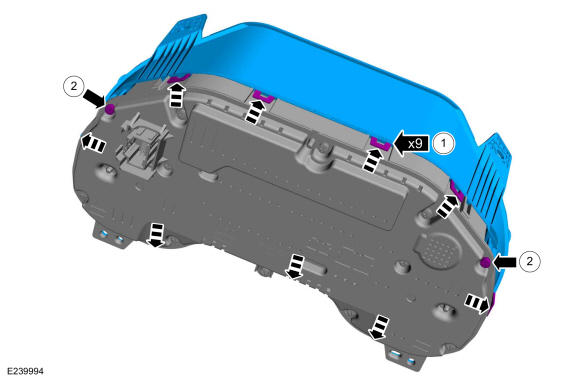

Instrument Panel Cluster (IPC) Lens: Installation

- Install the IPC lens until the tabs have snapped into place.
- Install the screws.
  Torque: 10 lb.in (1.1 Nm)
Courtesy of FORD MOTOR COMPANY
Install the IPC. Refer to: Instrument Panel Cluster (IPC) .
