Adjustable Pedal Indexing
For information on Ford Color Coded Illustrations refer to OEM Color Coding .
NOTE:
The adjustable pedal system must be indexed whenever the brake pedal assembly or accelerator pedal assembly is installed or damage to the components may result.
NOTE:
Typical adjustable pedal switch location shown, others similar.

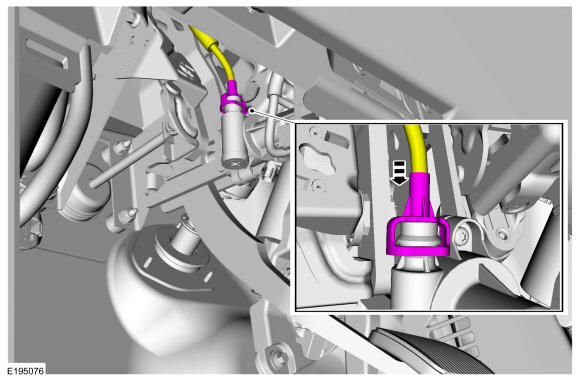

- Disconnect the adjustable pedal motor drive cable from the adjustable brake pedal drive.

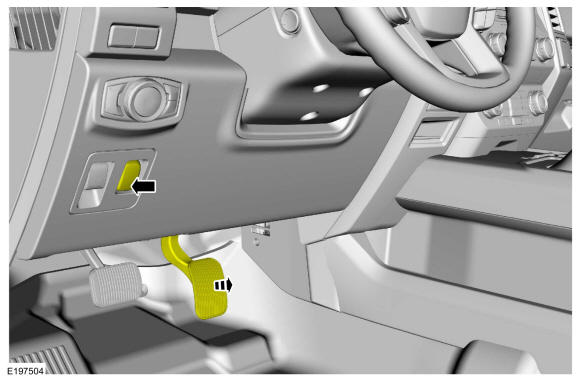

- Operate the accelerator pedal to the full rearward position.
- Connect the adjustable pedal motor drive cable to the adjustable brake pedal drive.

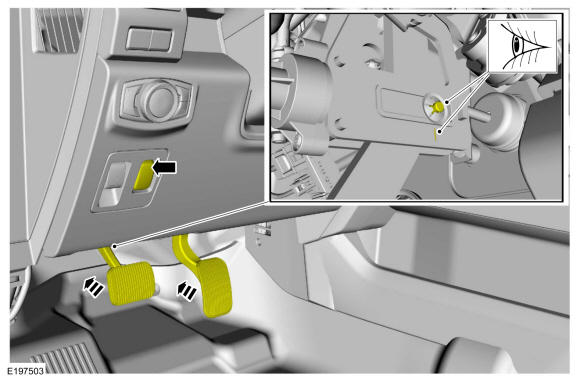

- Operate the adjustable pedals until the pin is aligned with the witness mark on the brake pedal bracket.
- Disconnect the adjustable pedal motor drive cable to the adjustable brake pedal drive.

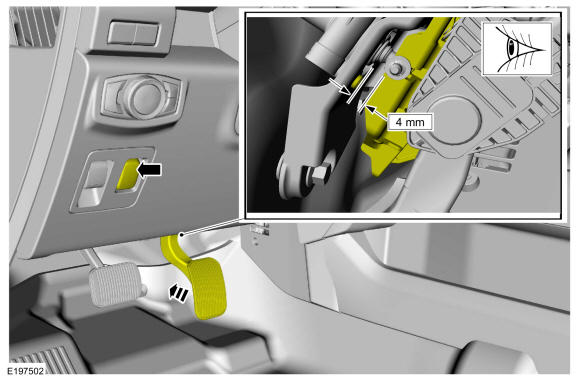

- Operate the adjustable accelerator pedal forward until there is a 4mm (0.157 in) gap between the screw head and the moving structure of the accellerator pedal.
- Connect the adjustable pedal motor drive cable to the adjustable brake pedal drive.
- Check that the brake and accelerator pedals can be fully adjusted forward and rearward.
