Module Communications Network

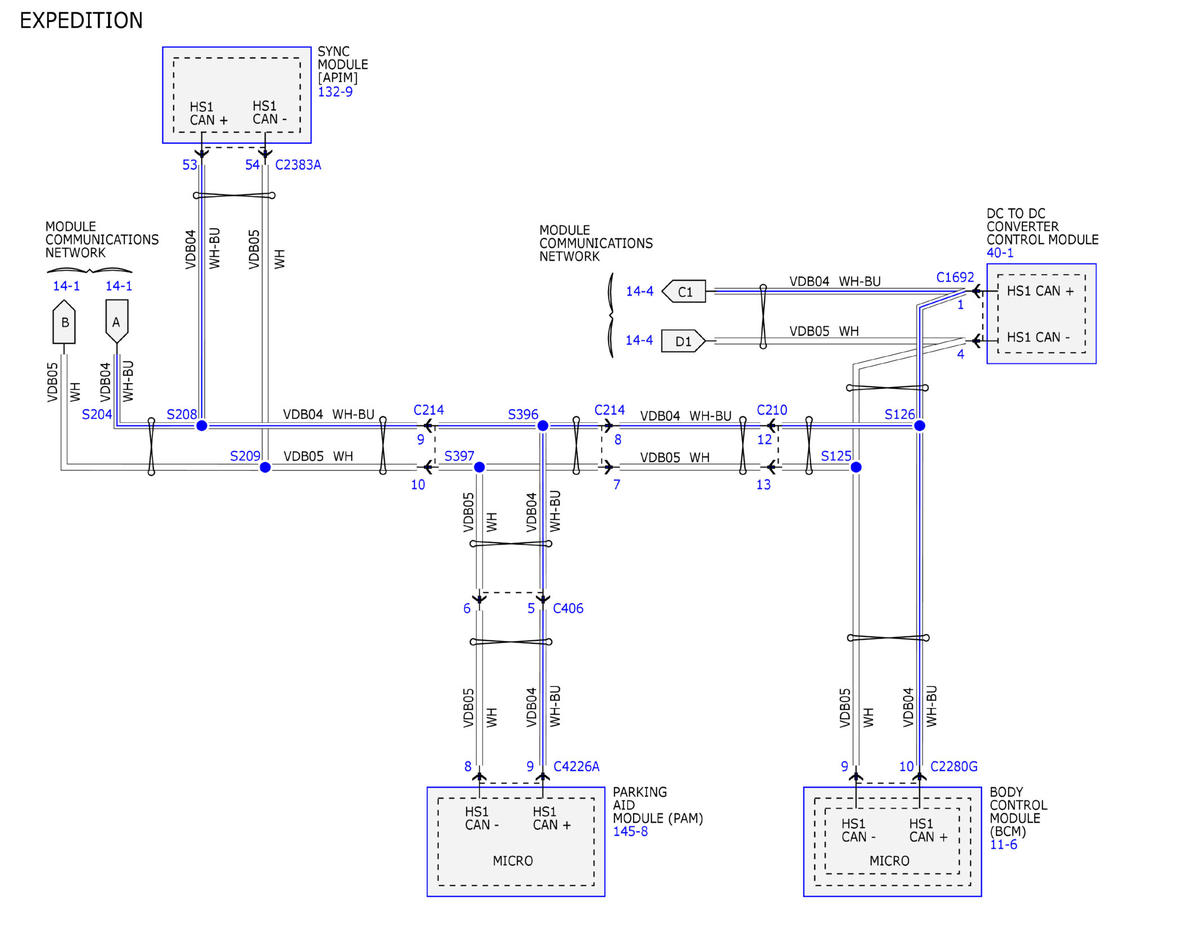

Fig 1: Module Communications Network Wiring Diagram (1 Of 20)

GFDWR102819

Courtesy of FORD MOTOR COMPANY

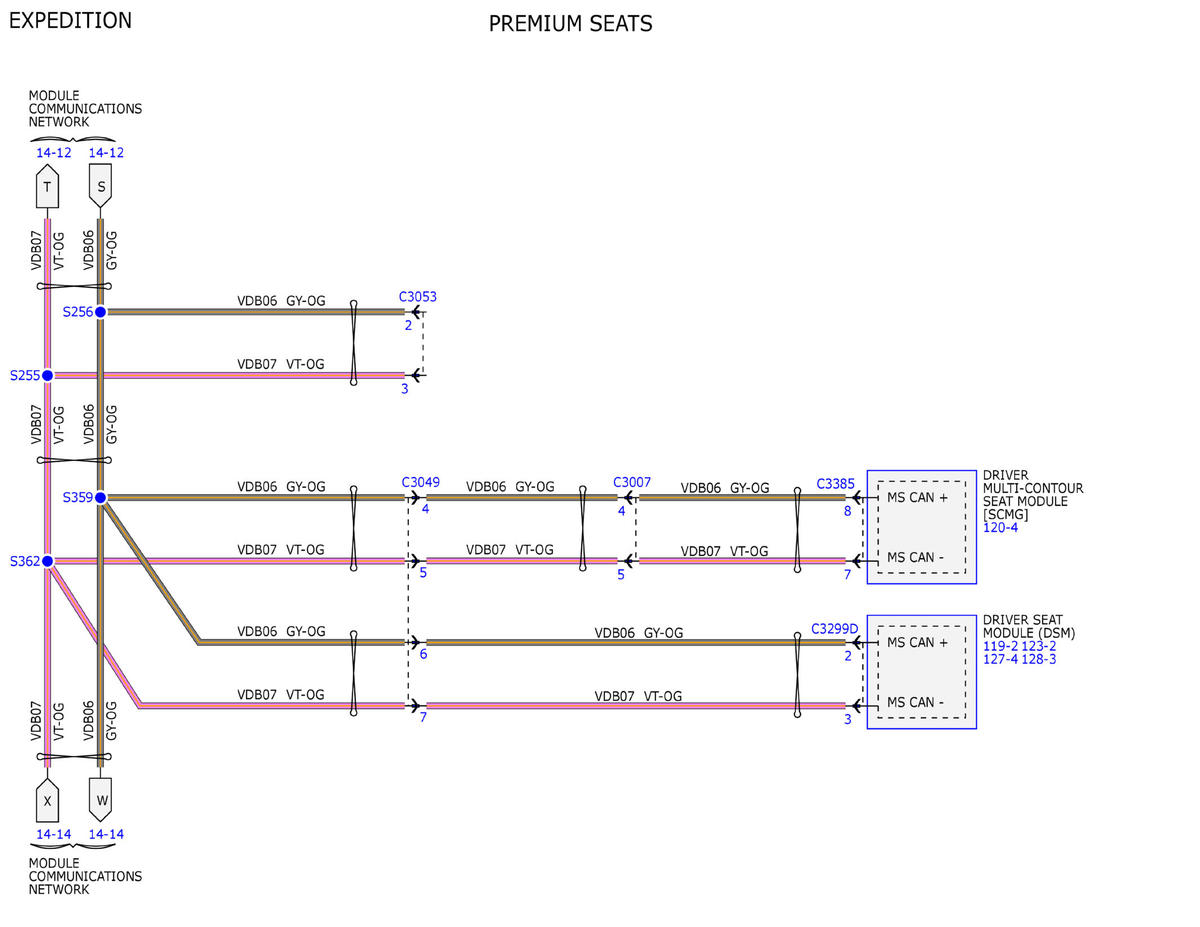

Fig 2: Module Communications Network Wiring Diagram (2 Of 20)

GFDWR102820

Courtesy of FORD MOTOR COMPANY

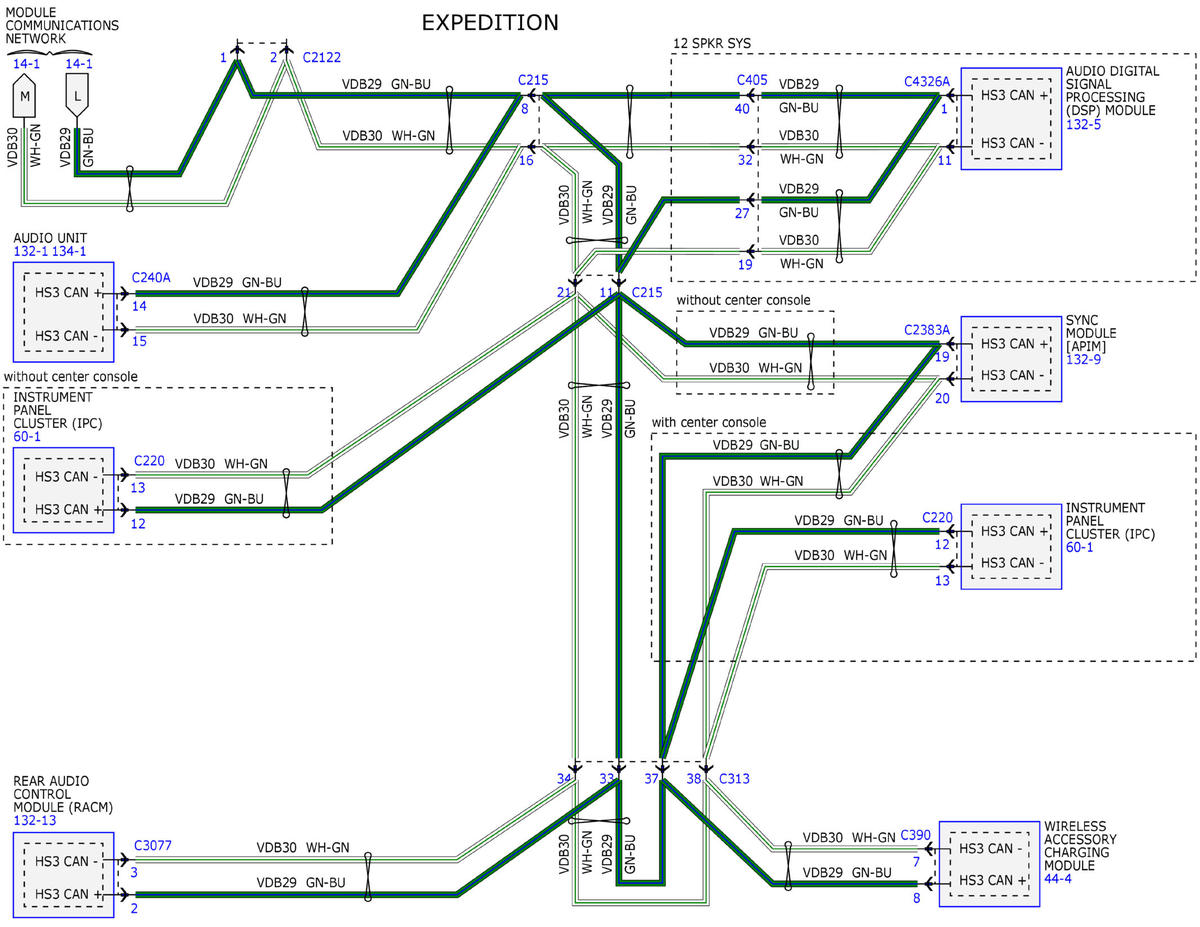

Fig 3: Module Communications Network Wiring Diagram (3 Of 20)

GFDWR102821

Courtesy of FORD MOTOR COMPANY

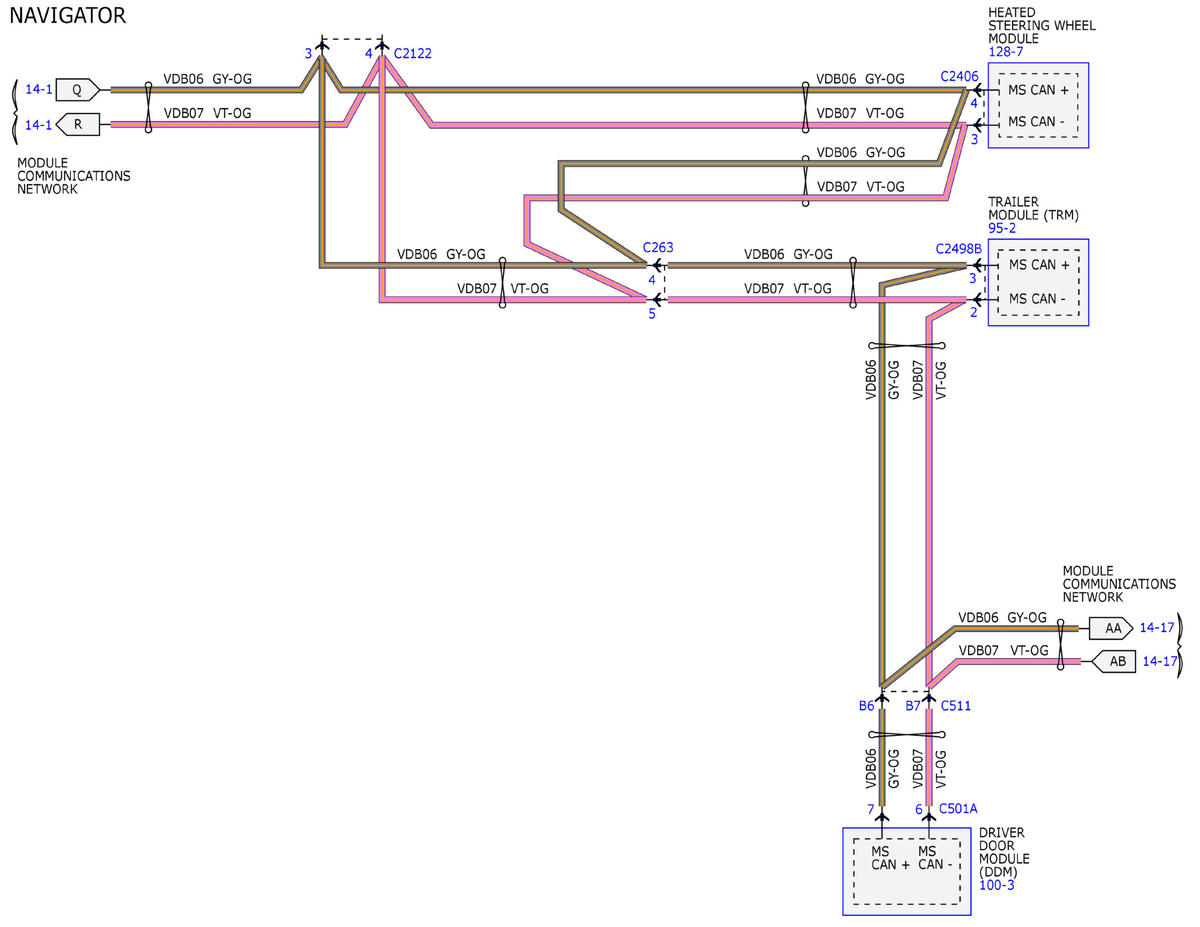

Fig 4: Module Communications Network Wiring Diagram (4 Of 20)

GFDWR102822

Courtesy of FORD MOTOR COMPANY

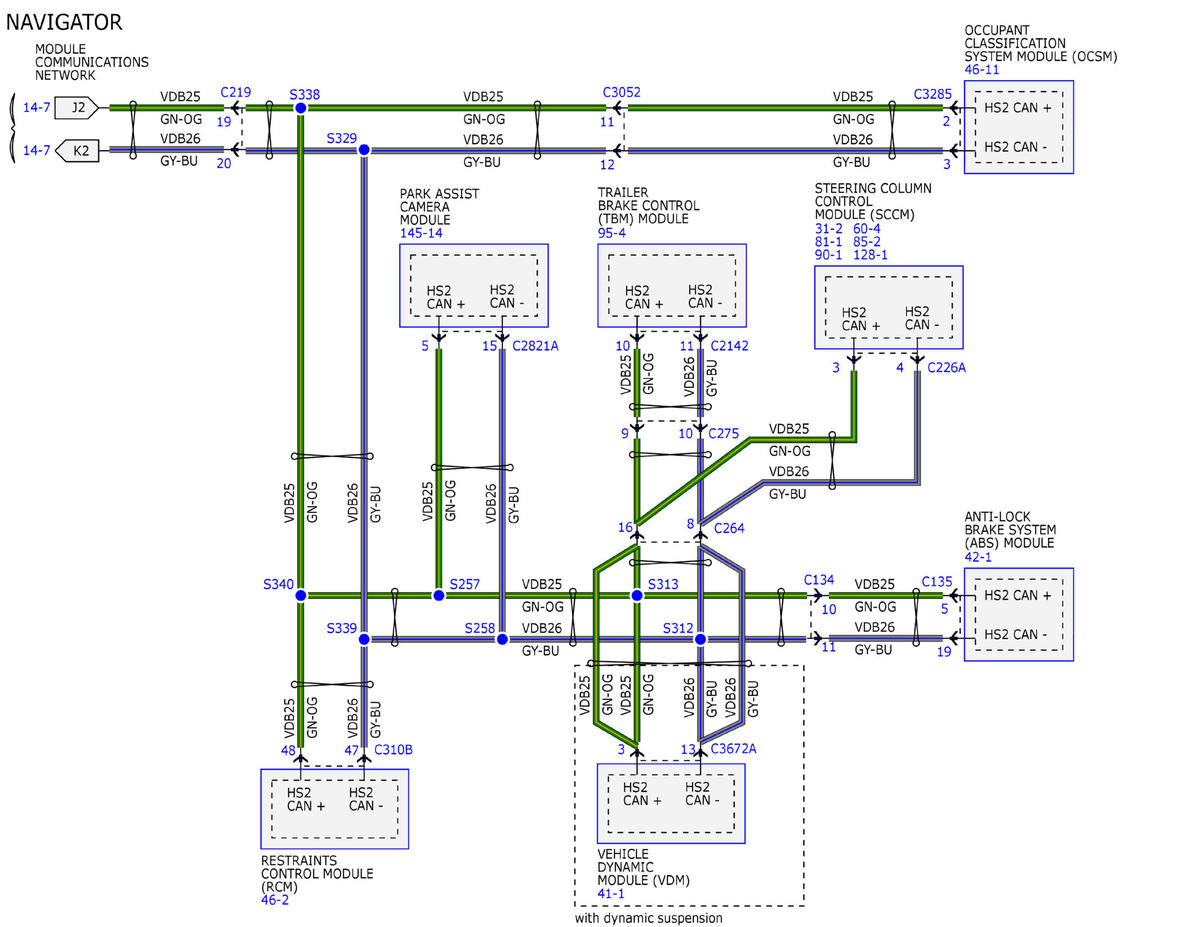

Fig 5: Module Communications Network Wiring Diagram (5 Of 20)

GFDWR102823

Courtesy of FORD MOTOR COMPANY

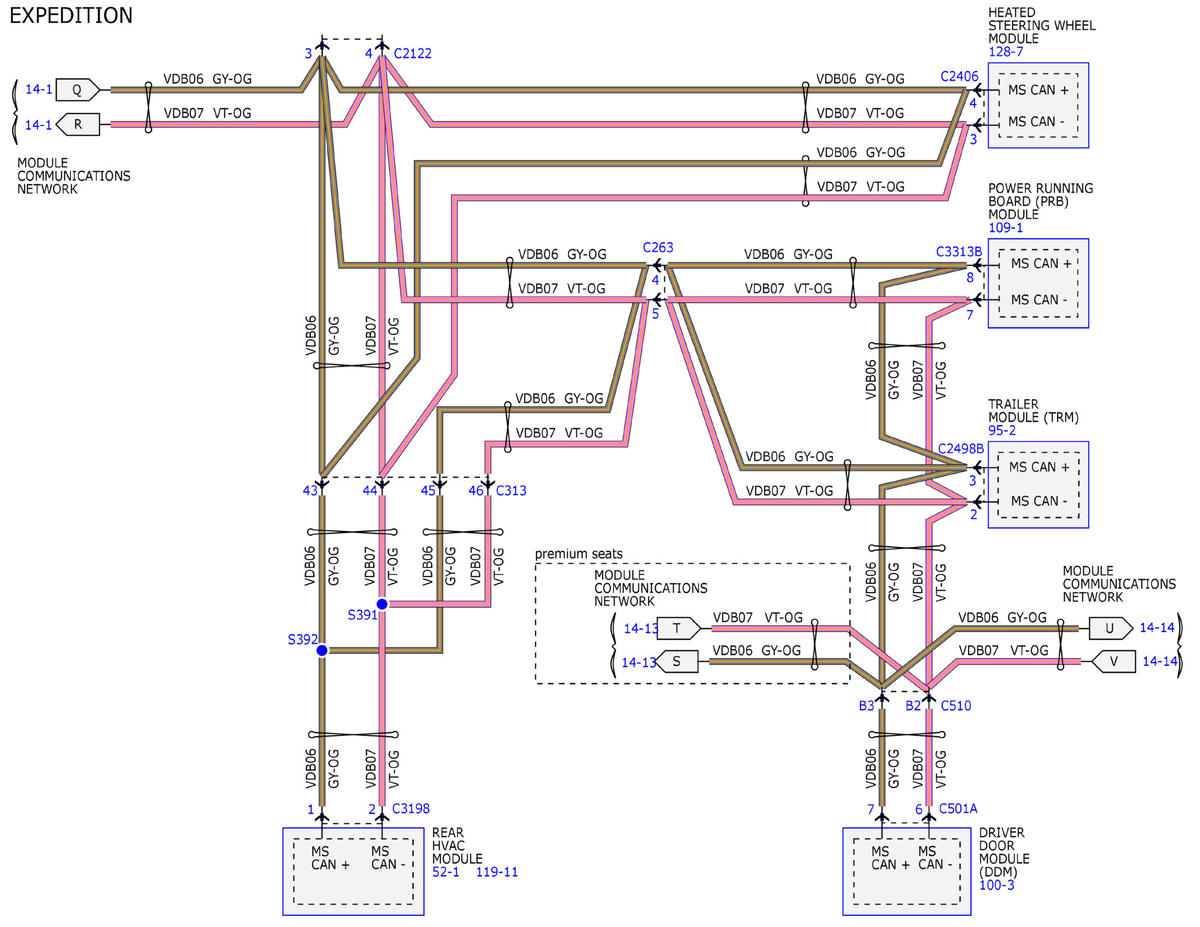

Fig 6: Module Communications Network Wiring Diagram (6 Of 20)

GFDWR102824

Courtesy of FORD MOTOR COMPANY

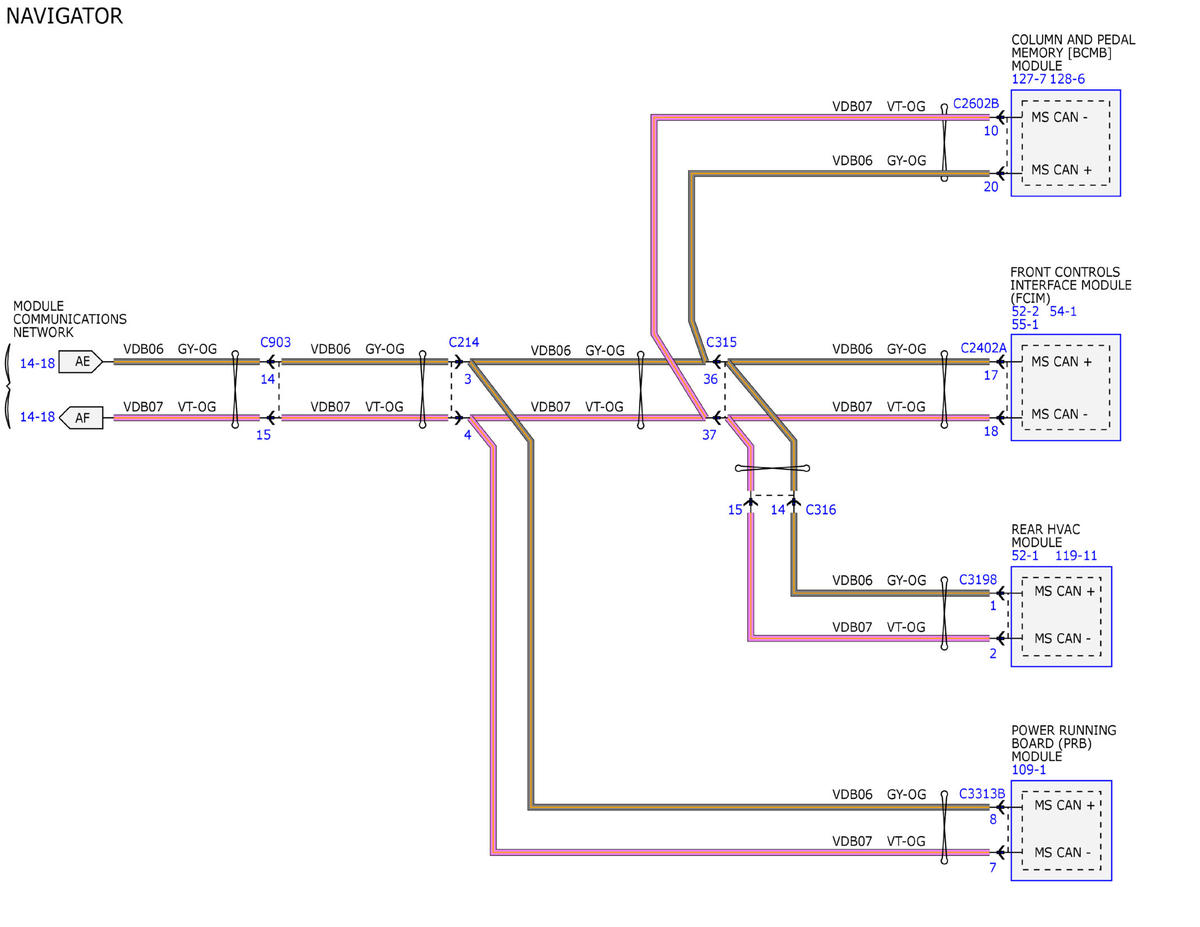

Fig 7: Module Communications Network Wiring Diagram (7 Of 20)

GFDWR102825

Courtesy of FORD MOTOR COMPANY

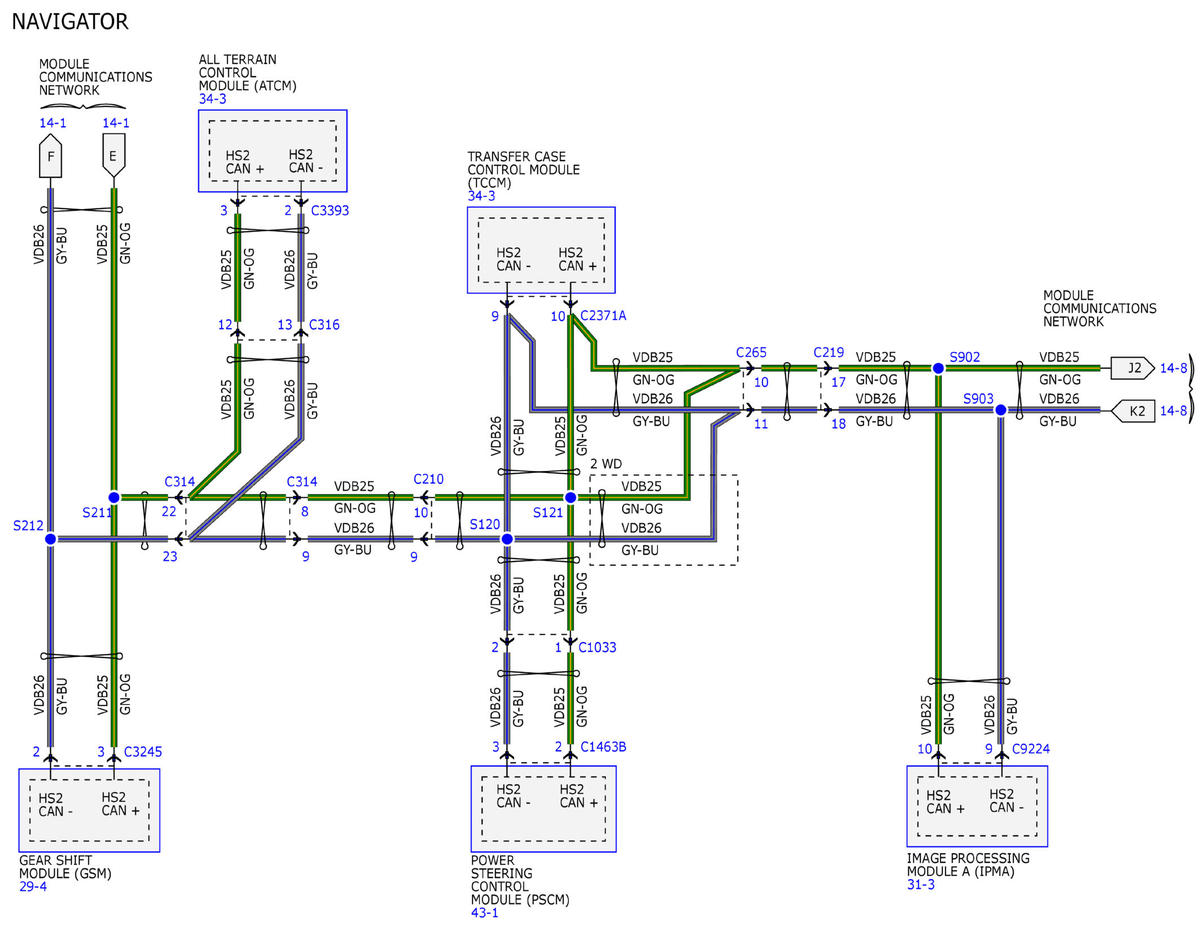

Fig 8: Module Communications Network Wiring Diagram (8 Of 20)

GFDWR102826

Courtesy of FORD MOTOR COMPANY

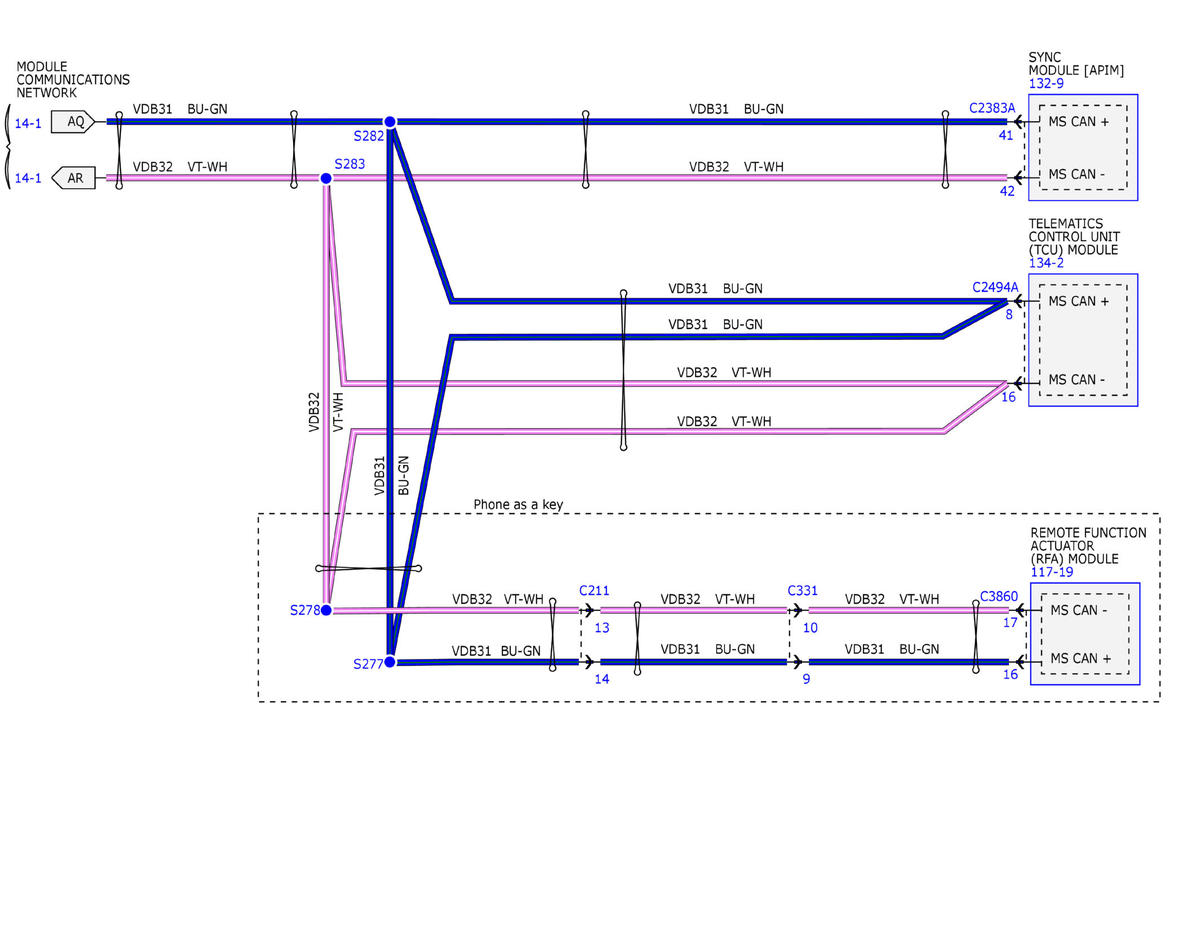

Fig 9: Module Communications Network Wiring Diagram (9 Of 20)

GFDWR102827

Courtesy of FORD MOTOR COMPANY

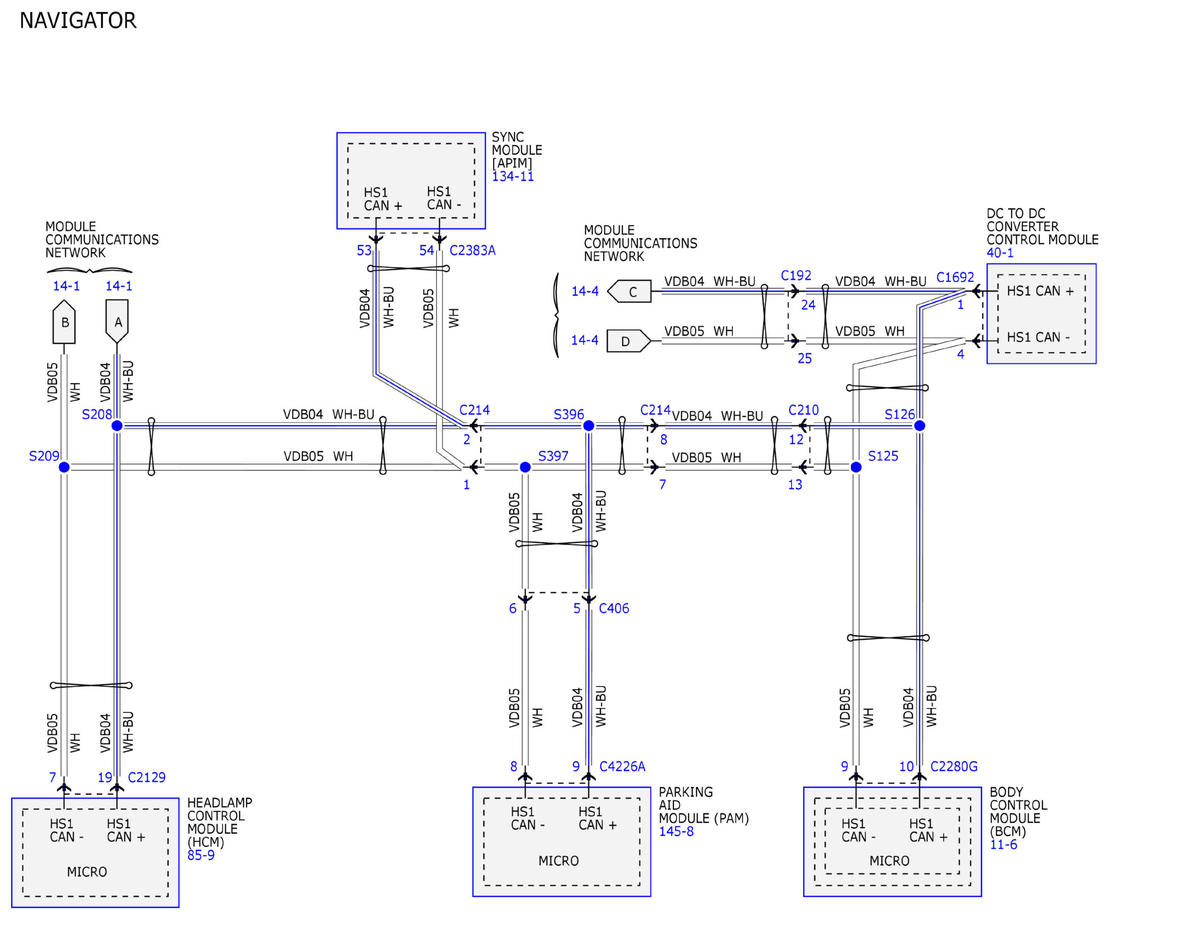

Fig 10: Module Communications Network Wiring Diagram (10 Of 20)

GFDWR102828

Courtesy of FORD MOTOR COMPANY

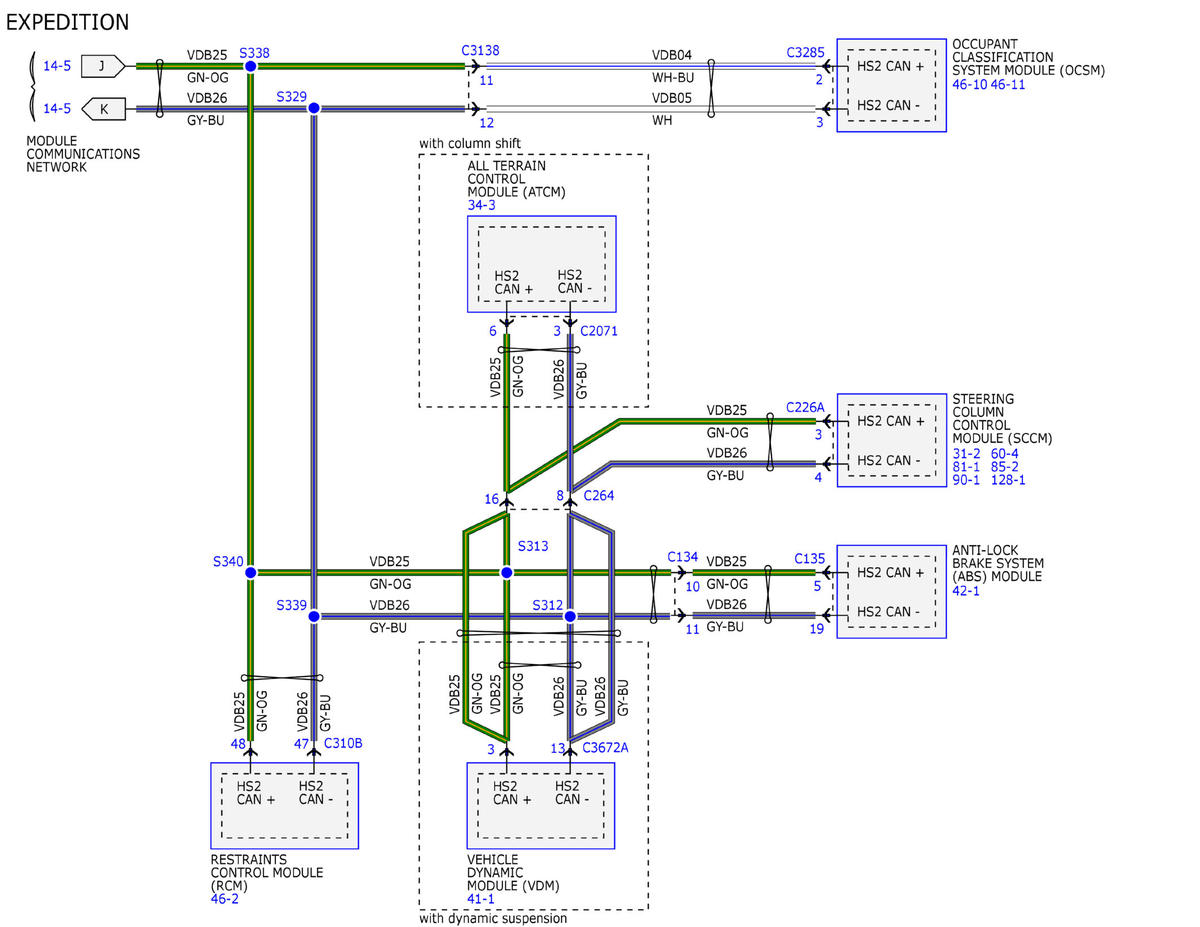

Fig 11: Module Communications Network Wiring Diagram (11 Of 20)

GFDWR102829

Courtesy of FORD MOTOR COMPANY

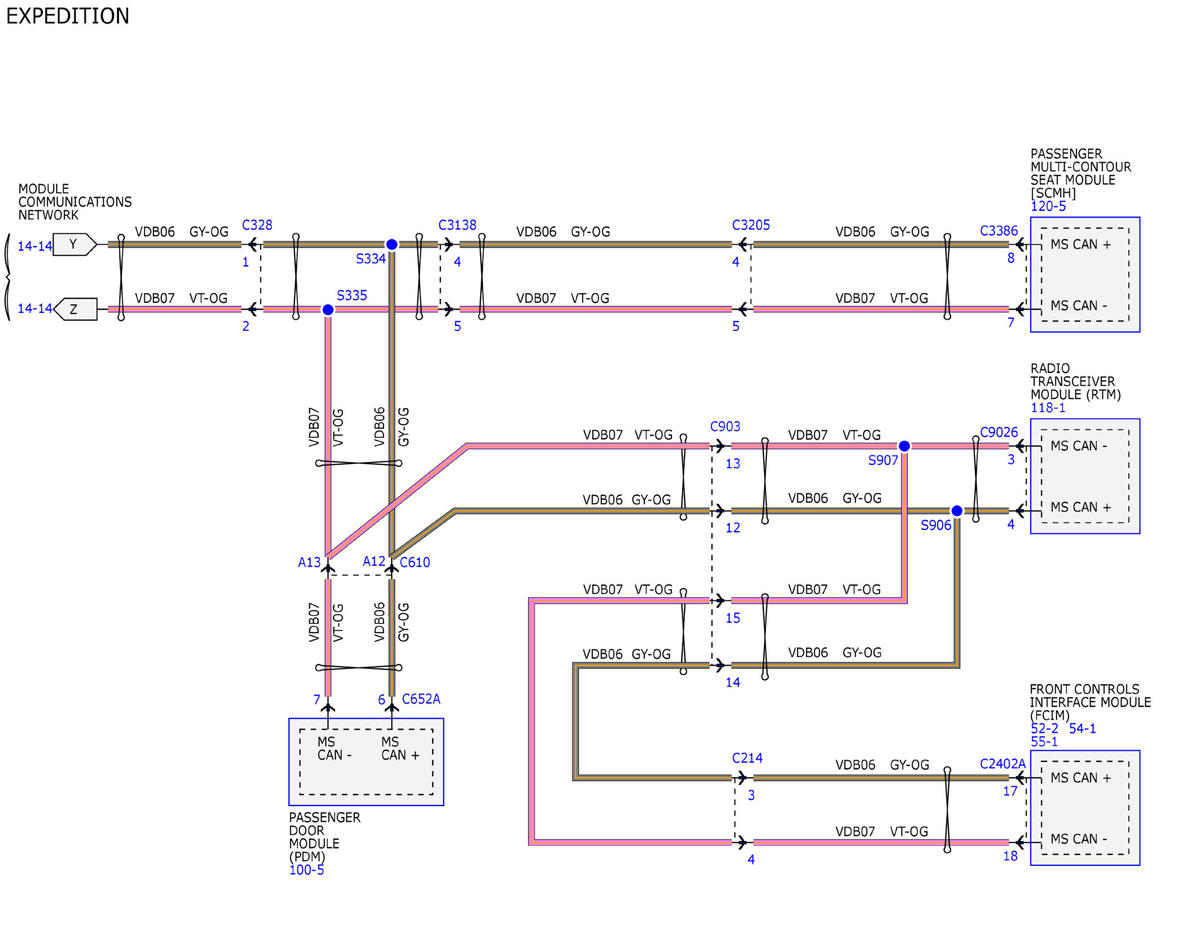

Fig 12: Module Communications Network Wiring Diagram (12 Of 20)

GFDWR102830

Courtesy of FORD MOTOR COMPANY

Fig 13: Module Communications Network Wiring Diagram (13 Of 20)

GFDWR102831

Courtesy of FORD MOTOR COMPANY

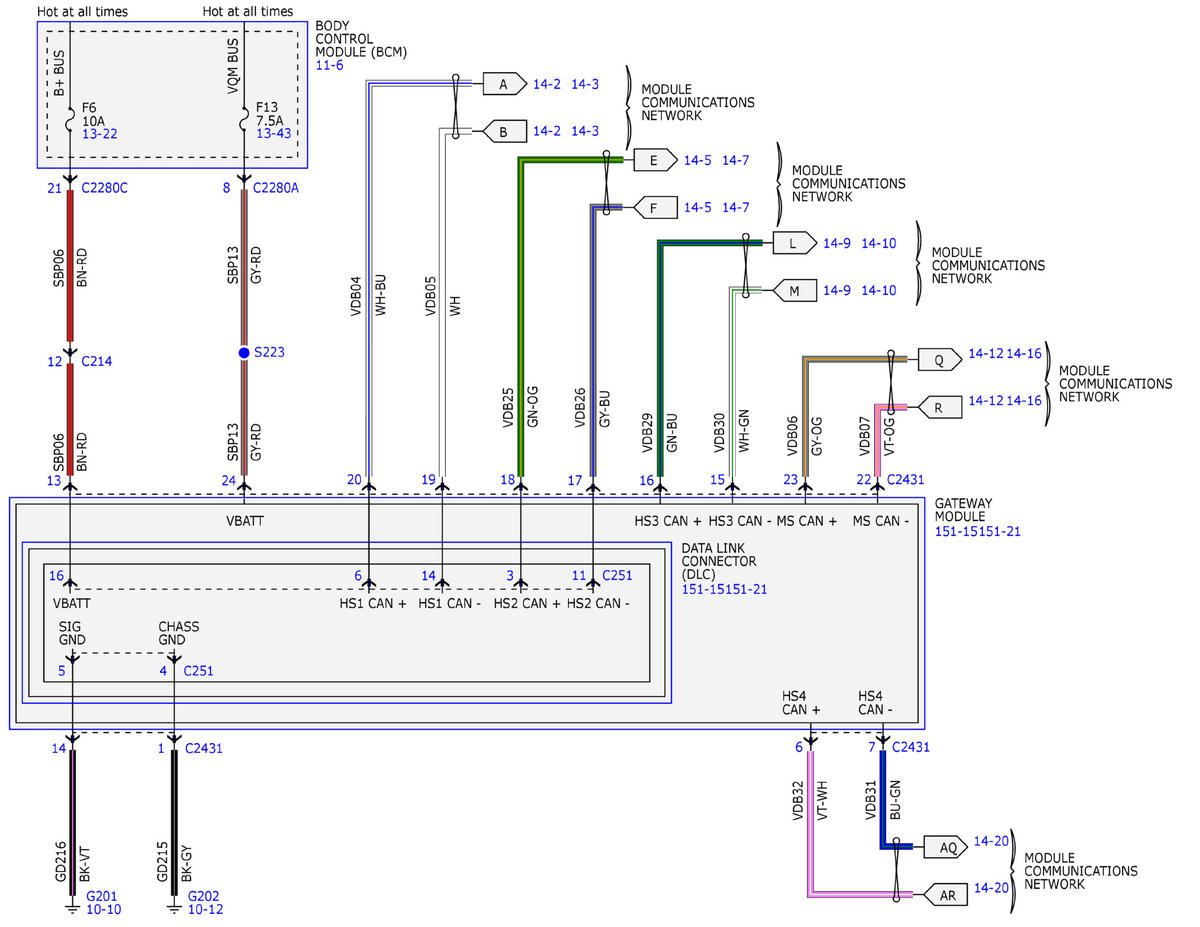

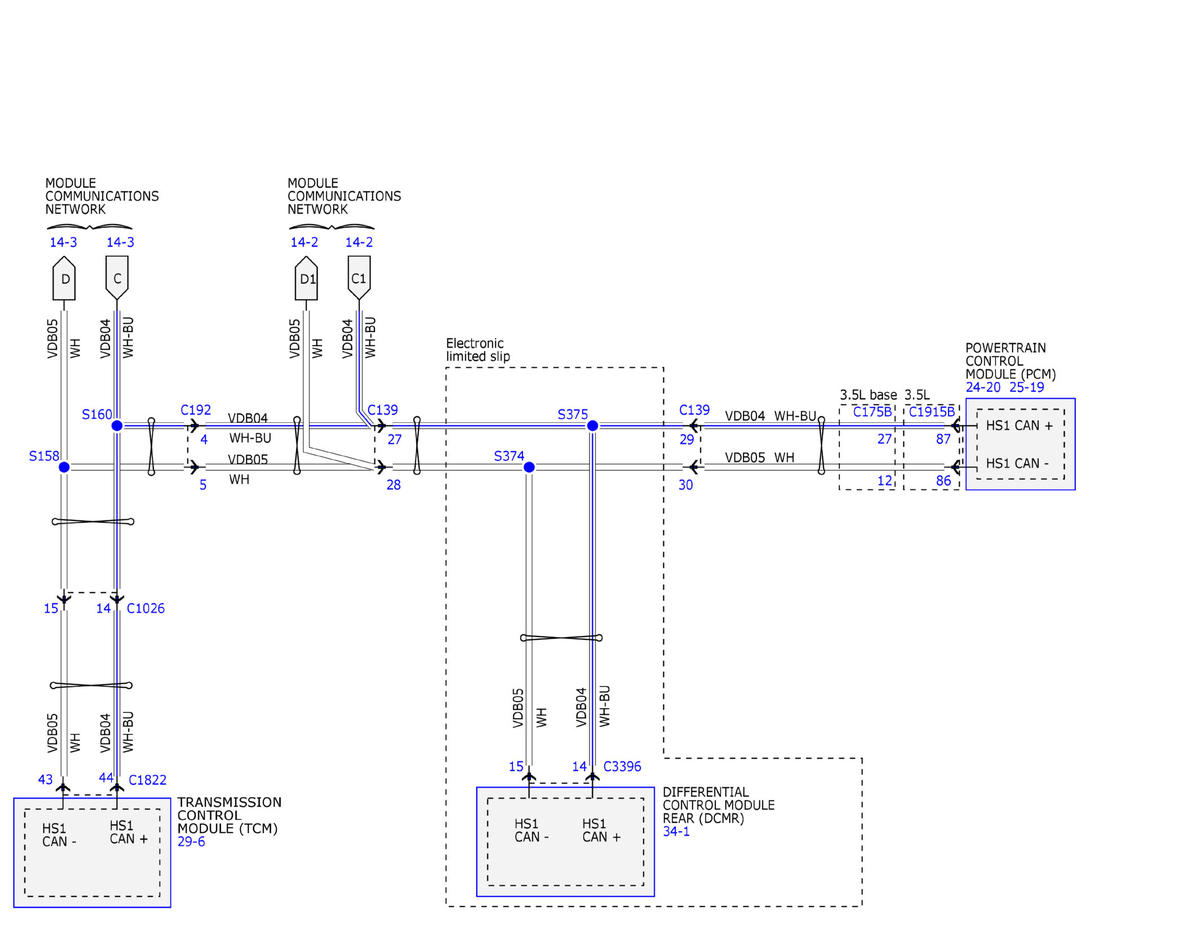

Fig 14: Module Communications Network Wiring Diagram (14 Of 20)

GFDWR102832

Courtesy of FORD MOTOR COMPANY

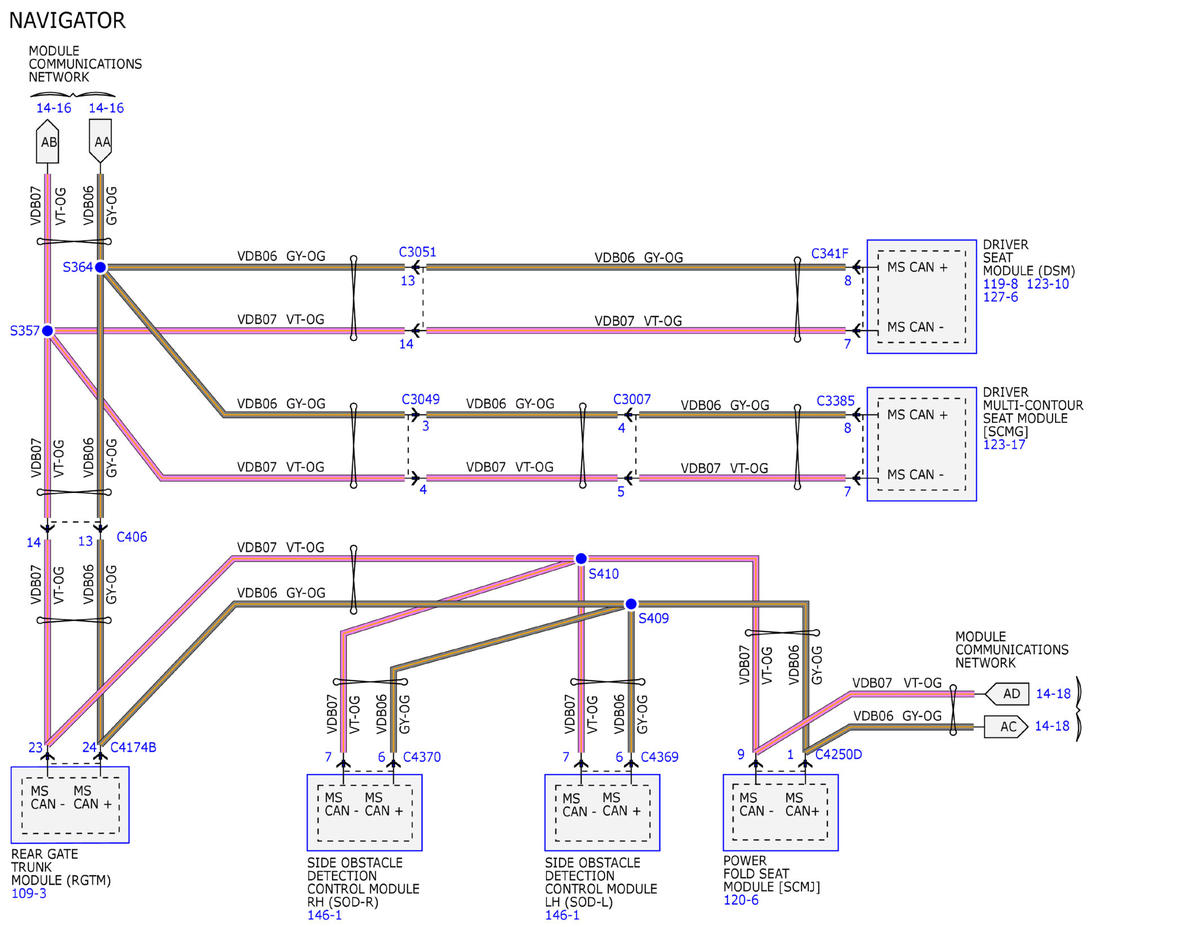

Fig 15: Module Communications Network Wiring Diagram (15 Of 20)

GFDWR102833

Courtesy of FORD MOTOR COMPANY

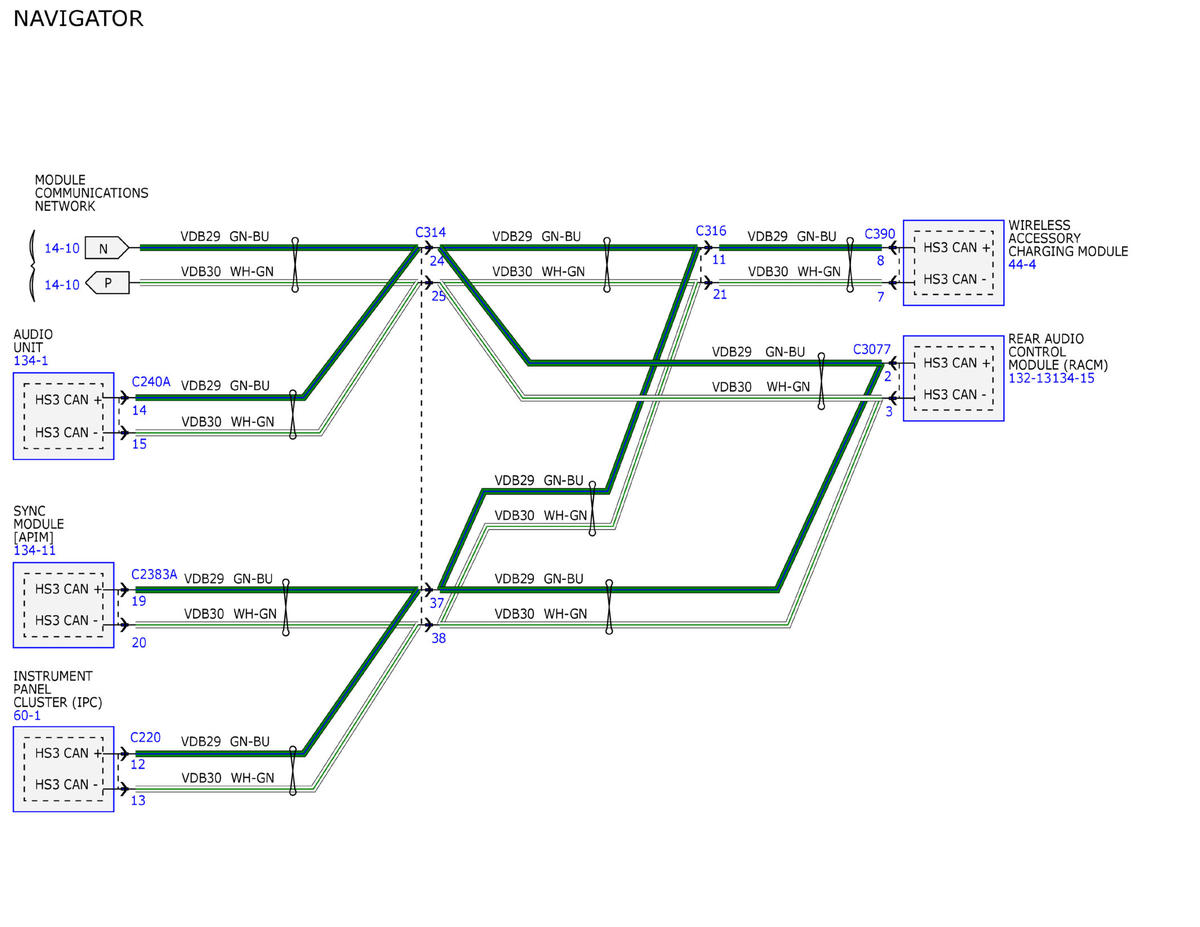

Fig 16: Module Communications Network Wiring Diagram (16 Of 20)

GFDWR102834

Courtesy of FORD MOTOR COMPANY

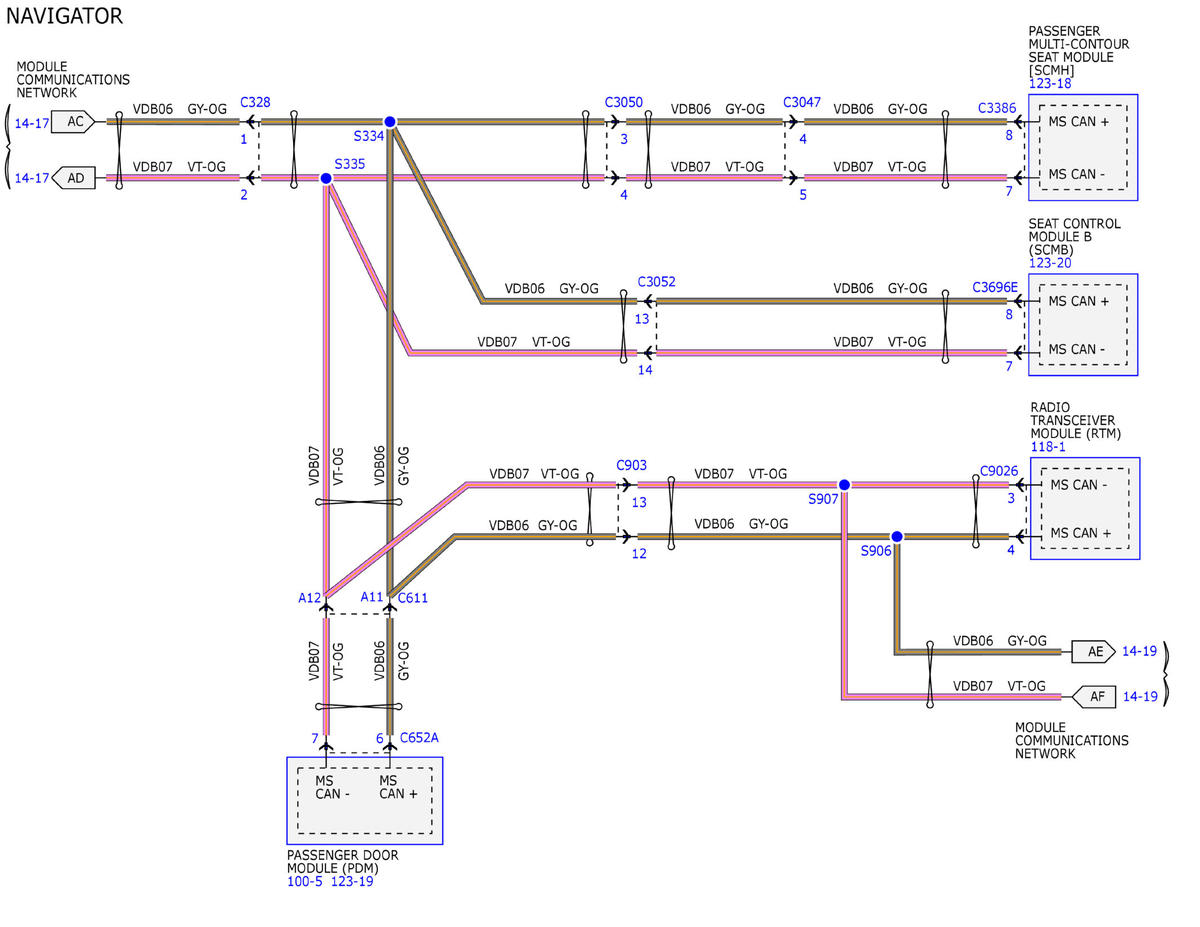

Fig 17: Module Communications Network Wiring Diagram (17 Of 20)

GFDWR102835

Courtesy of FORD MOTOR COMPANY

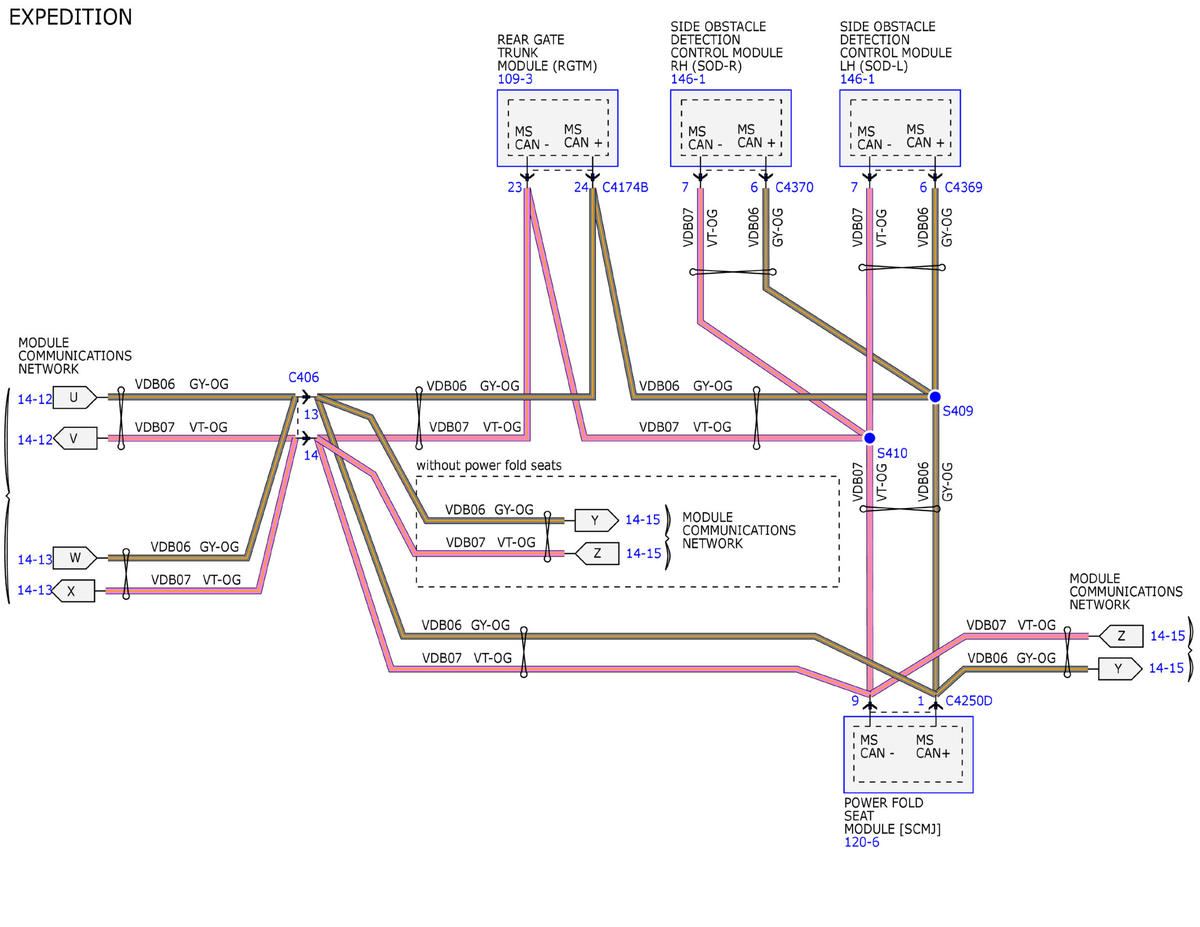

Fig 18: Module Communications Network Wiring Diagram (18 Of 20)

GFDWR102836

Courtesy of FORD MOTOR COMPANY

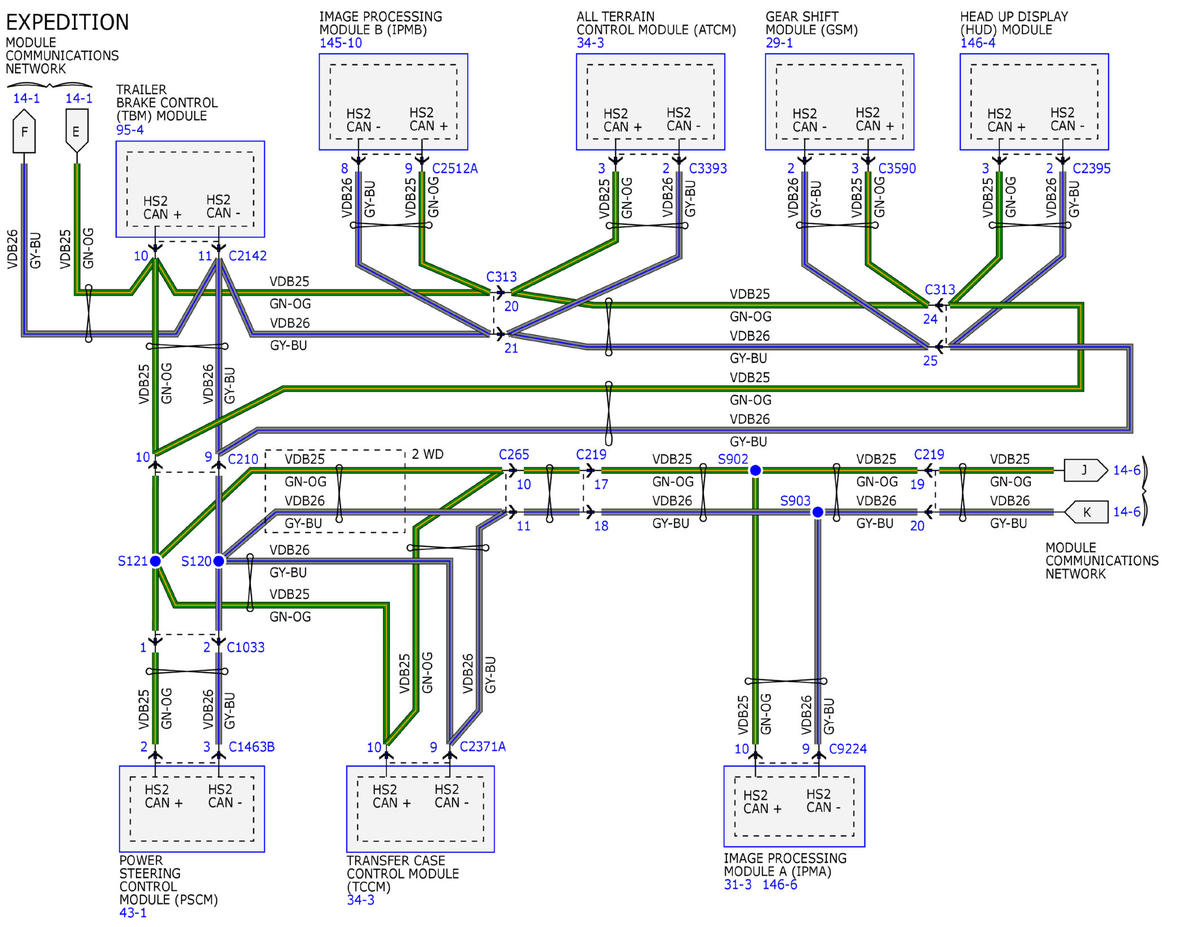

Fig 19: Module Communications Network Wiring Diagram (19 Of 20)

GFDWR102837

Courtesy of FORD MOTOR COMPANY

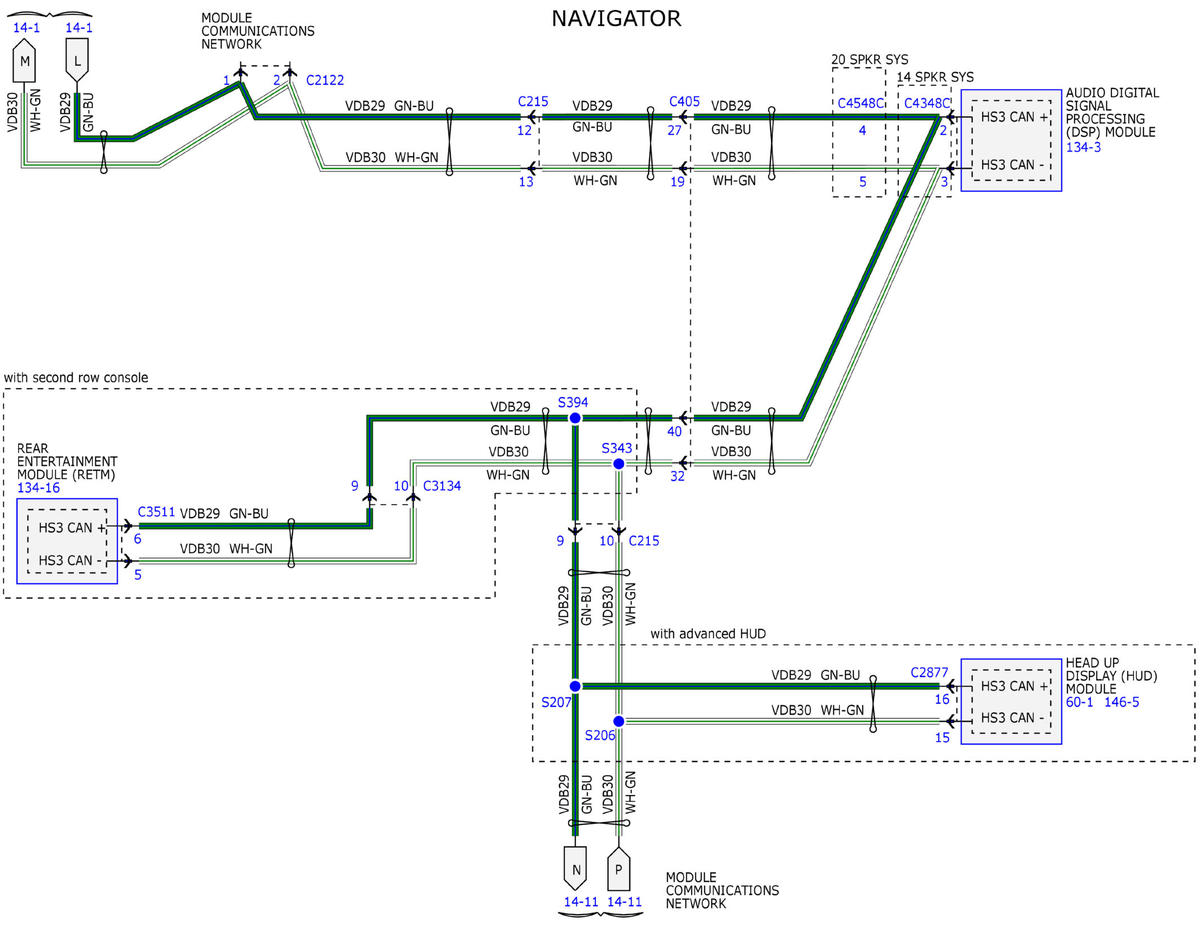

Fig 20: Module Communications Network Wiring Diagram (20 Of 20)

GFDWR102838

Courtesy of FORD MOTOR COMPANY
