Instrument Panel Cluster (IPC) - Overview
Overview
The IPC uses gauges, warning and informational indicators, RTT indicators, warning messages and chimes to alert the driver of vehicle conditions and system operation. The message center provides menu selections to configure various vehicle features. For a complete list and description of the features the message center controls, refer to the Owner's Literature.
The IPC provides a single display screen that contains the message center, RTT indication and virtual gauge displays.
Informational indicators inform the driver of conditions that exist in the vehicle. Warning indicators provide information to the driver of conditions that could potentially cause personal injury or alter vehicle performance.
RTT indicators illuminate in the message center and replace traditional informational or warning indicators, using the same iconic representation. The message center uses a rotating RTT display area that can display multiple indicators, dedicated RTT displays and fixed locations for other RTT indicators and displays.

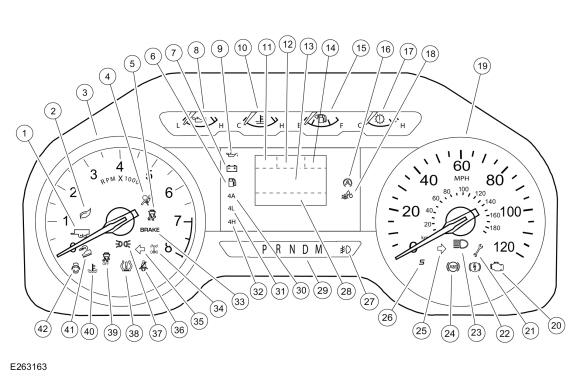

Base IPC
Base IPC
NOTE:
The illustration shows the basic display elements. The elements displayed and the layout of the LCD display changes based on driver selections. For additional information about specific feature displays, refer to the Owner's Literature.
| Item | Description |
|---|---|
| 1 | Tow haul indicator |
| 2 | EcoSelect indicator |
| 3 | Tachometer |
| 4 | Airbag warning indicator |
| 5 | Stability-traction control indicator (sliding car icon) |
| 6 | Low fuel indicator |
| 7 | Charging system warning indicator |
| 8 | Oil pressure gauge |
| 9 | Low oil pressure warning indicator |
| 10 | Engine temperature gauge |
| 11 | Manual shift mode, progressive range select and SelectShift® display |
| 12 | Cruise control active indicator |
| 13 | Message center display area |
| 14 | Compass |
| 15 | Fuel gauge |
| 16 | Auto stop/start indicator |
| 17 | Transmission temperature gauge |
| 18 | Snow/wet mode indicator |
| 19 | Speedometer |
| 20 | MIL |
| 21 | Powertrain malfunction (wrench) indicator |
| 22 | Electronic park brake indicator (North America shown, non-North America uses a different indicator) |
| 23 | High beam indicator |
| 24 | ABS indicator |
| 25 | RH turn indicator |
| 26 | Sport mode indicator |
| 27 | Front fog lamp indicator |
| 28 | Odometer display |
| 29 | PRNDL display area |
| 30 | 4WD auto indicator |
| 31 | 4WD low indicator |
| 32 | 4WD high indicator |
| 33 | Brake warning indicator (USA shown, non-USA use a different indicator) |
| 34 | Electronic Limited Slip Differential (eLSD) indicator |
| 35 | LH turn indicator |
| 36 | Seatbelt warning indicator |
| 37 | Lights on indicator |
| 38 | TPMS warning indicator |
| 39 | Traction control disabled indicator (sliding car OFF icon) |
| 40 | Engine over-temperature warning indicator |
| 41 | Hill descent indicator |
| 42 | Door/liftgate ajar warning indicator |

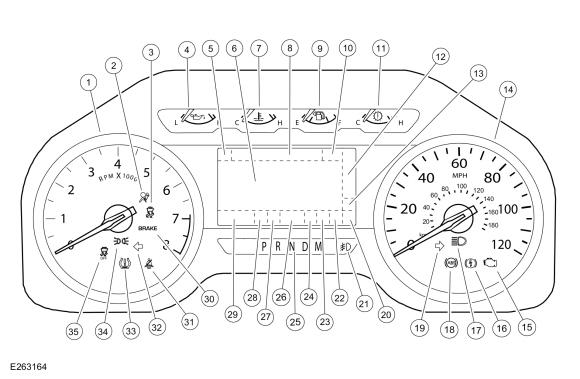

Mid-Level IPC
Mid-Level IPC
NOTE:
The illustration shows the basic display elements. The elements displayed and the layout changes based on driver selections. For additional information about specific feature displays, refer to the Owner's Literature.
| Item | Description |
|---|---|
| 1 | Tachometer |
| 2 | Airbag warning indicator |
| 3 | Stability-traction control indicator (sliding car icon) |
| 4 | Oil pressure gauge |
| 5 | Main menu navigation icon |
| 6 | Main menu display area |
| 7 | Engine temperature gauge |
| 8 | Sub-menu display area |
| 9 | Fuel gauge |
| 10 | Compass |
| 11 | Transmission temperature gauge |
| 12 | Manual shift mode, progressive range select and SelectShift® display |
| 13 | Cruise control set speed display |
| 14 | Speedometer |
| 15 | MIL |
| 16 | Electronic park brake indicator |
| 17 | High beam indicator |
| 18 | ABS indicator |
| 19 | RH turn indicator |
| 20 | Cruise control RTT indicator |
| 21 | Front fog lamp indicator |
| 22 | 4WD (2H, 4A, 4L, 4H) RTT indicator |
| 23 | Electronic Limited Slip Differential (eLSD) RTT indicator or overspeed warning indicator (Gulf Cooperative Countries [GCC]) |
| 24 | Selectable drive mode RTT indicators: Tow haul Sport Snow/wet Grass/gravel/snow Mud/rut Sand EcoSelect |
| 25 | PRNDL display |
| 26 | Rotating RTT indicator display area BLIS off Charging system Door ajar Engine coolant temperature Engineering test mode Hood ajar Liftgate/liftglass ajar Low engine oil pressure Low fuel Low washer fluid Powertrain malfunction |
| 27 | Auto stop/start RTT indicator |
| 28 | Hill descent RTT indicator |
| 29 | Odometer display |
| 30 | Brake warning indicator (USA shown, non-USA use a different indicator) |
| 31 | Seatbelt warning indicator |
| 32 | LH turn indicator |
| 33 | TPMS warning indicator |
| 34 | Lights on indicator |
| 35 | Traction control disabled indicator (sliding car OFF icon) |

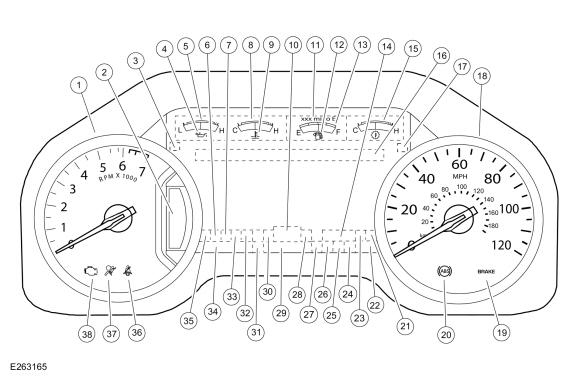

High-Level IPC
