Brake Master Cylinder: Removal

NOTE: Removal steps in this procedure may contain installation details.

If equipped, disconnect the front drive axle vent retainer.

Courtesy of FORD MOTOR COMPANY

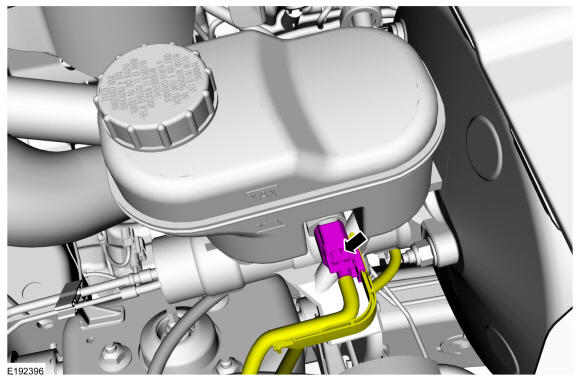

Disconnect the brake fluid level sensor electrical connector.

Courtesy of FORD MOTOR COMPANY

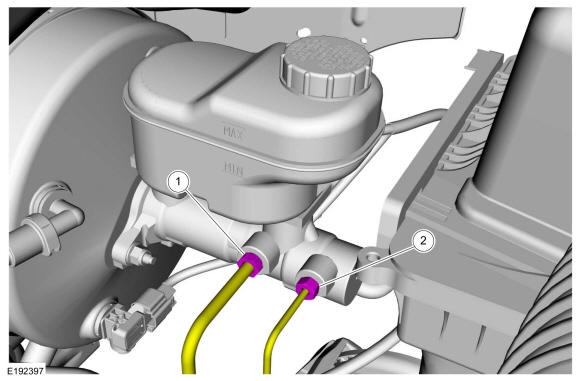

Disconnect the 2 brake tube fittings.
1. Disconnect the primary brake tube fitting.
  Torque: 22 lb.ft (30 Nm)
2. Disconnect the secondary brake tube fitting.
  Torque: 17 lb.ft (23 Nm)
Courtesy of FORD MOTOR COMPANY

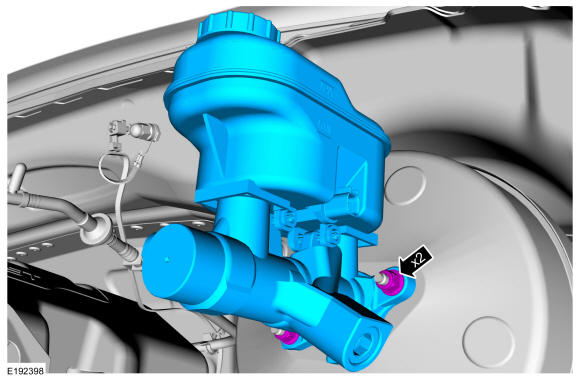

Remove the 2 nuts and the brake master cylinder.
Torque: 18 lb.ft (25 Nm)

Courtesy of FORD MOTOR COMPANY
