Rear Parking Aid Camera: Removal

  1. Remove the liftgate moulding. Refer to: Liftgate Moulding .

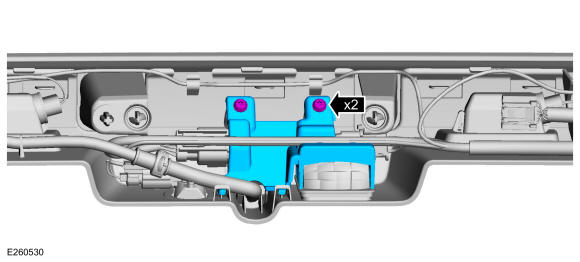

  2. Remove the screws and the rear parking aid camera bracket.
    GFD507709Courtesy of FORD MOTOR COMPANY

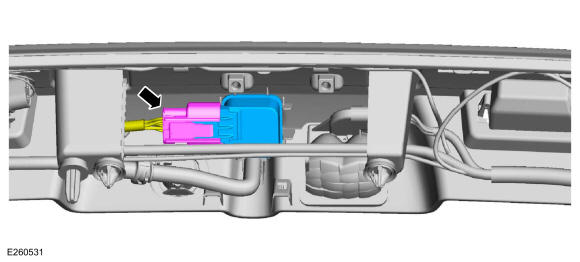

  3. Disconnect the electrical connector and remove the rear parking aid camera.
GFD507710Courtesy of FORD MOTOR COMPANY
