Parking Aid Camera Initialization

For information on Ford Color Coded Illustrations refer to OEM Color Coding .

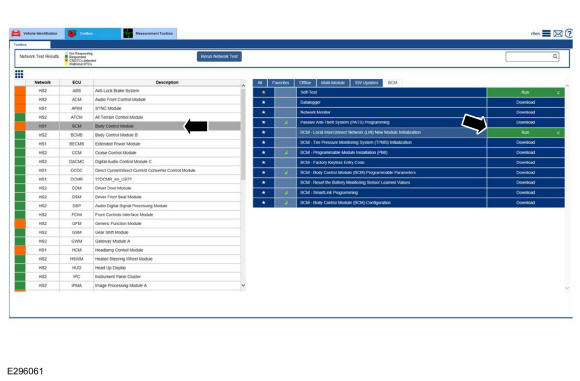

1. Using a scan tool select the controlling module for the parking aid camera(s).

   Courtesy of FORD MOTOR COMPANY

2. Carry out the LIN new module initialization.
3. Follow the on-screen instructions.
4. Check the vehicle for the active guidelines option. Refer to description and operation in the appropriate vehicle information.
5. If equipped with active guidelines, drive the vehicle on a flat, smooth road at 32 km/h (20 mph) or more, with hands placed loosely on the steering wheel and minimal steering correction for approximately 30 seconds.
   NOTE: When the battery has been disconnected or discharged the active guidelines may be inoperative until the following step is carried out.
