Azimuth System Check

For information on Ford Color Coded Illustrations refer to OEM Color Coding .

Check

1. NOTE: Car shown, trucks are similar.

   Turn the ignition ON, engine OFF.

   Courtesy of FORD MOTOR COMPANY

2. Set the parking brake on.
3. For automatic transmission place the selector lever in DRIVE (D). For manual transmission place the gearshift lever in FIRST GEAR.

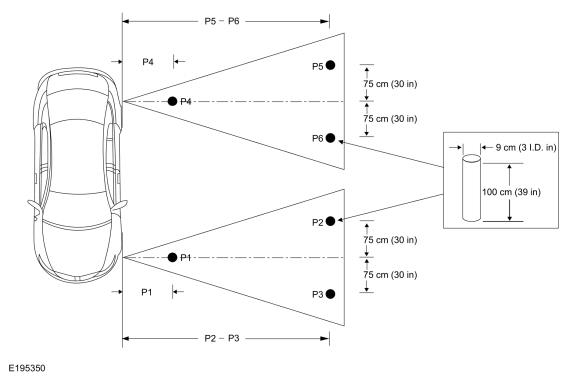

4. Place the test objects in position shown in the diagram. Refer to specifications in this article.
5. Monitor the suspect active park assist sensor Parameter Identifications (PIDs) to verify the module detects the objects when placed within the specified locations and record the distances.
6. Confirm the recorded distances are within the specification ranges.
7. If the active park assist system does not detect the objects, refer to diagnosis and testing in this article.
