Trailer/Camper Adapter

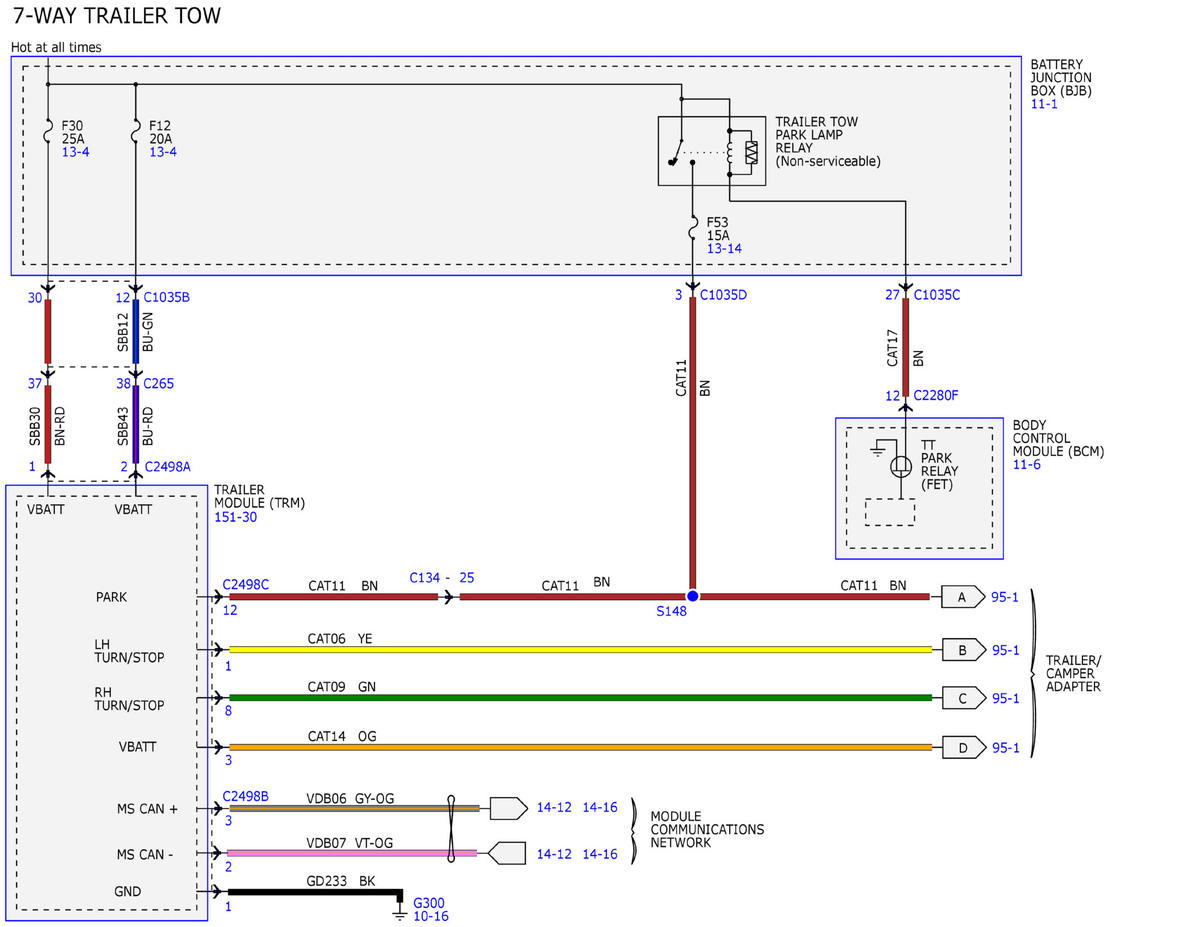

Fig 1: Trailer/Camper Adapter Wiring Diagram (1 Of 4)
GFDWR103006Courtesy of FORD MOTOR COMPANY
Fig 2: Trailer/Camper Adapter Wiring Diagram (2 Of 4)
GFDWR103007Courtesy of FORD MOTOR COMPANY

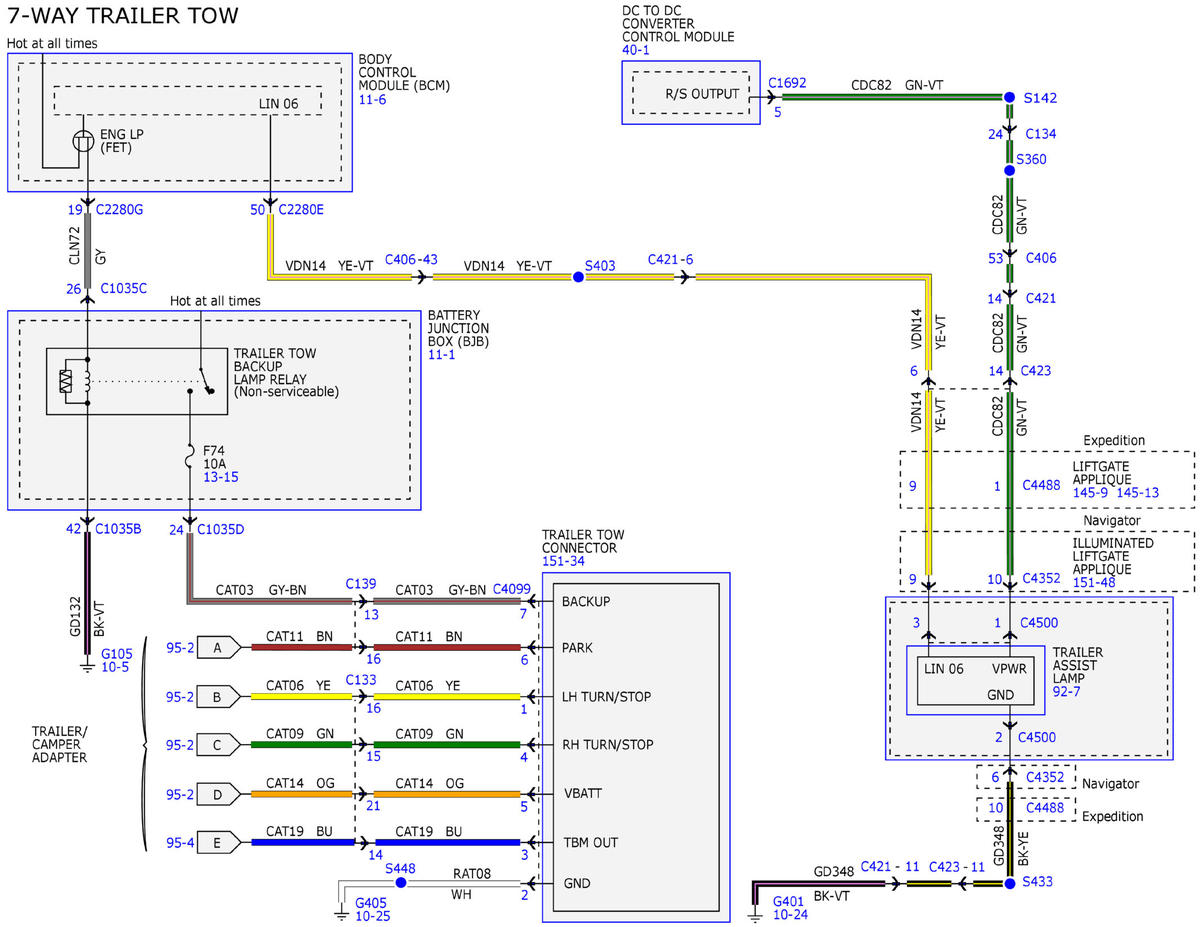

Fig 3: Trailer/Camper Adapter Wiring Diagram (3 Of 4)
GFDWR103008Courtesy of FORD MOTOR COMPANY

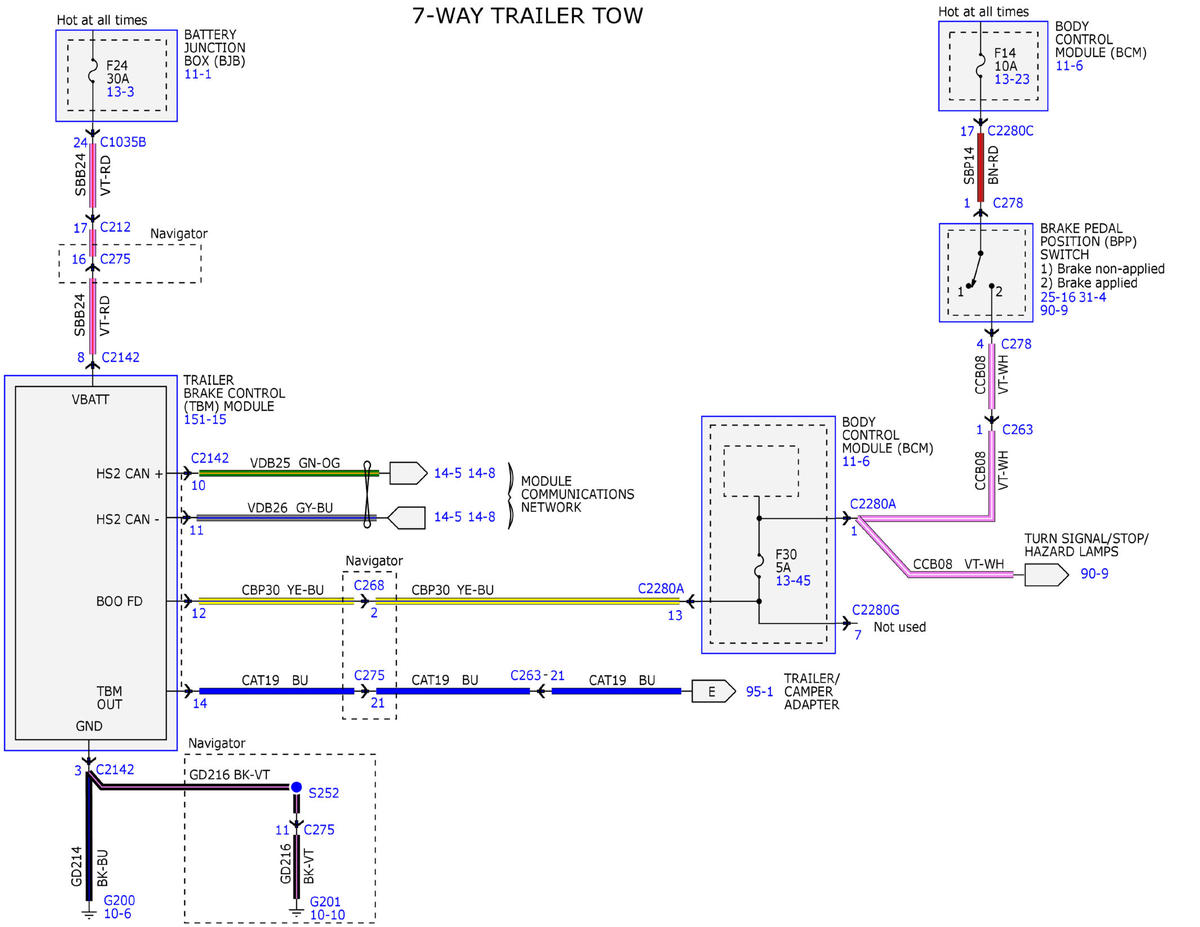

Fig 4: Trailer/Camper Adapter Wiring Diagram (4 Of 4)
GFDWR103009Courtesy of FORD MOTOR COMPANY
