Turbocharger - Component Location

2.0L EcoBoost

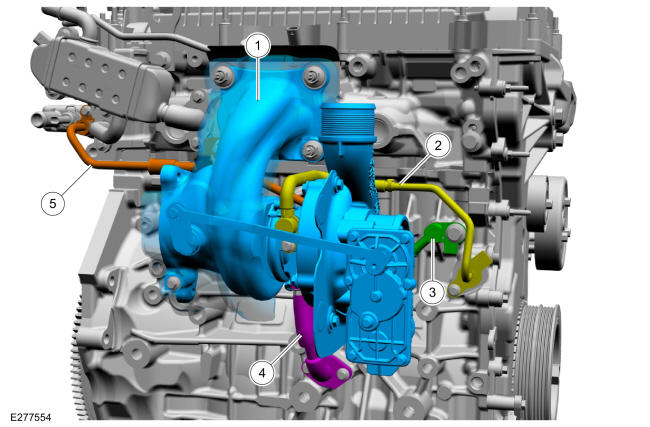

GFD474724Courtesy of FORD MOTOR COMPANY
Item Description
1 Turbocharger
2 Turbocharger oil supply tube
3 Turbocharger coolant supply tube
4 Turbocharger oil return tube
5 Turbocharger coolant return tube
