Wipers And Washers

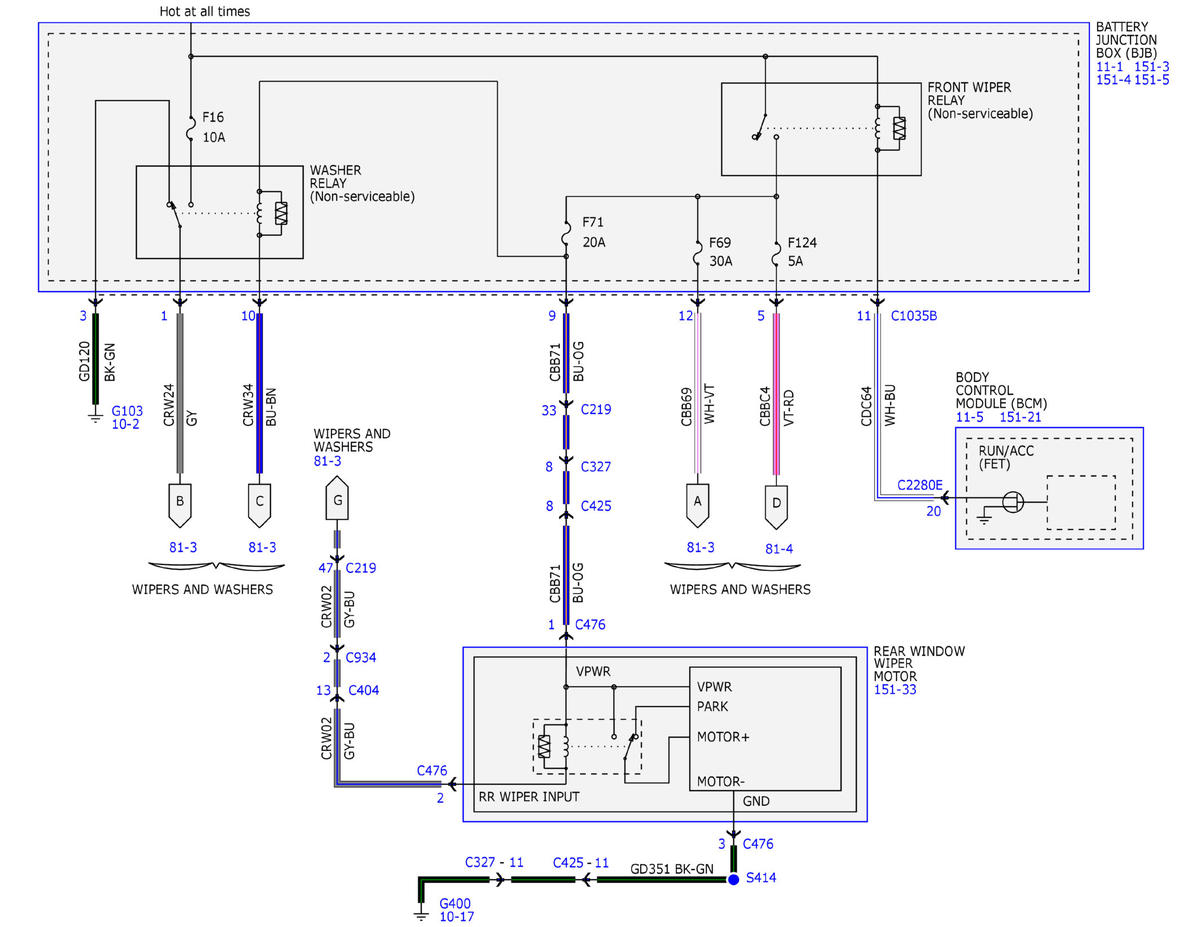

Fig 1: Wipers and Washers Wiring Diagram (1 of 4)
GFDWR91794Courtesy of FORD MOTOR COMPANY

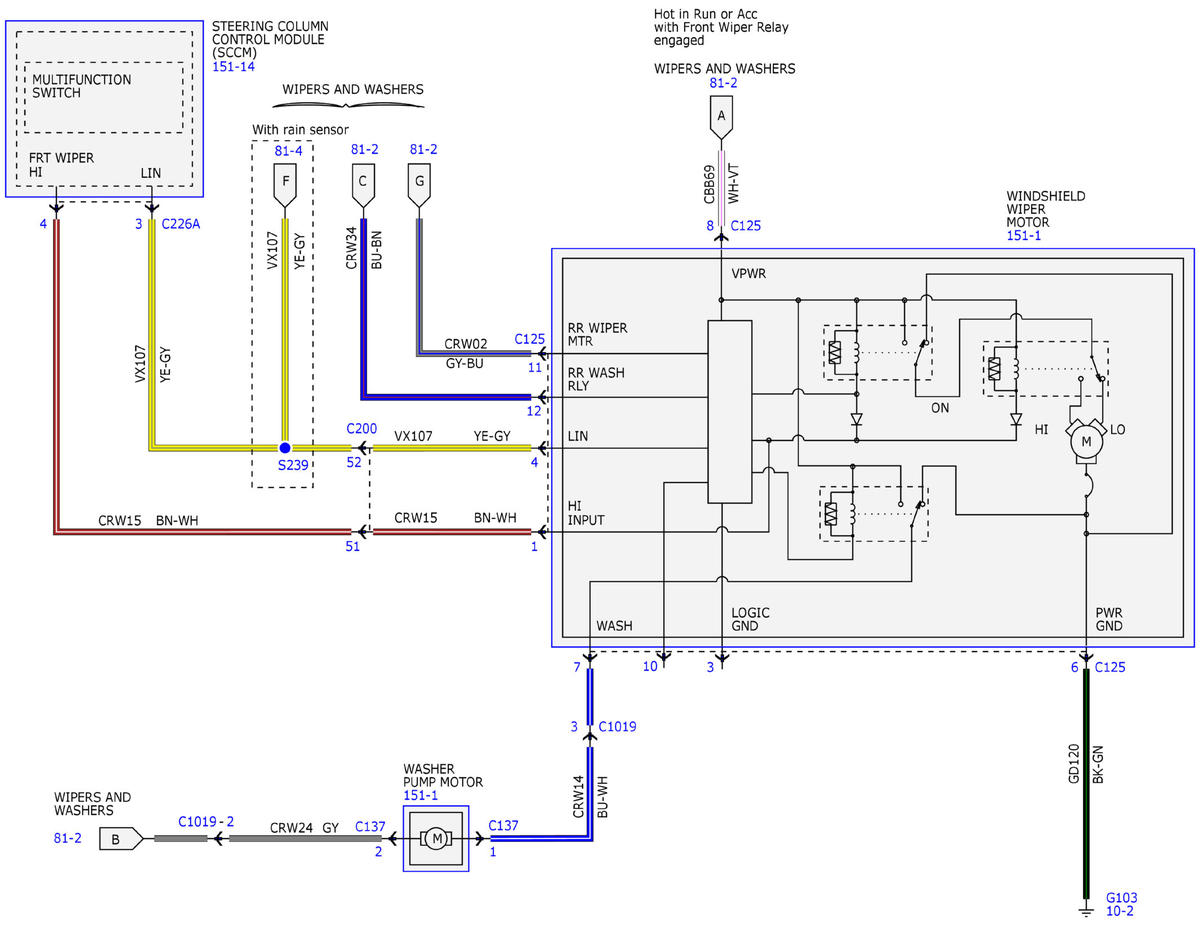

Fig 2: Wipers and Washers Wiring Diagram (2 of 4)
GFDWR91795Courtesy of FORD MOTOR COMPANY

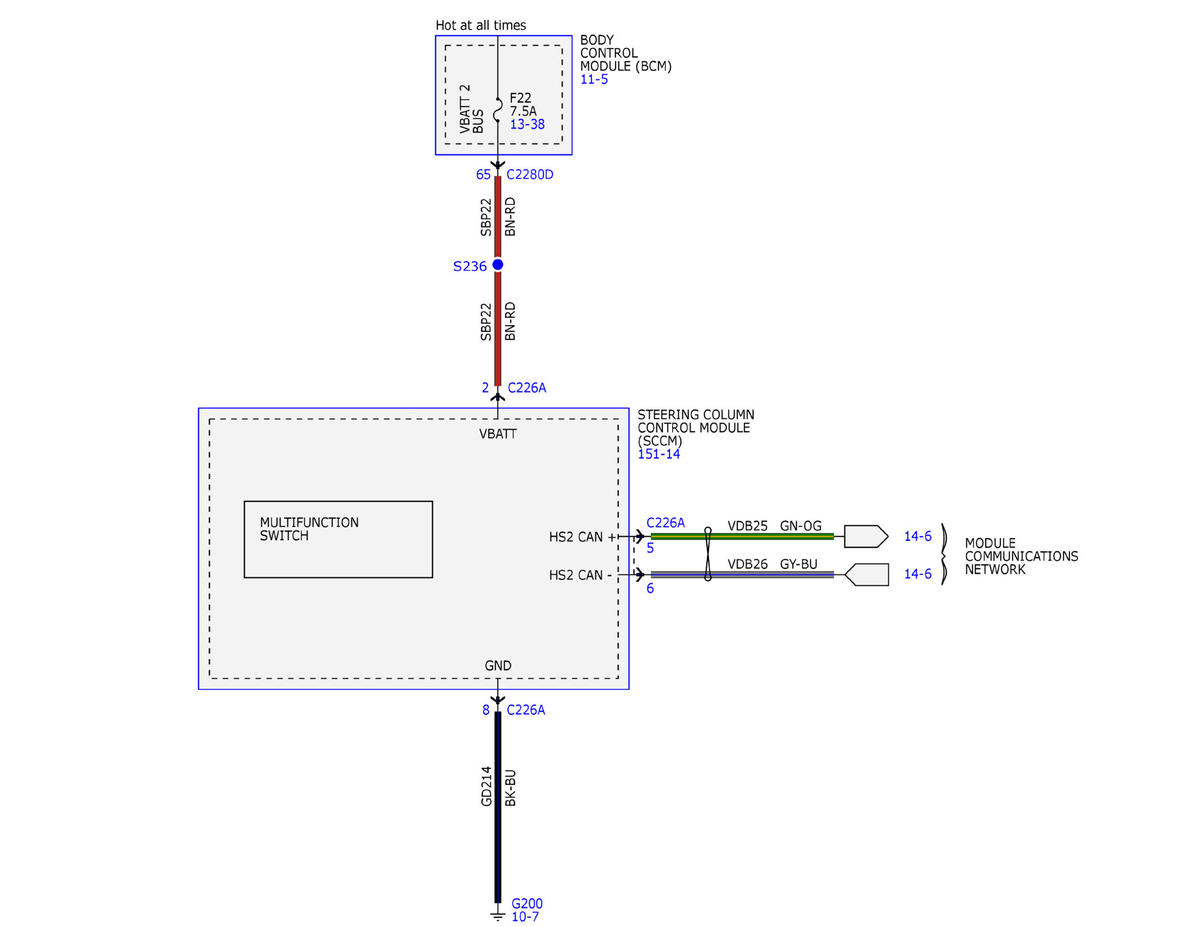

Fig 3: Wipers and Washers Wiring Diagram (3 of 4)
GFDWR91796Courtesy of FORD MOTOR COMPANY

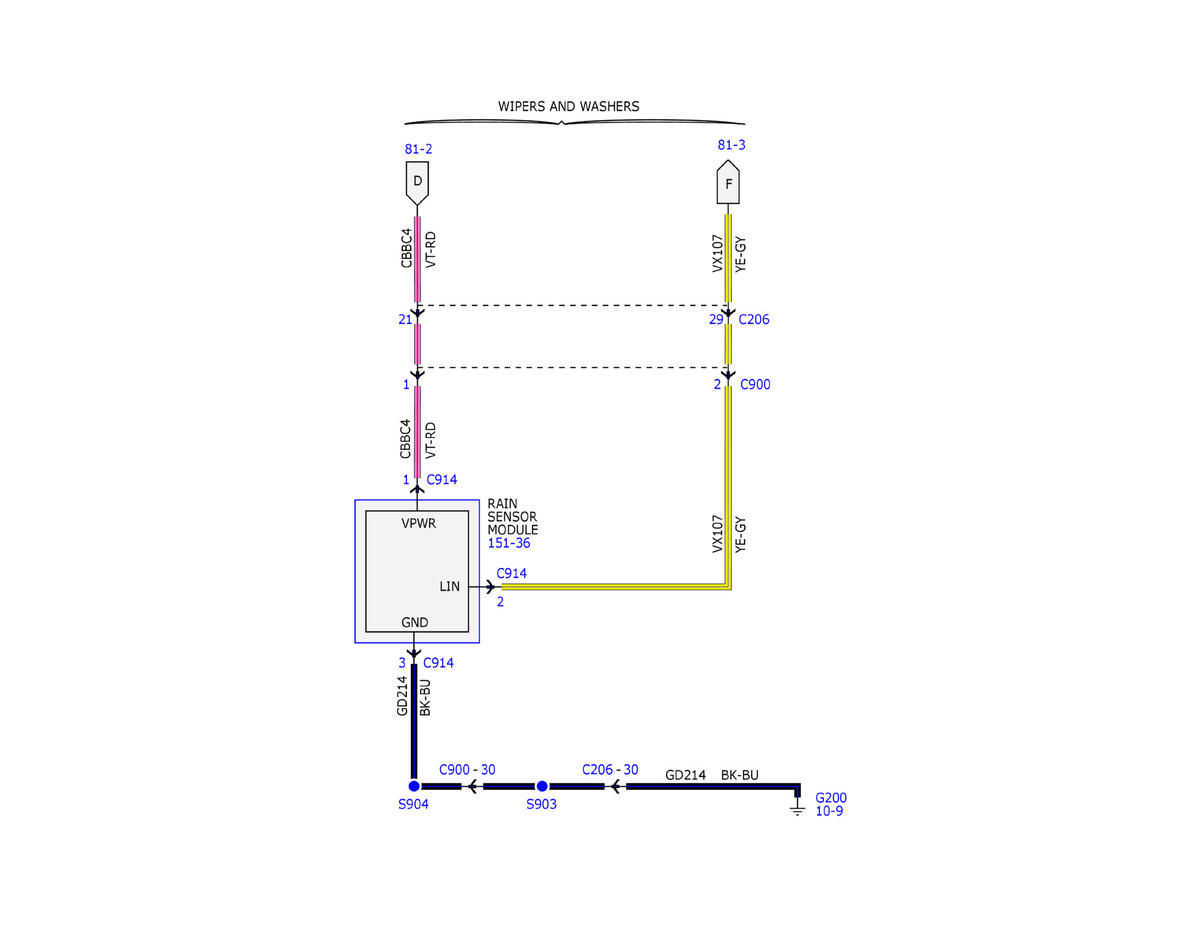

Fig 4: Wipers and Washers Wiring Diagram (4 of 4)
GFDWR91797Courtesy of FORD MOTOR COMPANY
