Power Windows

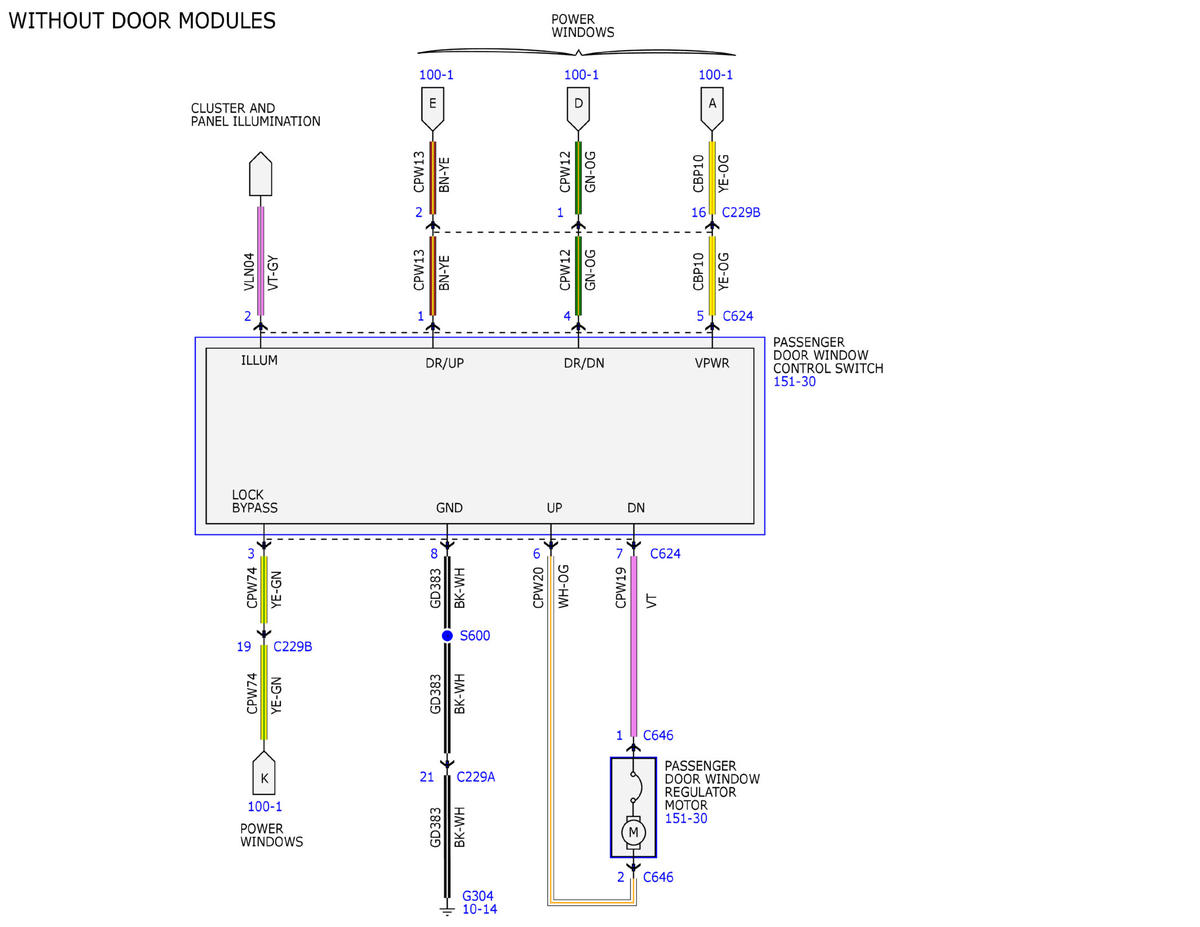

Fig 1: Power Windows Wiring Diagram (1 of 9)
GFDWR91722Courtesy of FORD MOTOR COMPANY

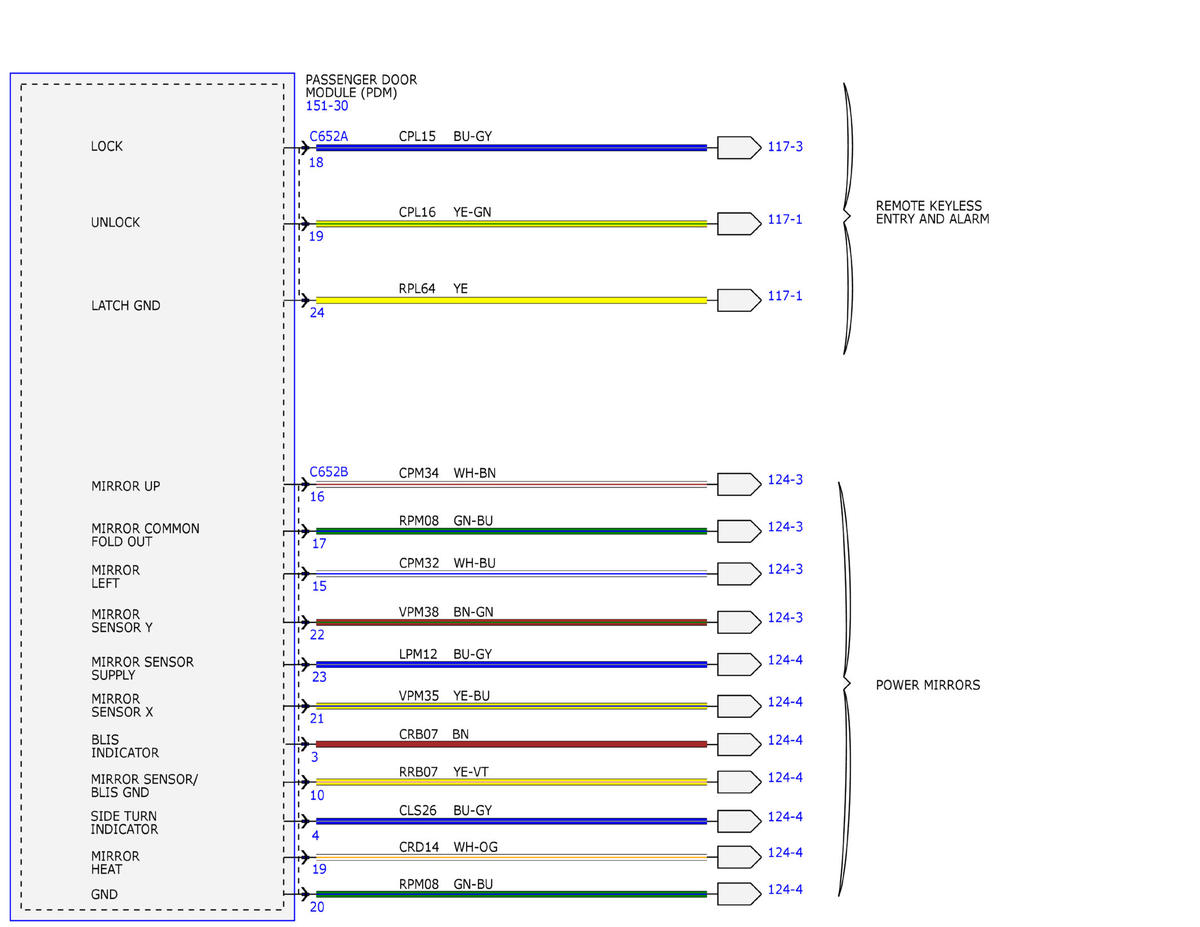

Fig 2: Power Windows Wiring Diagram (2 of 9)
GFDWR91723Courtesy of FORD MOTOR COMPANY
Fig 3: Power Windows Wiring Diagram (3 of 9)
GFDWR91724Courtesy of FORD MOTOR COMPANY

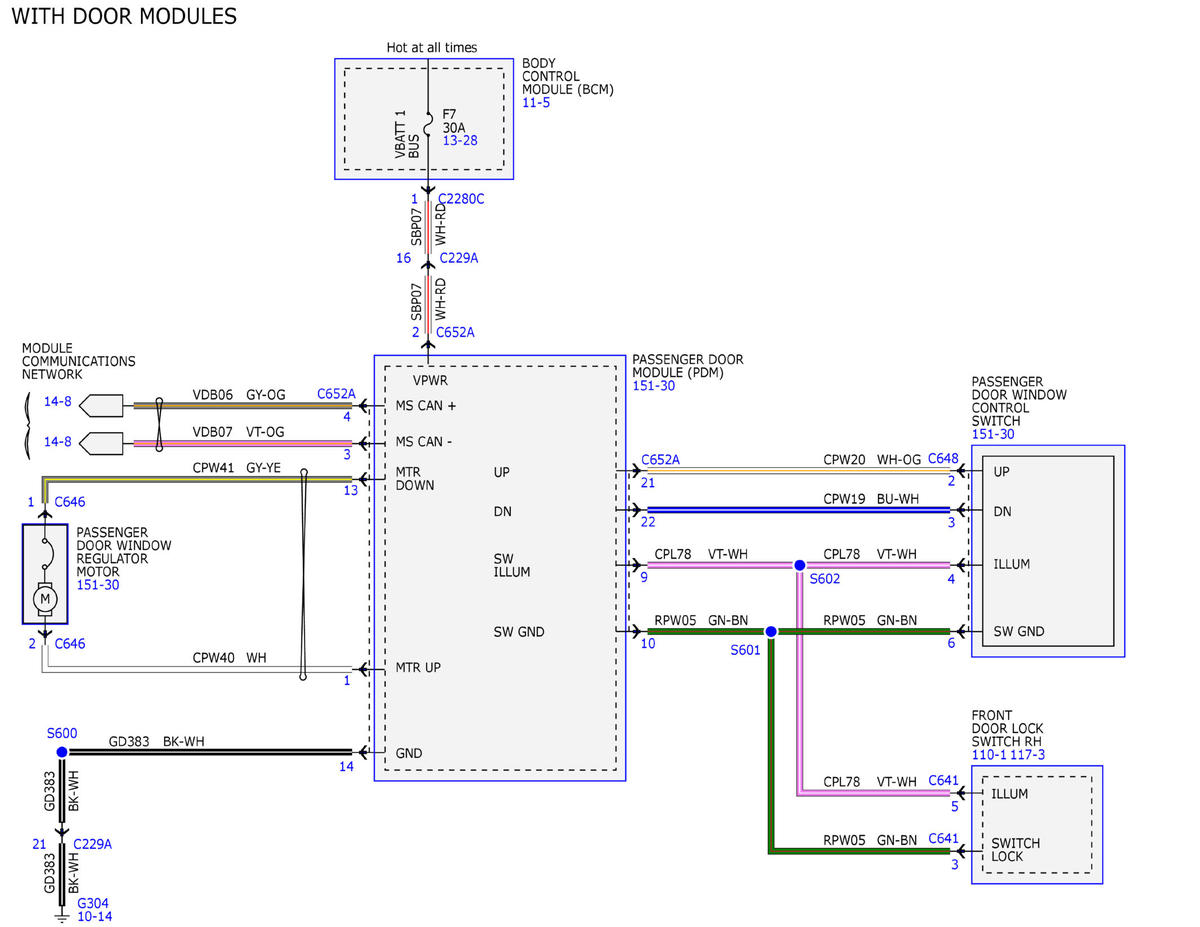

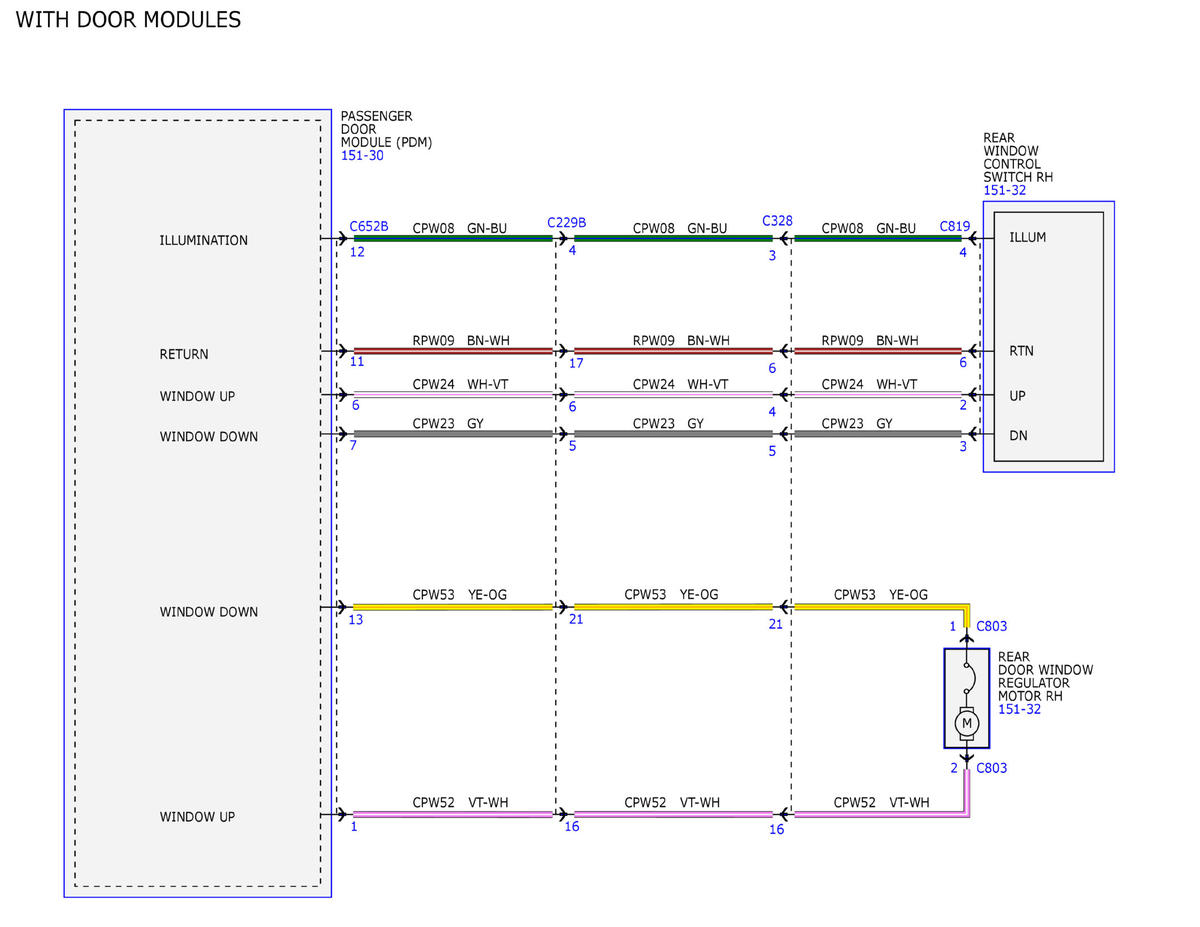

Fig 4: Power Windows Wiring Diagram (4 of 9)
GFDWR91725Courtesy of FORD MOTOR COMPANY

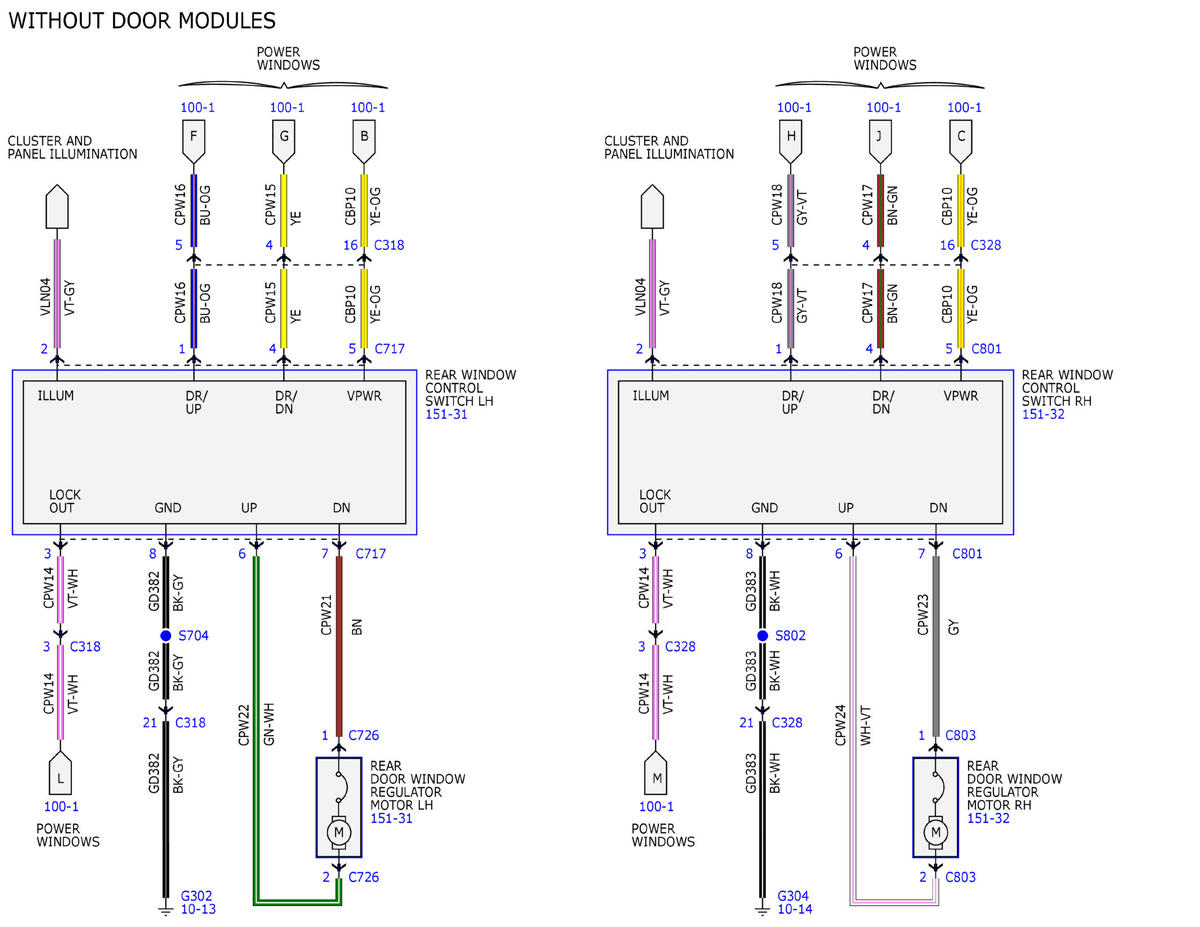

Fig 5: Power Windows Wiring Diagram (5 of 9)
GFDWR91726Courtesy of FORD MOTOR COMPANY

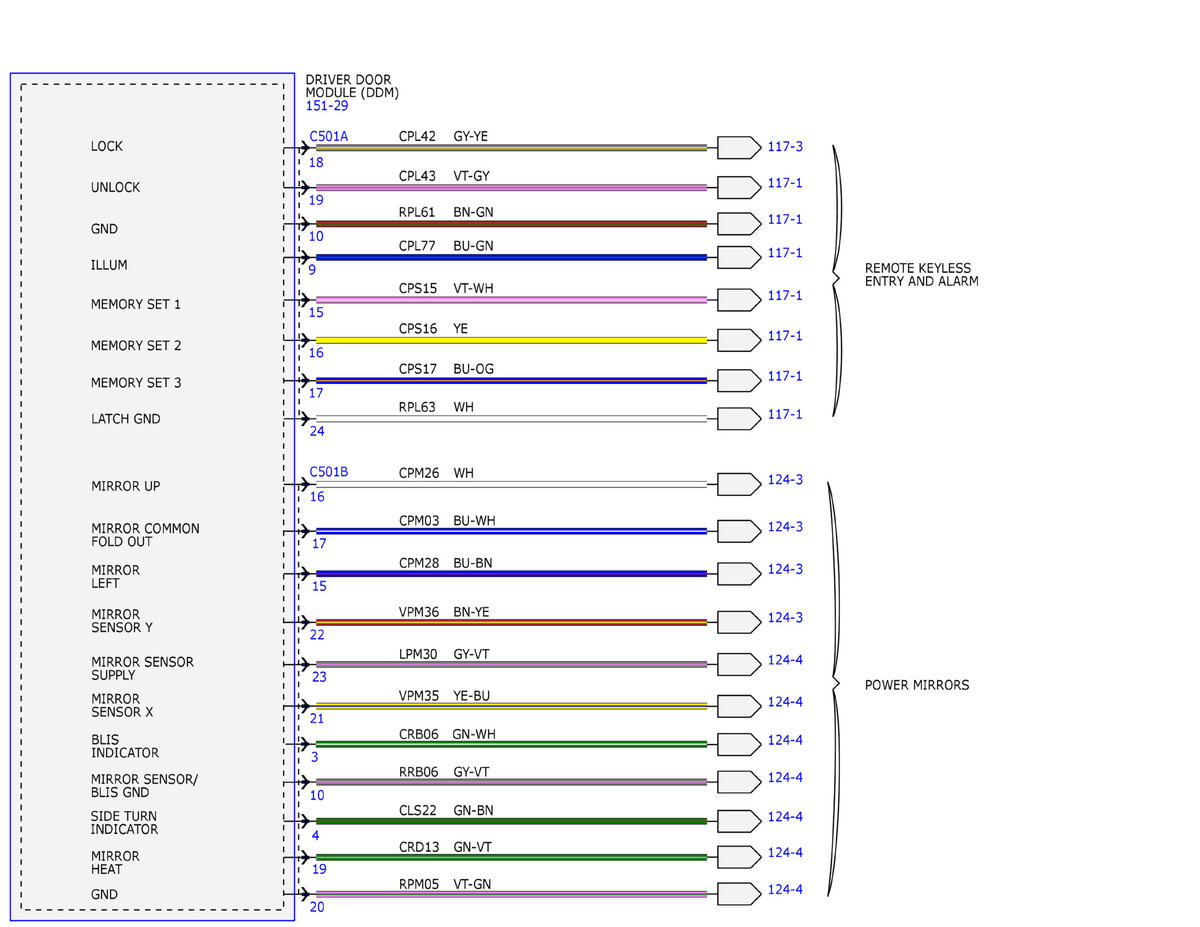

Fig 6: Power Windows Wiring Diagram (6 of 9)
GFDWR91727Courtesy of FORD MOTOR COMPANY

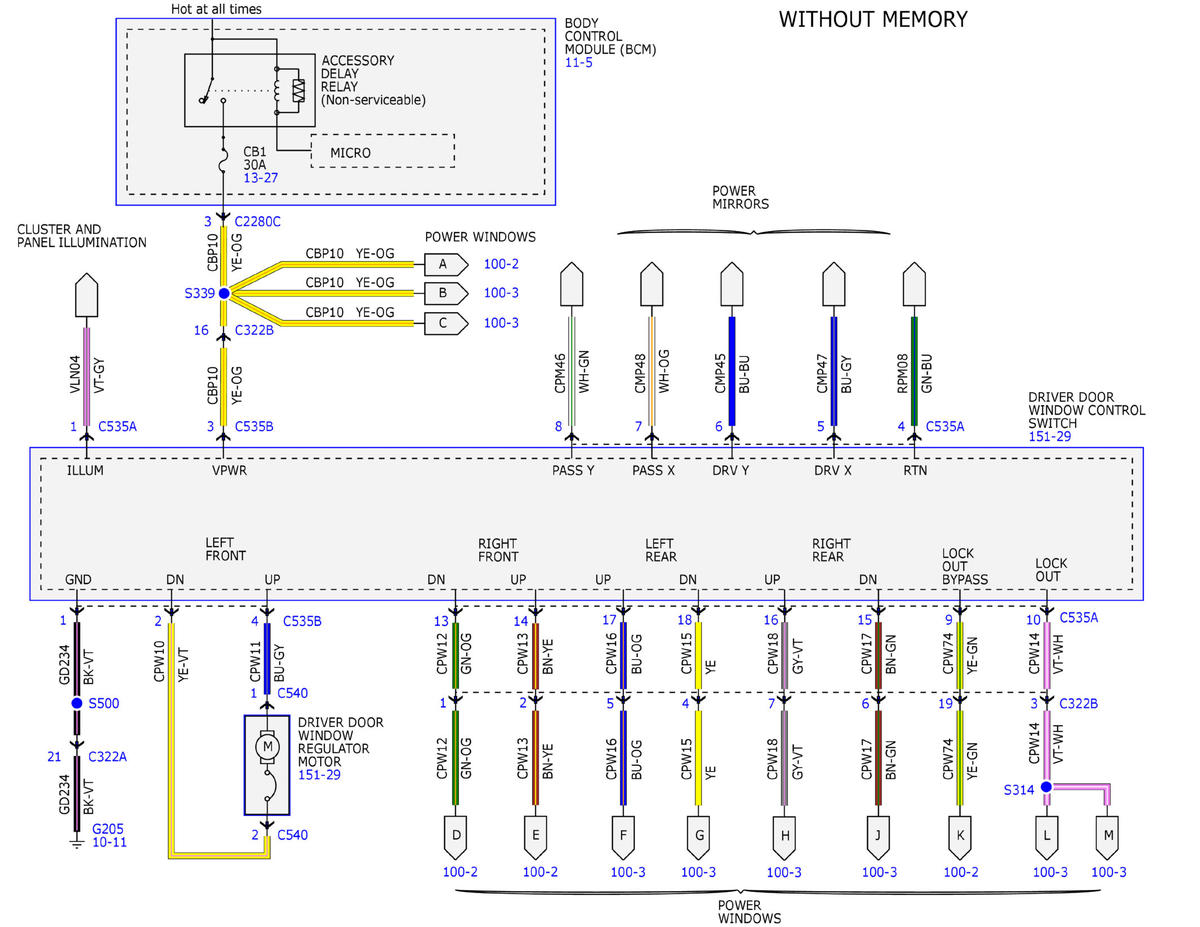

Fig 7: Power Windows Wiring Diagram (7 of 9)
GFDWR91728Courtesy of FORD MOTOR COMPANY

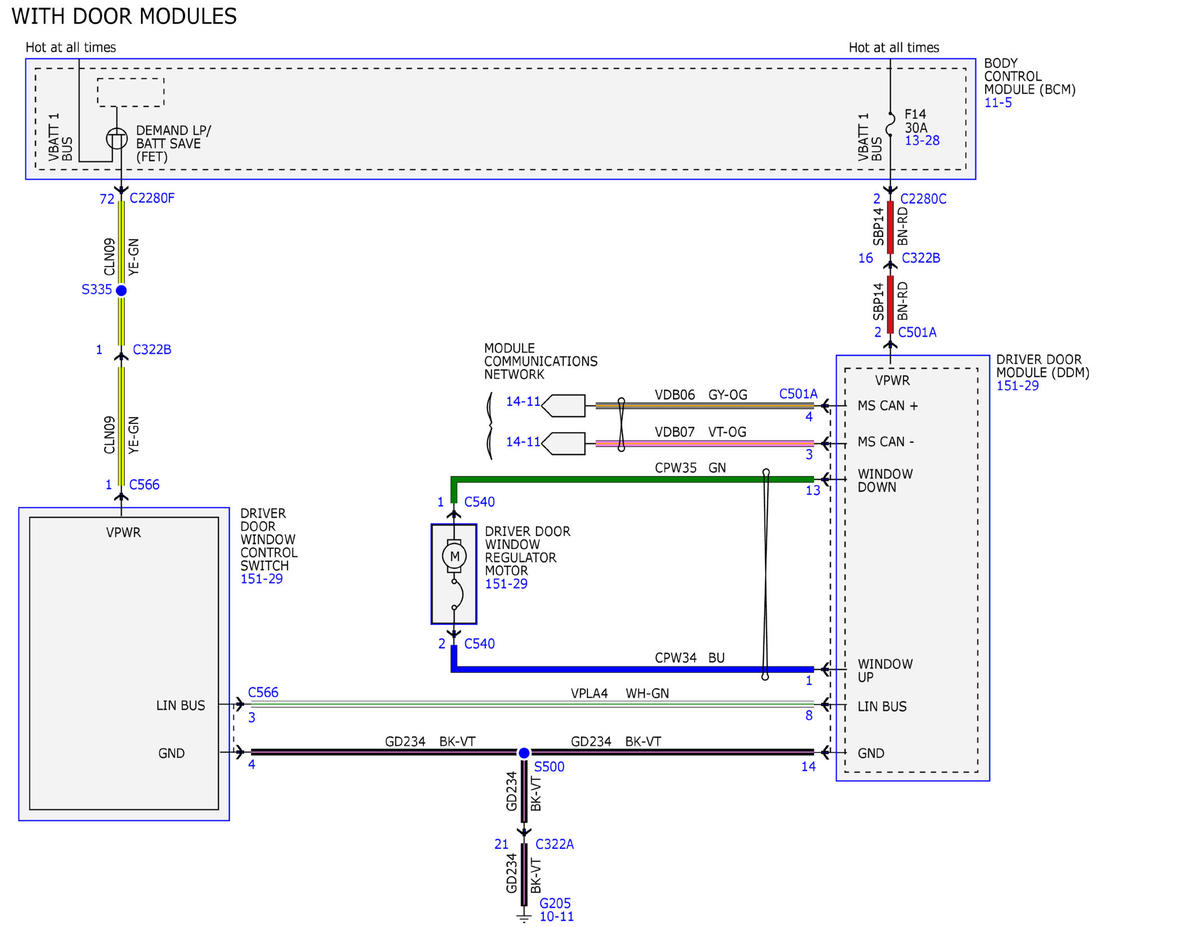

Fig 8: Power Windows Wiring Diagram (8 of 9)
GFDWR91729Courtesy of FORD MOTOR COMPANY

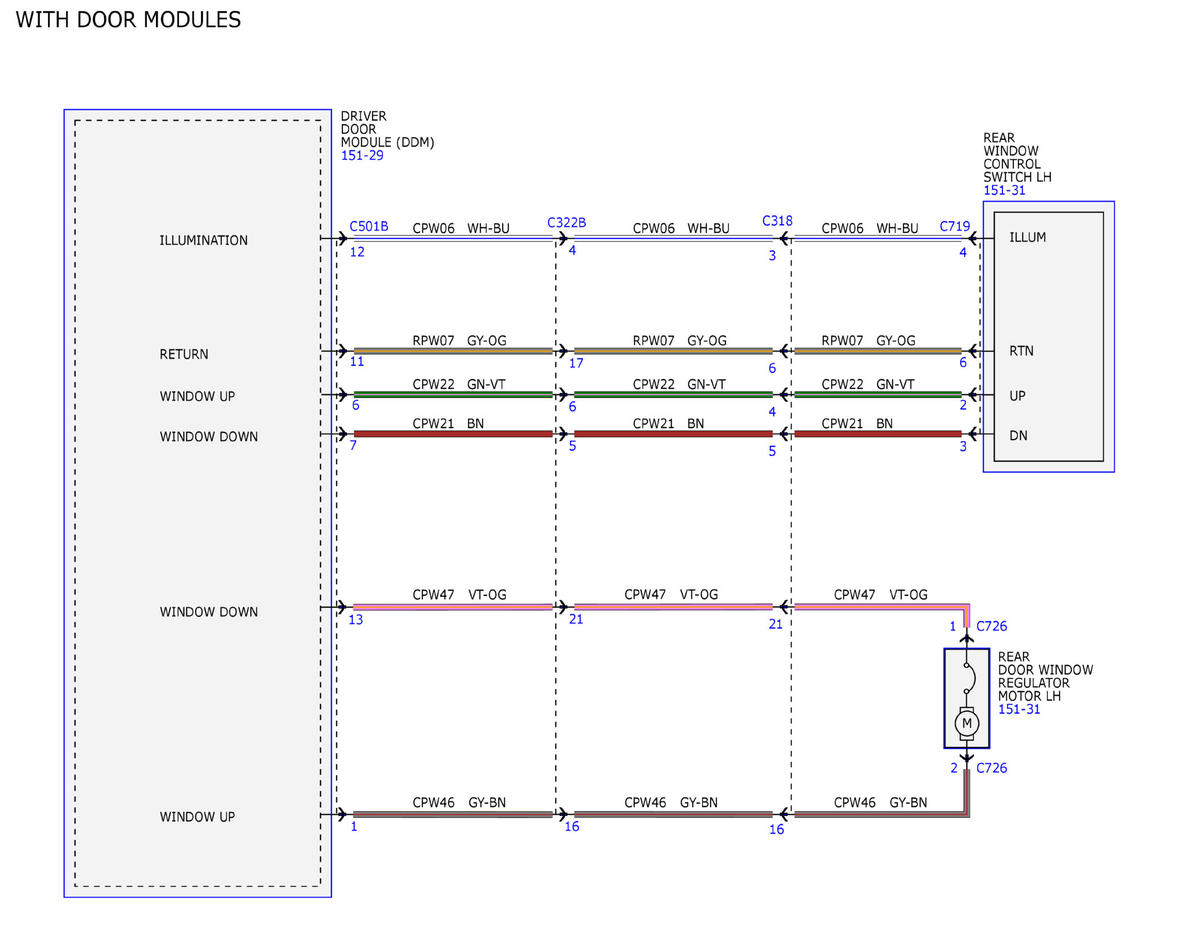

Fig 9: Power Windows Wiring Diagram (9 of 9)
GFDWR91730Courtesy of FORD MOTOR COMPANY
