Instrument Cluster

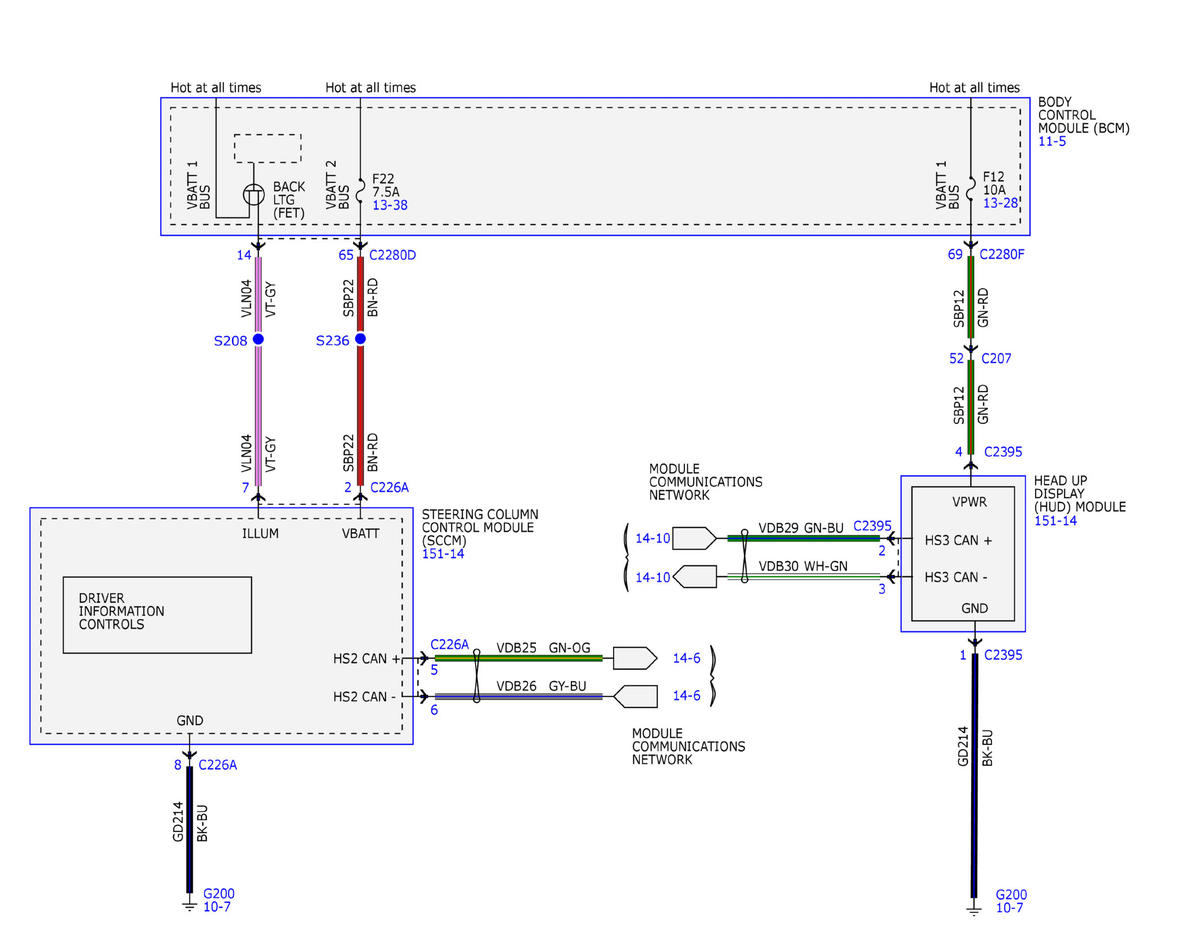

Fig 1: Instrument Cluster Wiring Diagram (1 of 3)
GFDWR91617Courtesy of FORD MOTOR COMPANY

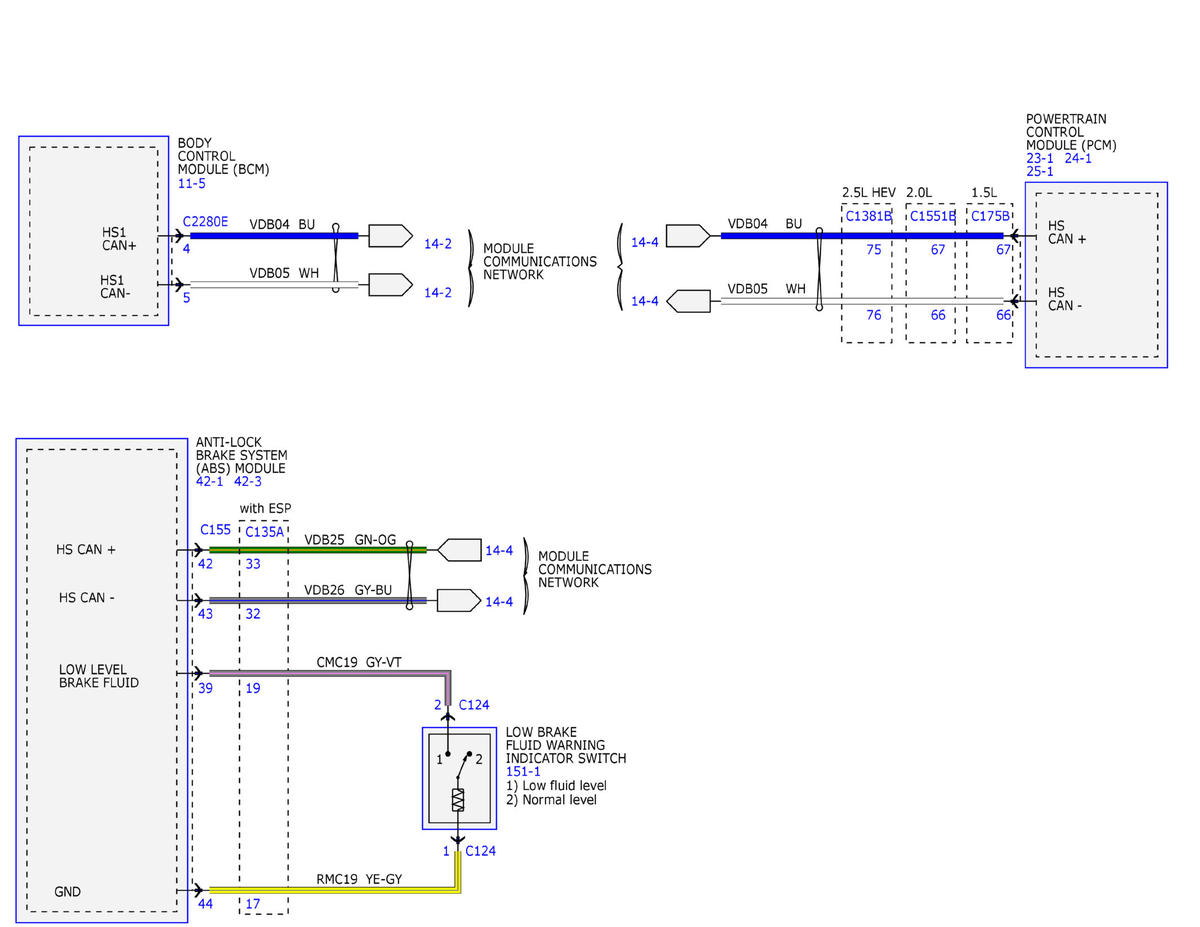

Fig 2: Instrument Cluster Wiring Diagram (2 of 3)
GFDWR91618Courtesy of FORD MOTOR COMPANY

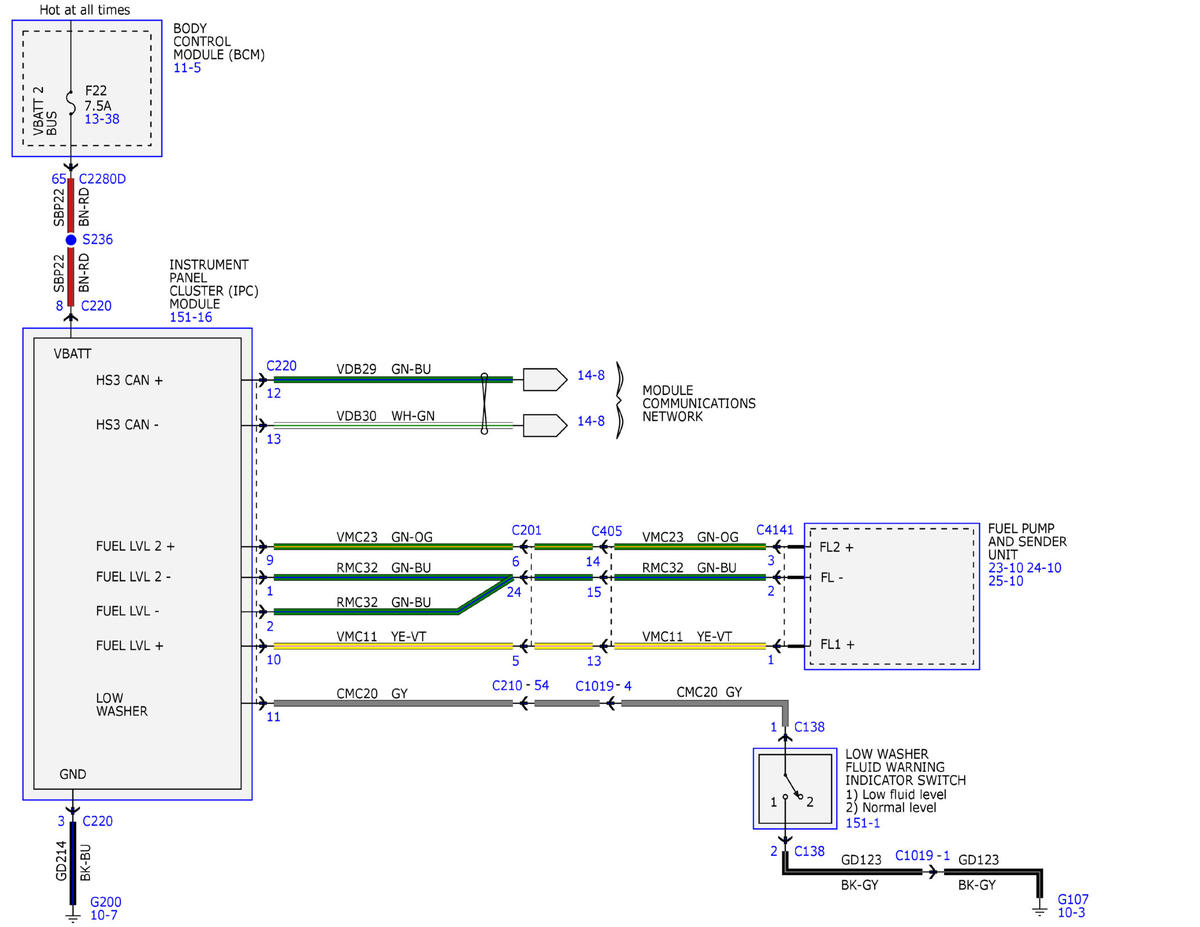

Fig 3: Instrument Cluster Wiring Diagram (3 of 3)
GFDWR91619Courtesy of FORD MOTOR COMPANY
