Heated Window

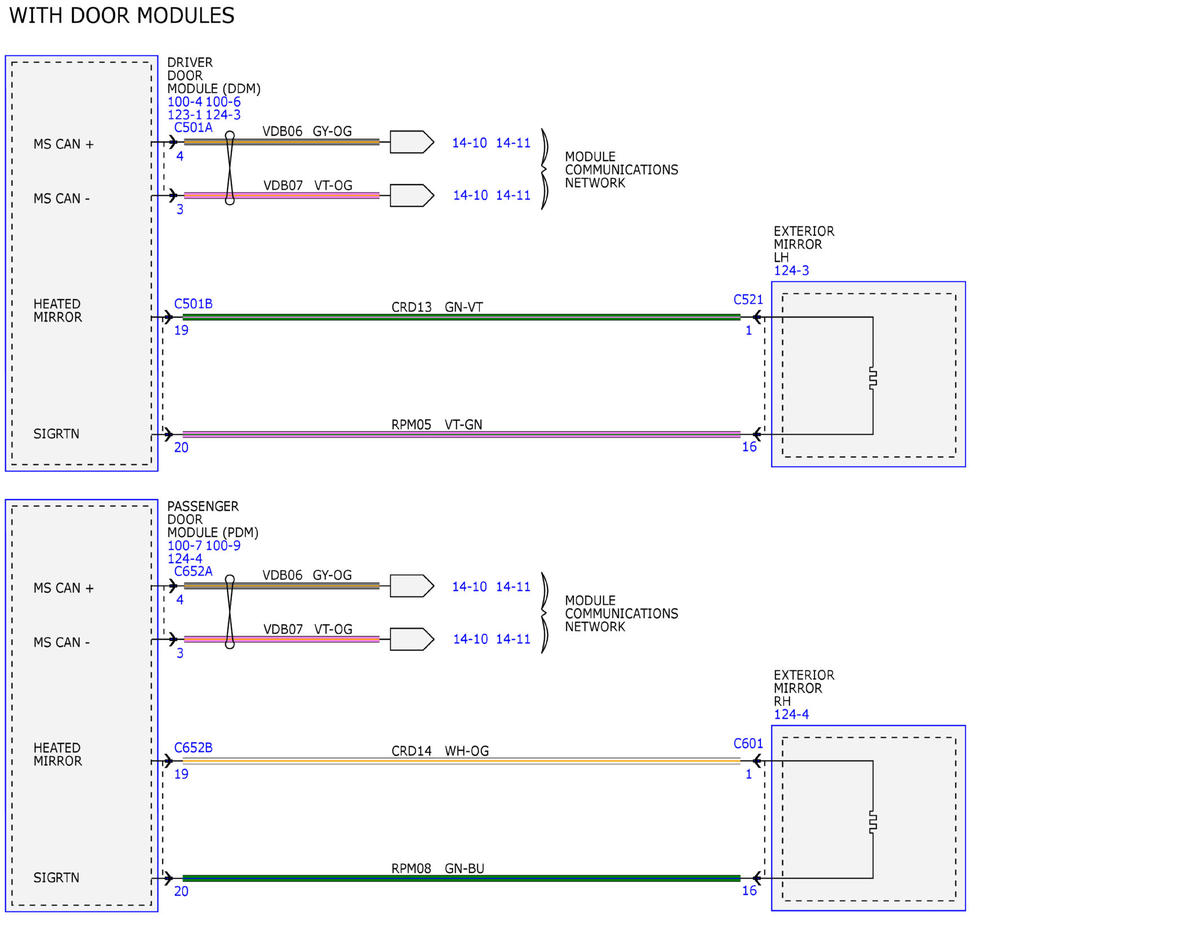

Fig 1: Heated Window Wiring Diagram (1 of 3)
GFDWR91610Courtesy of FORD MOTOR COMPANY

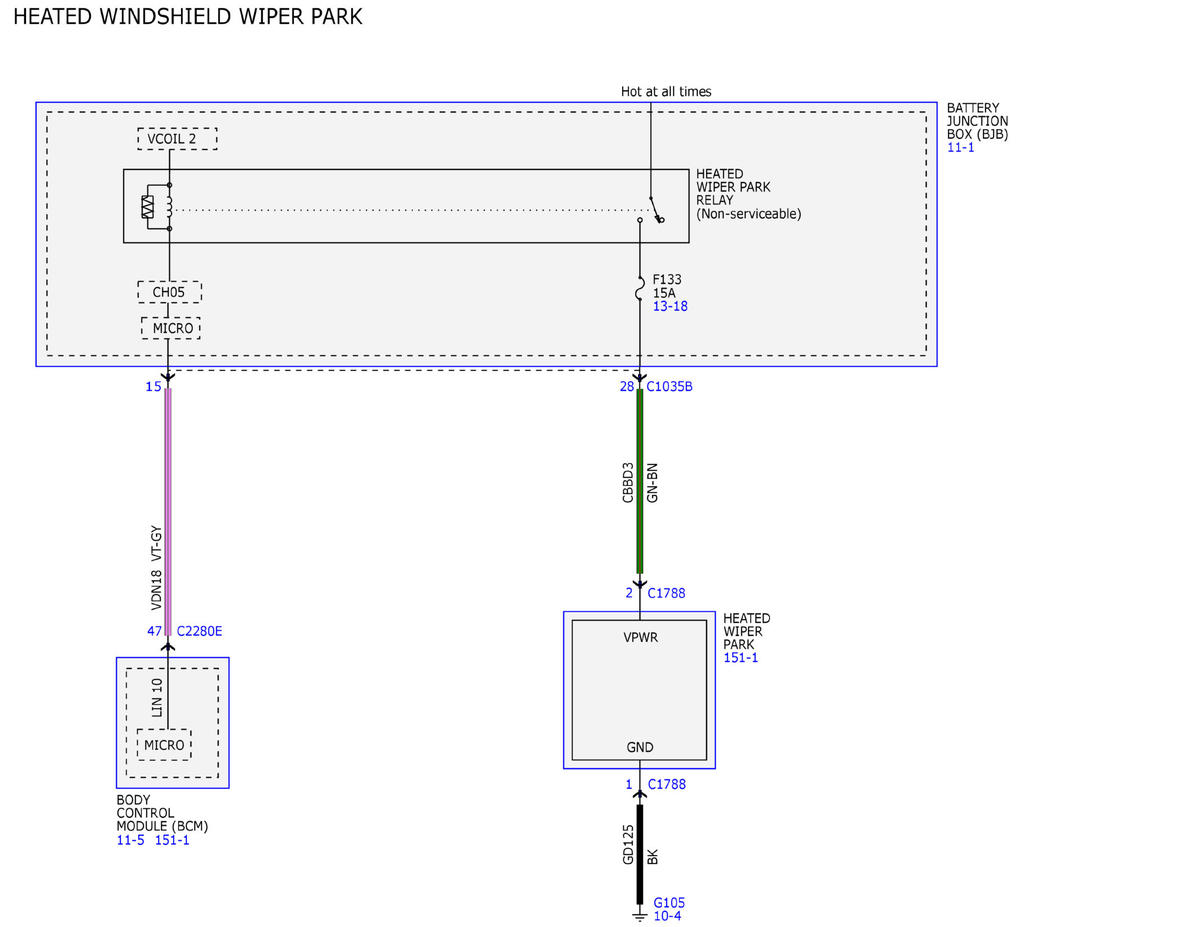

Fig 2: Heated Window Wiring Diagram (2 of 3)
GFDWR91611Courtesy of FORD MOTOR COMPANY

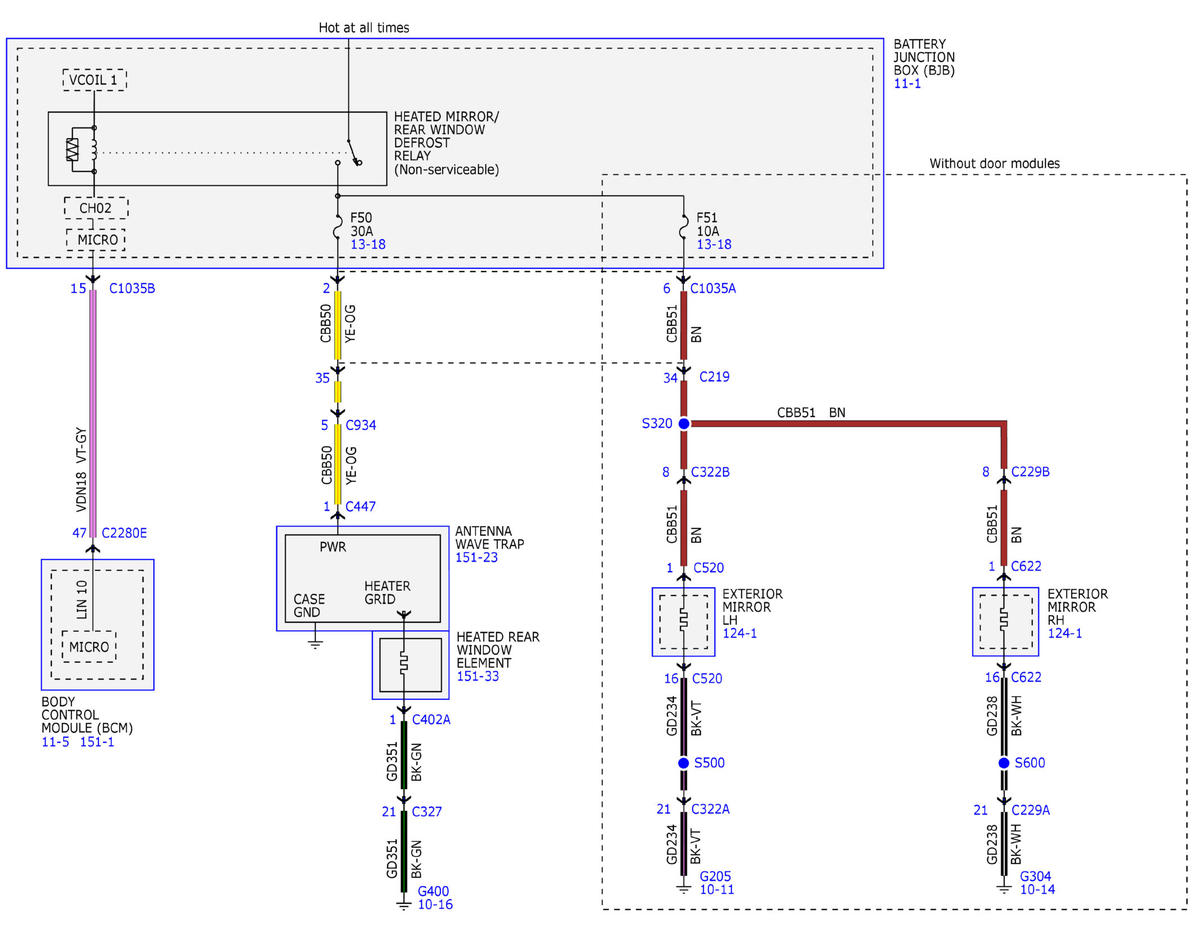

Fig 3: Heated Window Wiring Diagram (3 of 3)
GFDWR91612Courtesy of FORD MOTOR COMPANY
