Audio System/Navigation

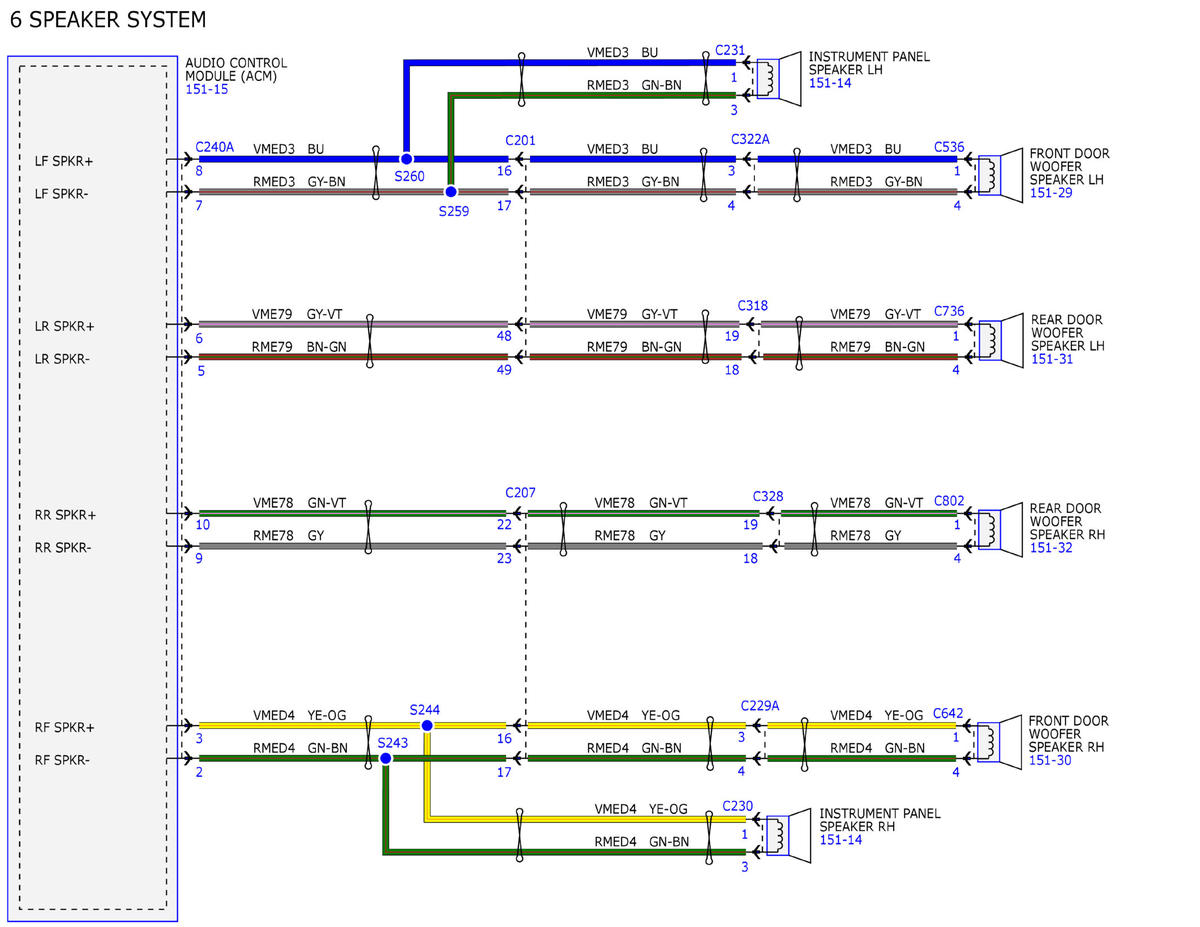

Fig 1: Audio System/Navigation Wiring Diagram (1 of 11)
GFDWR91495Courtesy of FORD MOTOR COMPANY

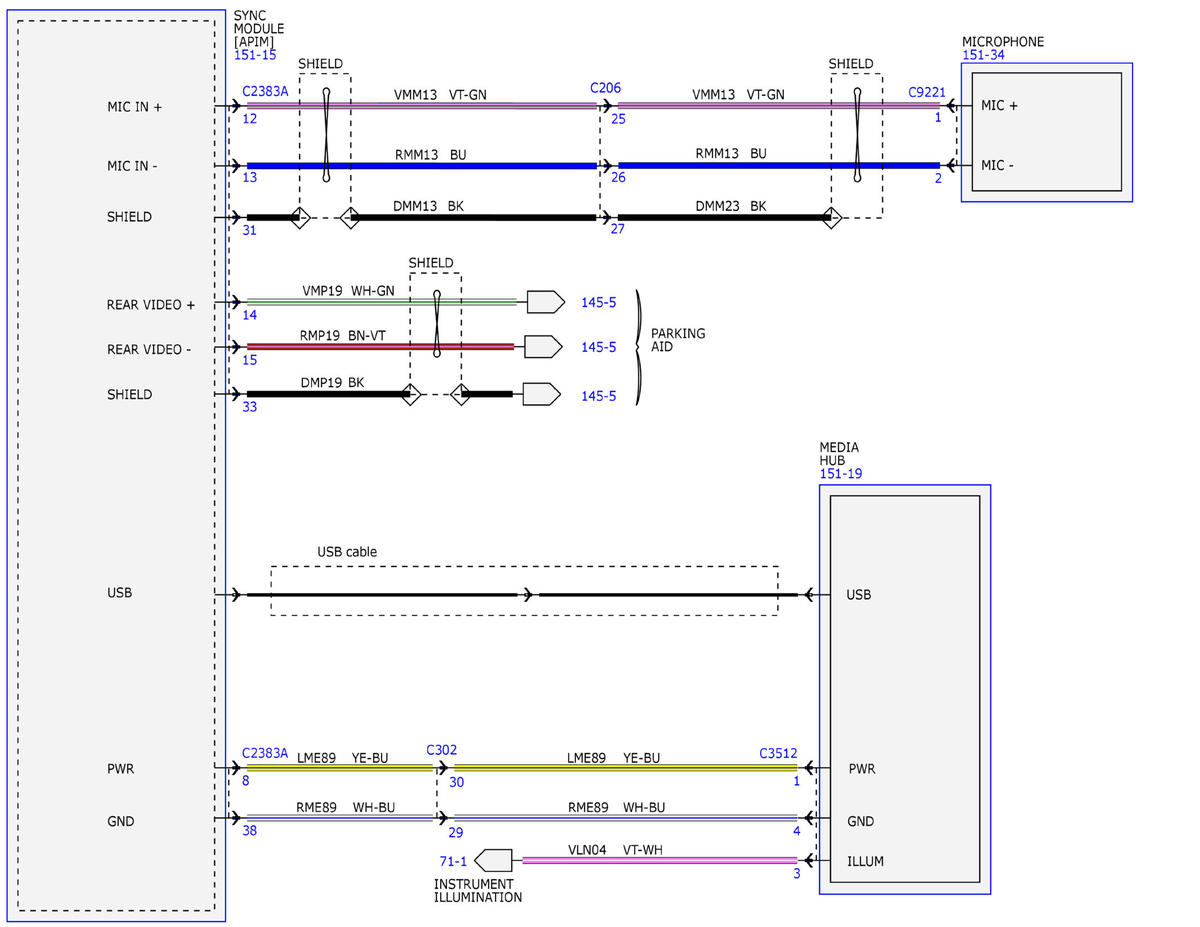

Fig 2: Audio System/Navigation Wiring Diagram (2 of 11)
GFDWR91496Courtesy of FORD MOTOR COMPANY

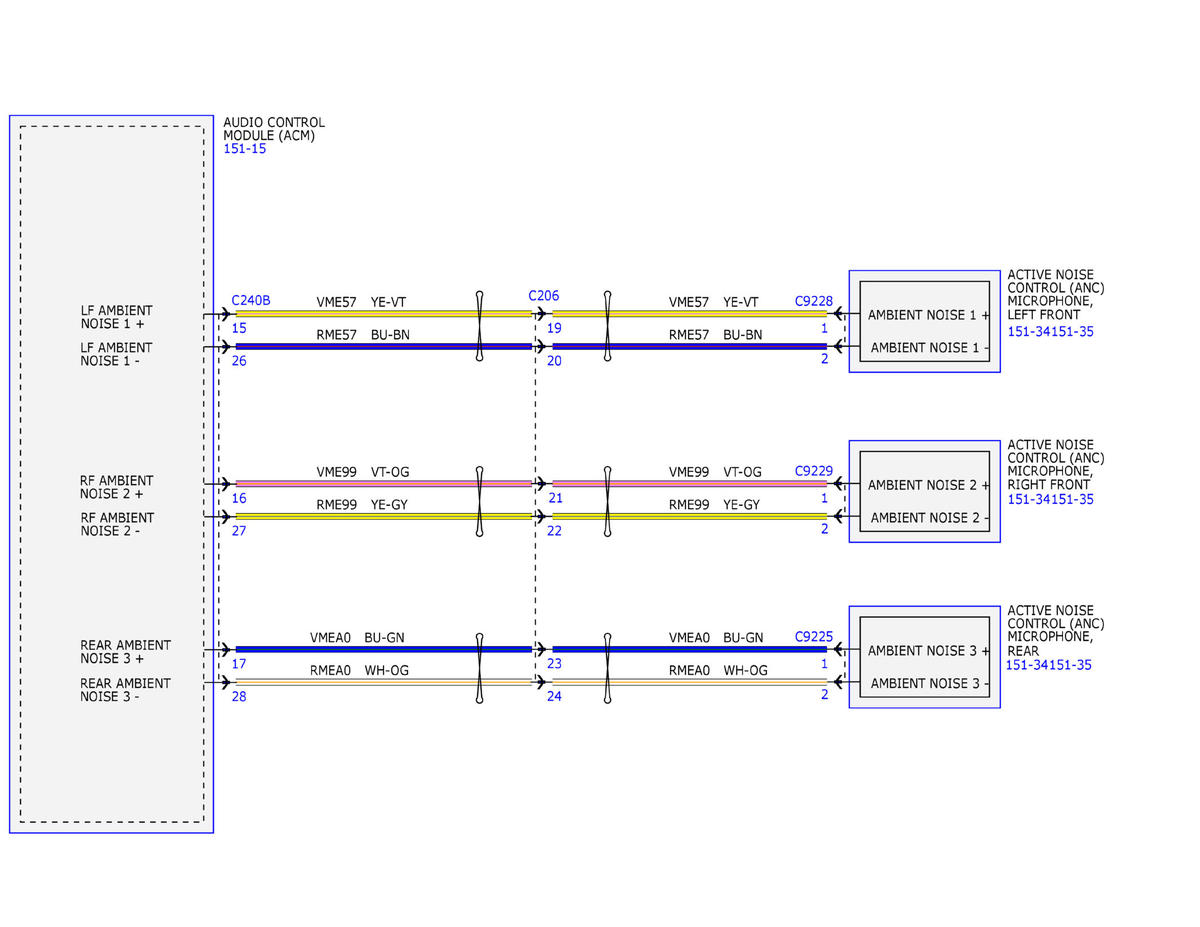

Fig 3: Audio System/Navigation Wiring Diagram (3 of 11)
GFDWR91497Courtesy of FORD MOTOR COMPANY

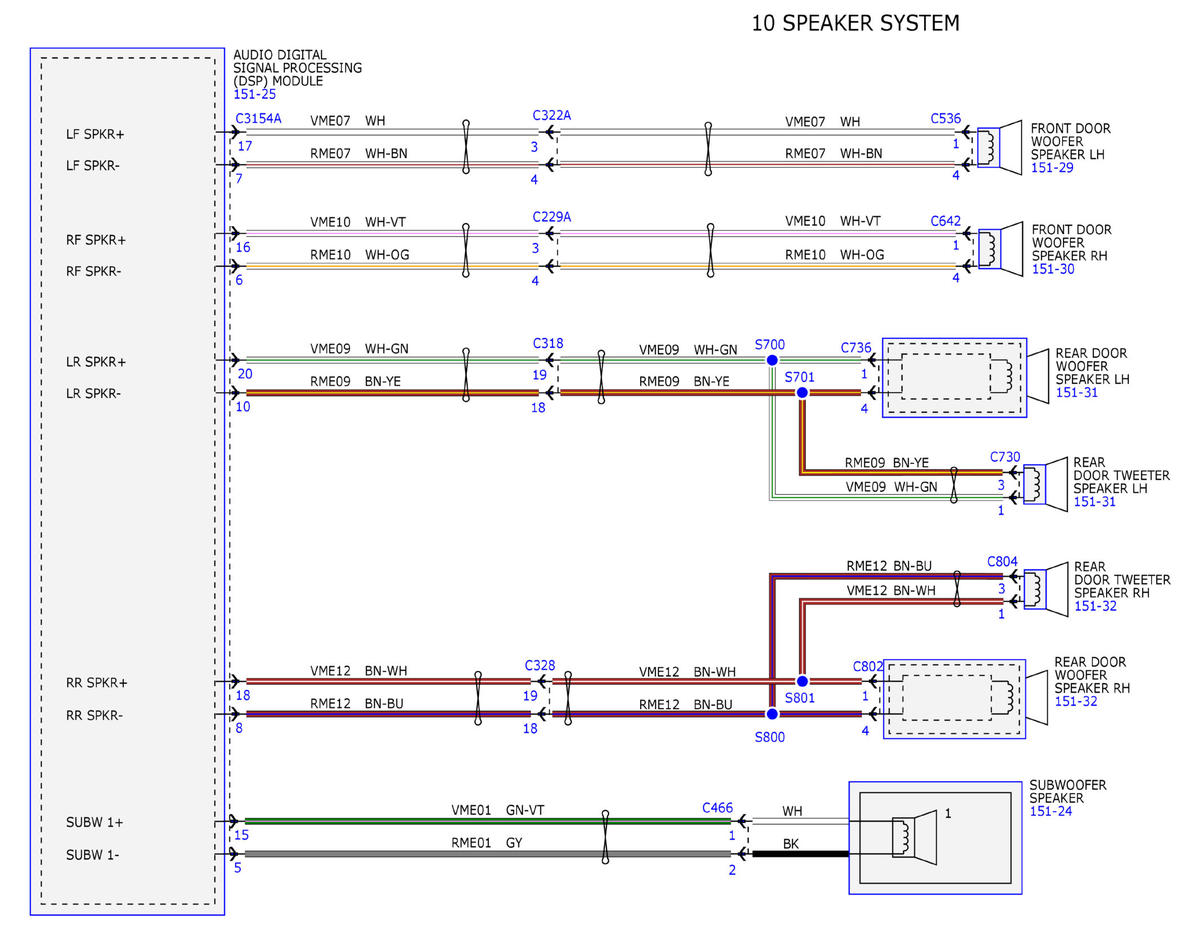

Fig 4: Audio System/Navigation Wiring Diagram (4 of 11)
GFDWR91498Courtesy of FORD MOTOR COMPANY

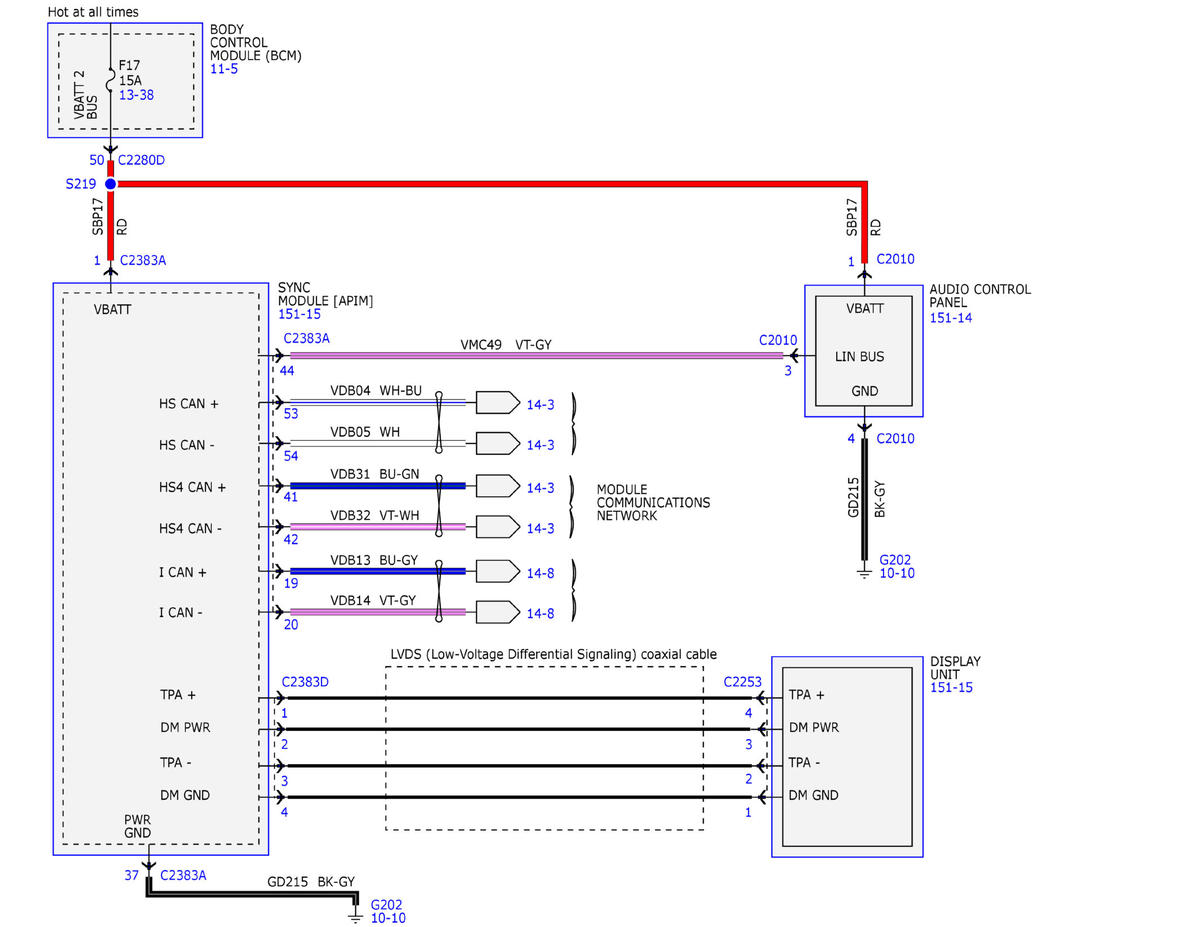

Fig 5: Audio System/Navigation Wiring Diagram (5 of 11)
GFDWR91499Courtesy of FORD MOTOR COMPANY

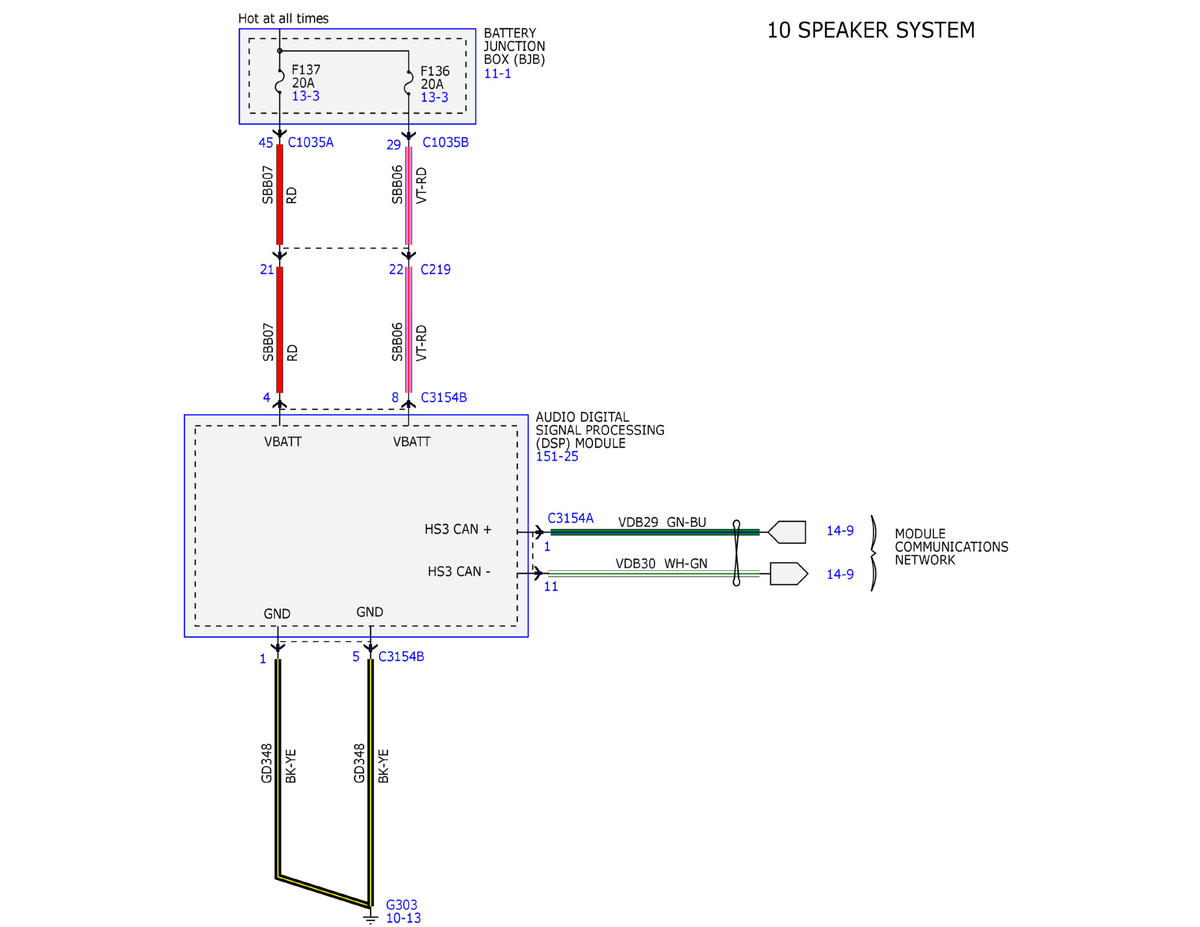

Fig 6: Audio System/Navigation Wiring Diagram (6 of 11)
GFDWR91500Courtesy of FORD MOTOR COMPANY

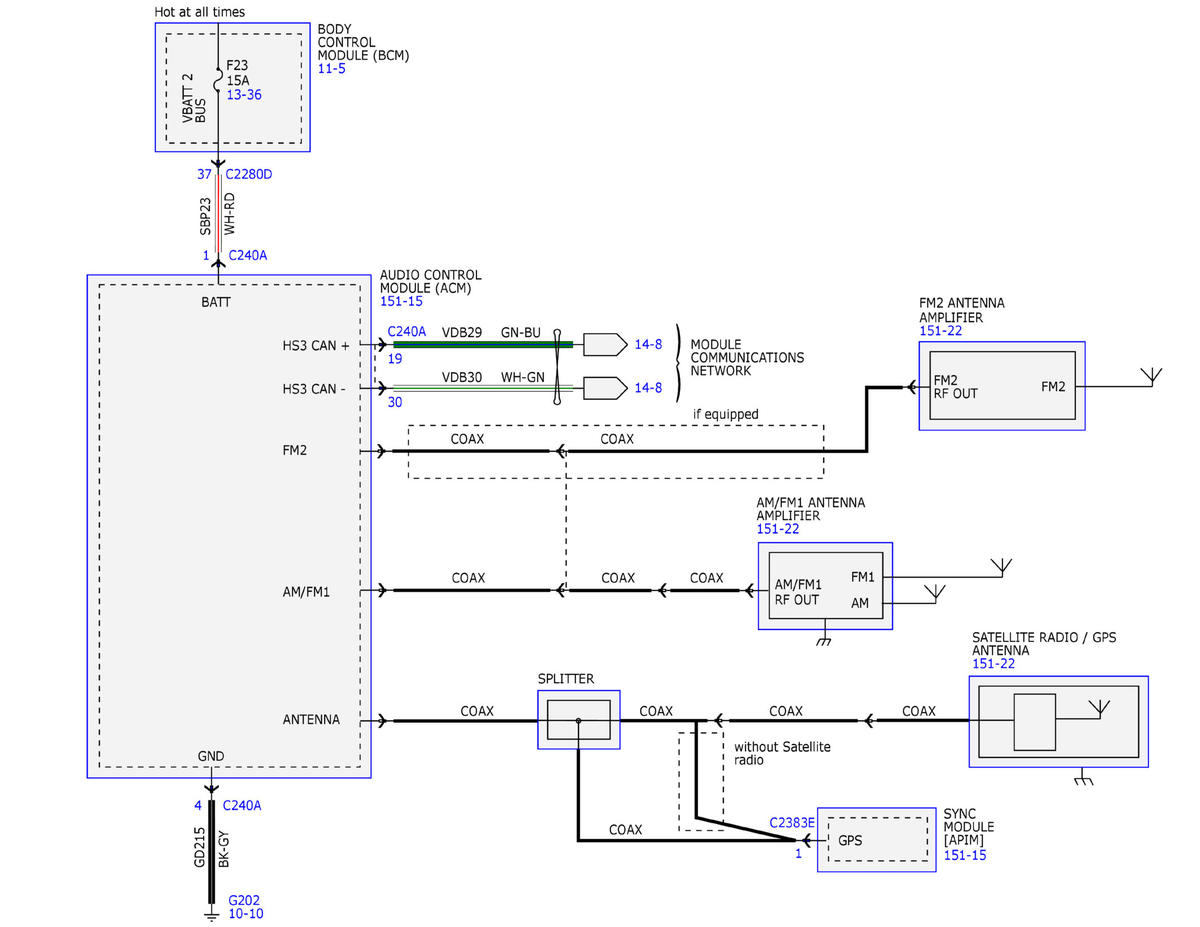

Fig 7: Audio System/Navigation Wiring Diagram (7 of 11)
GFDWR91501Courtesy of FORD MOTOR COMPANY

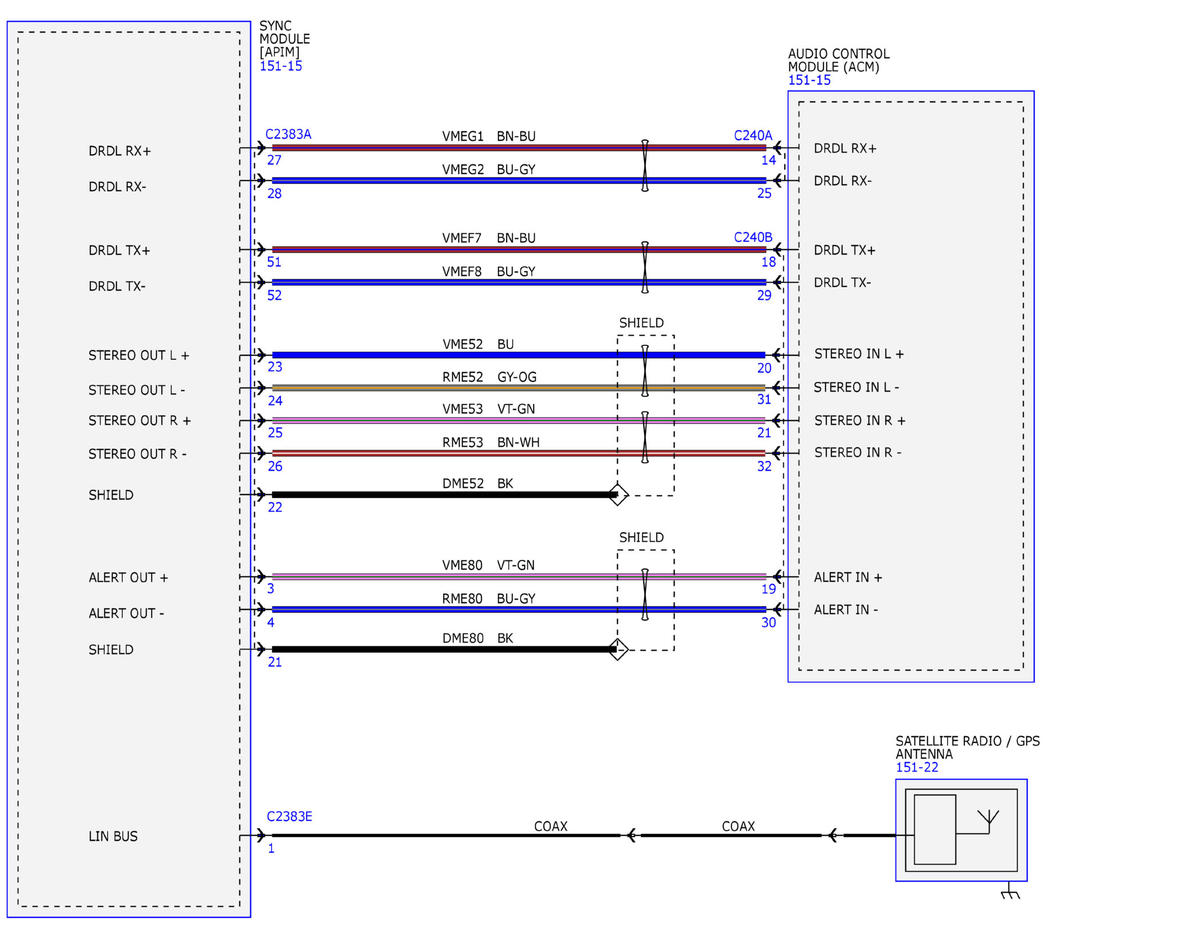

Fig 8: Audio System/Navigation Wiring Diagram (8 of 11)
GFDWR91502Courtesy of FORD MOTOR COMPANY

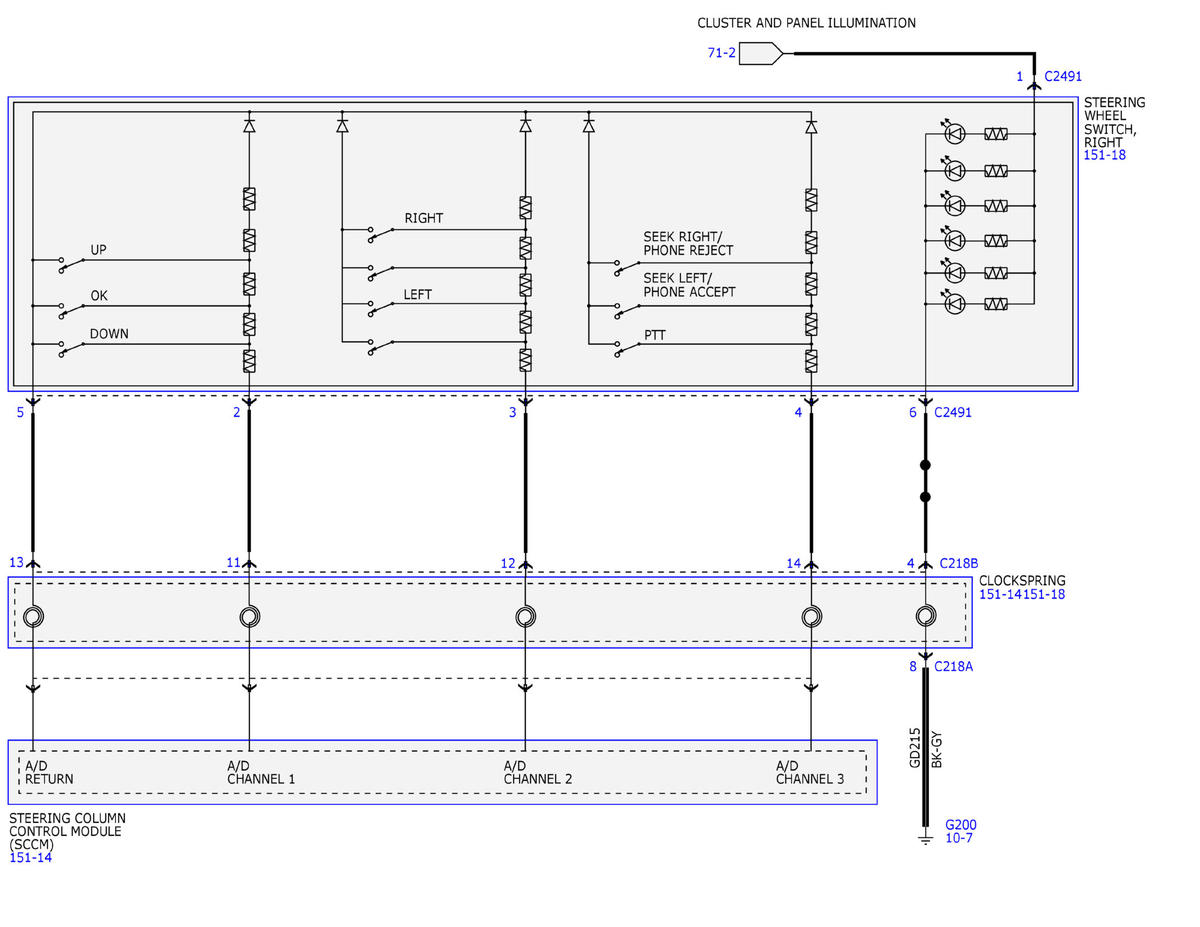

Fig 9: Audio System/Navigation Wiring Diagram (9 of 11)
GFDWR91503Courtesy of FORD MOTOR COMPANY

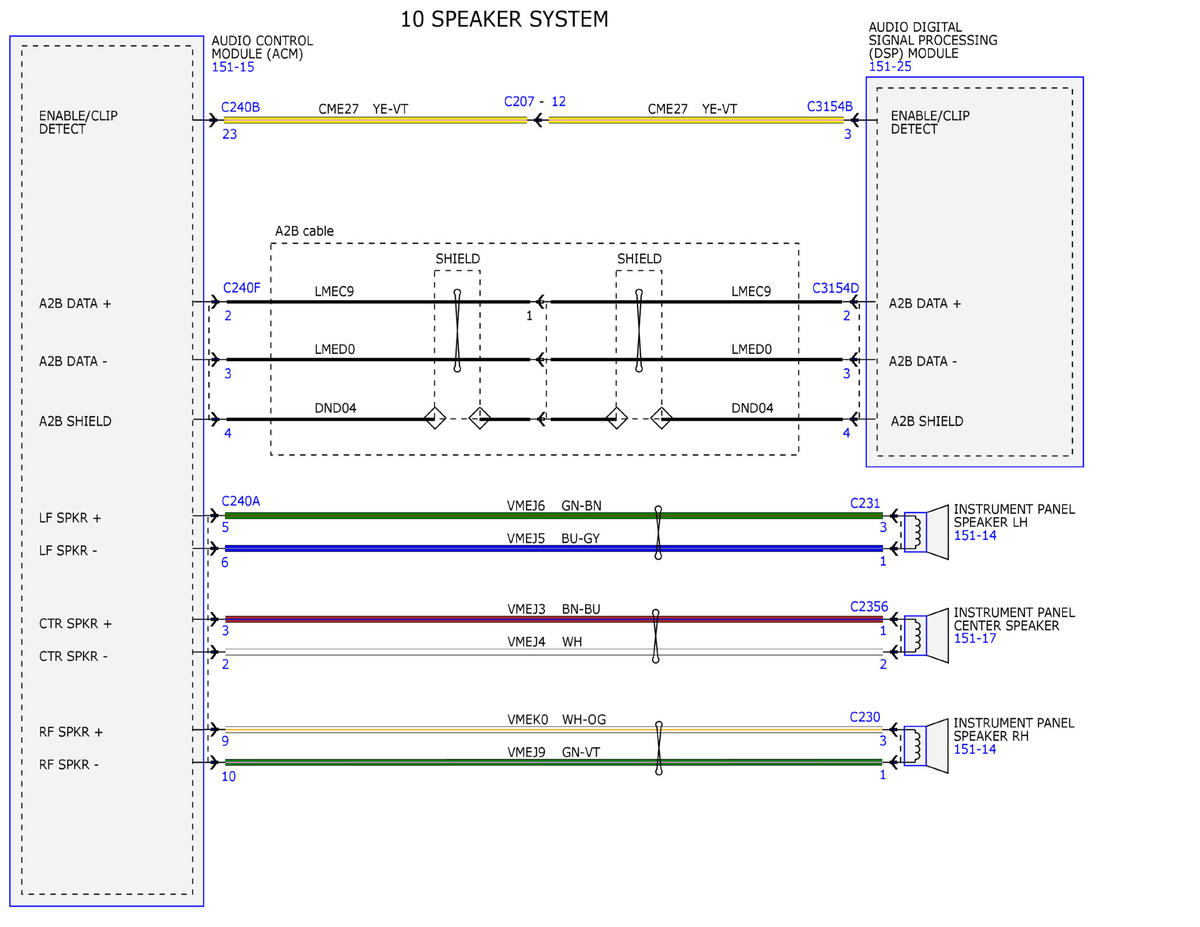

Fig 10: Audio System/Navigation Wiring Diagram (10 of 11)
GFDWR91504Courtesy of FORD MOTOR COMPANY

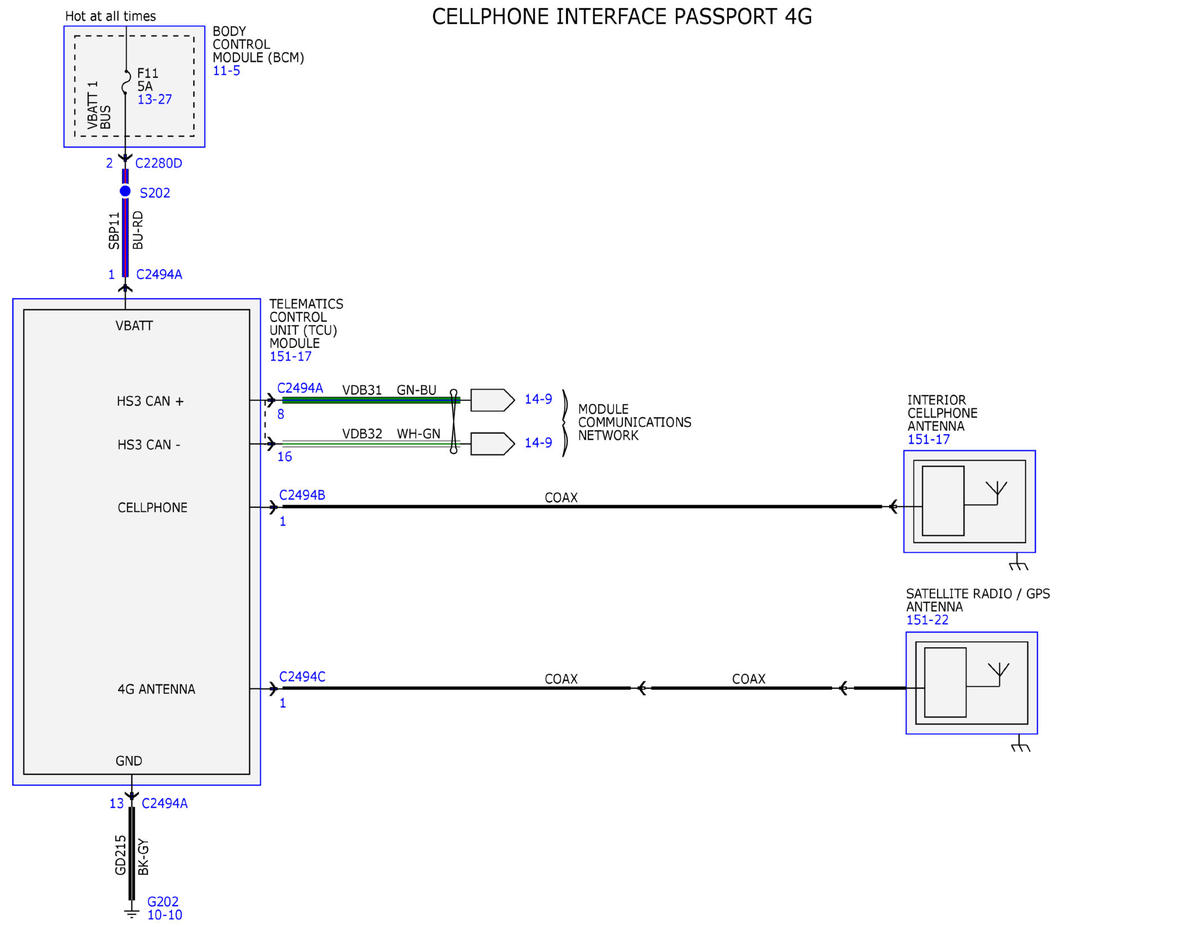

Fig 11: Audio System/Navigation Wiring Diagram (11 of 11)
GFDWR91505Courtesy of FORD MOTOR COMPANY
