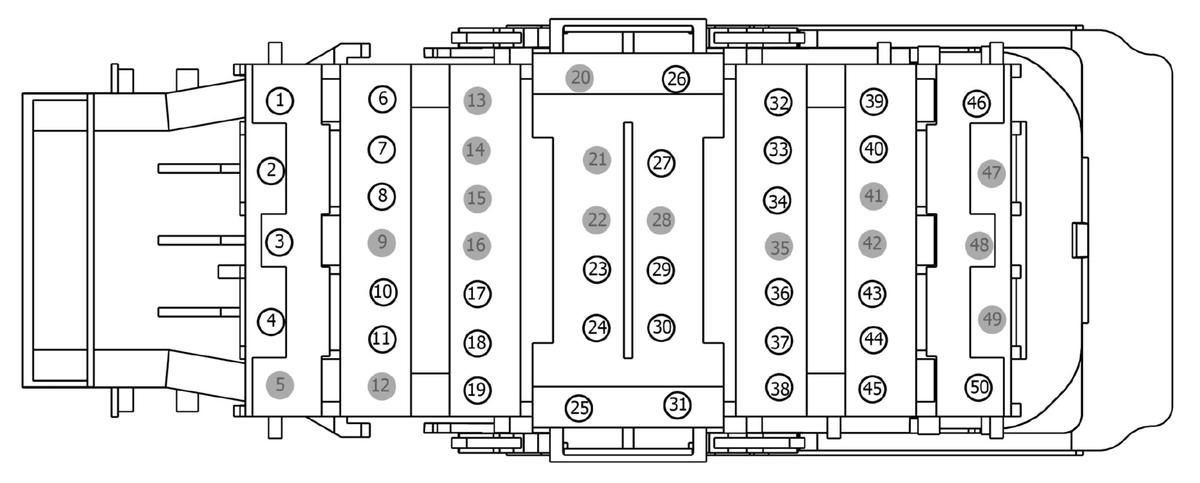

Connector End View C1035A - BATTERY JUNCTION BOX (BJB)

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C1035A	BATTERY JUNCTION BOX (BJB)	14290			part# N/A	Not Available

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
DU5T-14474-HBB	Not Available
DU5T-14474-JBB	Not Available
DU5T-14474-NBB	Not Available
DU5T-14474-UBB|JU5T-14474-UA	Not Available
DU5T-14474-LBB	EU2Z-14474-AB	2.8

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	RE226 (GN-VT)	22	CTRL MOD. - POWERTRAIN # FUEL PUMP ON/OFF (FP) -	DU5T-14474-HBB
2	CBB50 (YE-OG)	12	FUSE - 50 OR CIRCUIT BREAKER	DU5T-14474-RBB
3	CH401 (VT-WH)	22	RELAY - A/C CLUTCH	DU5T-14474-HBB
4	CBB04 (VT-RD)	12	FUSE - 4 OR CIRCUIT BREAKER	DU5T-14474-RBB
5	*	*	Not Used	N/A
6	CBB51 (BN)	18	FUSE - 51 OR CIRCUIT BREAKER	DU5T-14474-JBB
7	CDC54 (WH-GN)	22	CTRL MOD. - POWERTRAIN # STARTER MOTOR CONTROL SENSE (SMCS)	DU5T-14474-HBB
8	CDC12 (YE)	22	CTRL MOD. - POWERTRAIN # STARTER MOTOR CONTROL (SMC)	DU5T-14474-HBB
9	*	*	Not Used	N/A
10	CE226 (YE-VT)	22	CTRL MOD. - POWERTRAIN # FUEL PUMP ON/OFF (FP) +	DU5T-14474-HBB
11	CBB12 (GN-WH)	20	FUSE - 12 OR CIRCUIT BREAKER	DU5T-14474-JBB
12	*	*	Not Used	N/A
13	*	*	Not Used	N/A
14	*	*	Not Used	N/A
15	*	*	Not Used	N/A
16	*	*	Not Used	N/A
17	CRH04 (VT-GN)	20	CTRL MOD. - RELAY HORN	DU5T-14474-JBB
18	CBB75 (YE-GY)	22	FUSE - 75 OR CIRCUIT BREAKER	DU5T-14474-HBB
19	CBBC0 (YE-GN)	18	FUSE - 120 OR CIRCUIT BREAKER	DU5T-14474-JBB
20	*	*	Not Used	N/A
21	*	*	Not Used	N/A
22	*	*	Not Used	N/A
23	SBBJ6 (YE-RD)	20	FUSE - 186 OR CIRCUIT BREAKER	DU5T-14474-JBB
24	SBBA2 (BN-RD)	12	FUSE - 102 OR CIRCUIT BREAKER	DU5T-14474-NBB
25	SBB01 (RD)	12	FUSE - 1 OR CIRCUIT BREAKER	DU5T-14474-UBB
26	SBB91 (BU-RD)	12	FUSE - 91 OR CIRCUIT BREAKER	DU5T-14474-UBB
27	SBB31 (WH-RD)	12	FUSE - 31 OR CIRCUIT BREAKER	DU5T-14474-LBB
28	*	*	Not Used	N/A
29	SBB39 (WH-RD)	12	FUSE - 39 OR CIRCUIT BREAKER	DU5T-14474-LBB
30	SBB28 (GN-RD)	12	FUSE - 28 OR CIRCUIT BREAKER	DU5T-14474-NBB
31	SBB29 (GY-RD)	8	FUSE - 29 OR CIRCUIT BREAKER	DU5T-14474-UBB|JU5T-14474-UA
32	CBB02 (GN)	12	FUSE - 2 OR CIRCUIT BREAKER	DU5T-14474-LBB
33	CDC55 (GY)	22	RELAY - RUN START	DU5T-14474-HBB
34	CBB25 (WH-OG)	20	FUSE - 25 OR CIRCUIT BREAKER	DU5T-14474-JBB
35	*	*	Not Used	N/A
36	CBBG0 (YE-GN)	16	FUSE - 160 OR CIRCUIT BREAKER	DU5T-14474-JBB
37	CBB26 (BU-WH)	20	FUSE - 26 OR CIRCUIT BREAKER	DU5T-14474-JBB
38	CBB15 (BN-BU)	16	FUSE - 15 OR CIRCUIT BREAKER	DU5T-14474-JBB
39	CBB24 (VT-GN)	22	FUSE - 24 OR CIRCUIT BREAKER	DU5T-14474-HBB
40	CBB23 (BN-YE)	20	FUSE - 23 OR CIRCUIT BREAKER	DU5T-14474-JBB
41	*	*	Not Used	N/A
42	*	*	Not Used	N/A
43	SBBE6 (YE-RD)	22	FUSE - 146 OR CIRCUIT BREAKER	DU5T-14474-HBB
44	SBB17 (RD)	20	FUSE - 17 OR CIRCUIT BREAKER	DU5T-14474-JBB
45	SBBD7 (RD)	14	FUSE - 137 OR CIRCUIT BREAKER	DU5T-14474-LBB
46	CBB83 (GY)	12	FUSE - 83 OR CIRCUIT BREAKER	DU5T-14474-LBB
47	*	*	Not Used	N/A
48	*	*	Not Used	N/A
49	*	*	Not Used	N/A
50	CBB11 (BN)	12	FUSE - 11 OR CIRCUIT BREAKER	DU5T-14474-LBB
