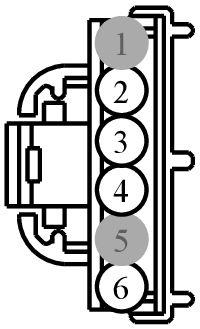

Connector End View C719 - REAR WINDOW CONTROL SWITCH LH

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C719	REAR WINDOW CONTROL SWITCH LH	14633			part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
3F2T-14474-RA	DU2Z-14474-BA	0.64

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	*	*	Not Used	N/A
2	CPW22 (GN-VT)	20	SWITCH - POWER WINDOW REAR LEFT # UP	3F2T-14474-RA
3	CPW21 (BN)	20	SWITCH - POWER WINDOW REAR LEFT # DOWN	3F2T-14474-RA
4	CPW06 (WH-BU)	20	CTRL MOD. - POWER WINDOW SWITCH REAR LEFT ILLUMINATION	3F2T-14474-RA
5	*	*	Not Used	N/A
6	RPW07 (GY-OG)	20	CTRL MOD. - POWER WINDOW SWITCH REAR LEFT RETURN	3F2T-14474-RA

Available Pigtail Kits

Pigtail Kit Part Number WPT-1028

Courtesy of FORD MOTOR COMPANY

Service Part Number:

9U2Z-14S411-APA

Gauge:

18

Pin material:

Silver

Cavities:

6

Vehicle Uses:

• Switch - Power Window - LH - Rear
• Switch - Power Window - Passenger (Front)
• Switch - Power Window - RH - Rear
