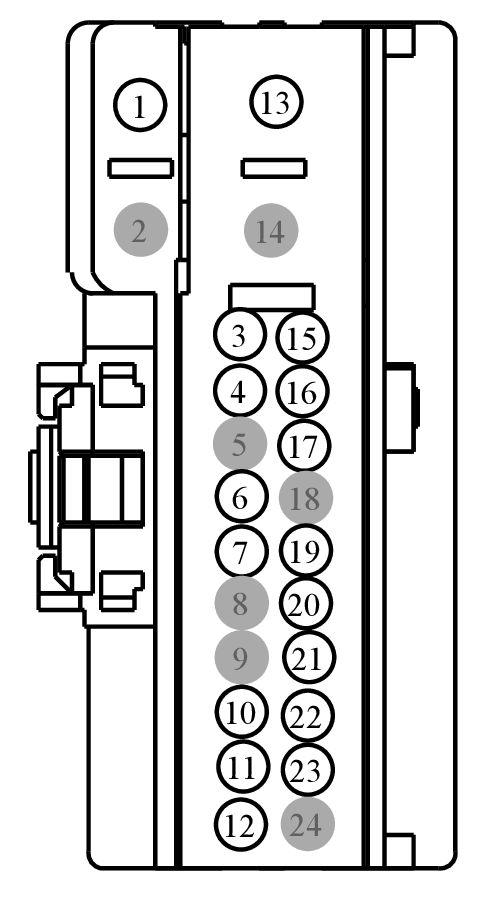

Connector End View C652B - PASSENGER DOOR MODULE (PDM)

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C652B	PASSENGER DOOR MODULE (PDM)	14630			part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
F8VB-14474-AA	EU2Z-14474-AB	2.8
8U5T-14474-BB	DU2Z-14474-CA	0.64

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CPW52 (VT-WH)	14	CTRL MOD. - WINDOW MOTOR REAR RIGHT # UP (IF POSITIVE)	F8VB-14474-AA
2	*	*	Not Used	N/A
3	CRB07 (BN)	22	CTRL MOD. - BLINDSPOT WARNING # LED MIRROR RIGHT OR PASSENGER +	8U5T-14474-BB
4	CLS26 (BU-GY)	22	CTRL MOD. - TURN LAMP RIGHT MIRROR +	8U5T-14474-BB
5	*	*	Not Used	N/A
6	CPW24 (WH-VT)	22	SWITCH - POWER WINDOW REAR RIGHT # UP	8U5T-14474-BB
7	CPW23 (GY)	22	SWITCH - POWER WINDOW REAR RIGHT # DOWN	8U5T-14474-BB
8	*	*	Not Used	N/A
9	*	*	Not Used	N/A
10	RRB07 (YE-VT)	22	CTRL MOD. - BLINDSPOT WARNING # LED MIRROR RIGHT OR PASSENGER -	8U5T-14474-BB
11	RPW09 (BN-WH)	22	CTRL MOD. - POWER WINDOW SWITCH REAR RIGHT RETURN	8U5T-14474-BB
12	CPW08 (GN-BU)	22	CTRL MOD. - POWER WINDOW SWITCH REAR RIGHT ILLUMINATION	8U5T-14474-BB
13	CPW53 (YE-OG)	14	CTRL MOD. - WINDOW MOTOR REAR RIGHT # DOWN (IF POSITIVE)	F8VB-14474-AA
14	*	*	Not Used	N/A
15	CPM32 (WH-BU)	22	CTRL MOD. - RIGHT MIRROR LEFT	8U5T-14474-BB
16	CPM34 (WH-BN)	22	CTRL MOD. - RIGHT MIRROR UP	8U5T-14474-BB
17	RPM08 (GN-BU)	22	CTRL MOD. - RIGHT MIRROR RETURN	8U5T-14474-BB
18	*	*	Not Used	N/A
19	CRD14 (WH-OG)	22	CTRL MOD. - HEATER MIRROR RIGHT	8U5T-14474-BB
20	RPM08 (GN-BU)	22	CTRL MOD. - RIGHT MIRROR RETURN	8U5T-14474-BB
21	VPM35 (YE-BU)	22	SENSOR - LEFT MIRROR POSITION # HORIZONTAL	8U5T-14474-BB
22	VPM38 (BN-GN)	22	SENSOR - RIGHT MIRROR POSITION # VERTICAL	8U5T-14474-BB
23	LPM12 (BU-GY)	22	CTRL MOD. - SENSORS MIRROR POSITION (RIGHT) +	8U5T-14474-BB
24	*	*	Not Used	N/A

Available Pigtail Kits

Pigtail Kit Part Number WPT-1608

Courtesy of FORD MOTOR COMPANY

Service Part Number:

KU2Z-14S411-UA

Gauge:

14 20

Pin material:

Tin (Greased) & Silver

Cavities:

Vehicle Uses:
