Connector End View C535B - DRIVER DOOR WINDOW CONTROL SWITCH

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C535B	DRIVER DOOR WINDOW CONTROL SWITCH	14631			part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
97BG-14474-BCA	DU2Z-14474-EA	2.8

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	GD234 (BK-VT)	14	GROUND - COWL SIDE/PILLAR A LEFT # 2ND POINT	97BG-14474-BCA
2	CPW10 (YE-VT)	14	SWITCH - POWER WINDOW DRIVER # DRIVER DOWN	97BG-14474-BCA
3	CBP10 (YE-OG)	14	FUSE - 10 OR CIRCUIT BREAKER	97BG-14474-BCA
4	CPW11 (BU-GY)	14	SWITCH - POWER WINDOW DRIVER # DRIVER UP	97BG-14474-BCA

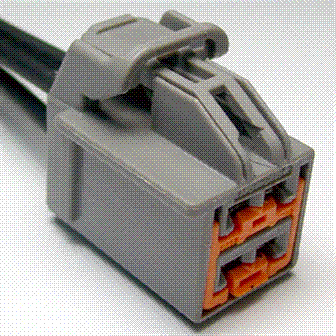

Available Pigtail Kits

Pigtail Kit Part Number WPT-1260

Courtesy of FORD MOTOR COMPANY

Service Part Number:

CU2Z-14S411-JA

Gauge:

14

Pin material:

Tin

Cavities:

4

Vehicle Uses:

• Connector - Inline
• Motor - Power Folding Seat
• Switch - Power Window - Driver
