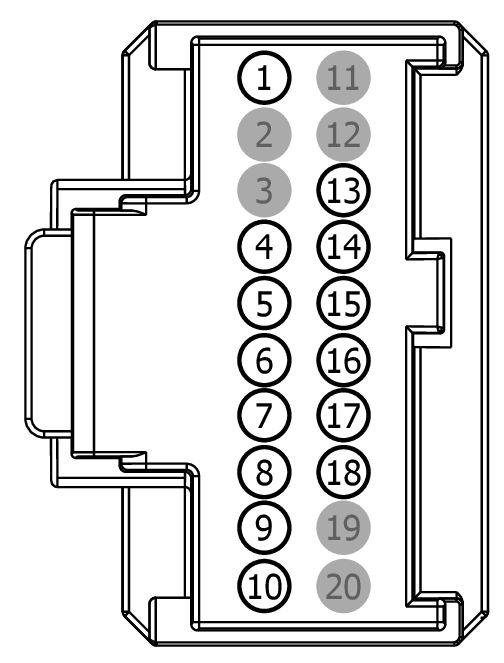

Connector End View C535A - DRIVER DOOR WINDOW CONTROL SWITCH

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C535A	DRIVER DOOR WINDOW CONTROL SWITCH	14631			part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
9U5T-14474-DB	DU2Z-14474-AA	0.64

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	VLN04 (VT-GY)	22	CTRL MOD. - IP/SWITCH ILLUMINATION	9U5T-14474-DB
2	*	*	Not Used	N/A
3	*	*	Not Used	N/A
4	RPM08 (GN-BU)	20	CTRL MOD. - RIGHT MIRROR RETURN	9U5T-14474-DB
5	CPM47 (BU-GY)	20	CTRL MOD. - LEFT MIRROR LEFT/RIGHT	9U5T-14474-DB
6	CPM45 (BN-BU)	20	CTRL MOD. - LEFT MIRROR UP/DOWN	9U5T-14474-DB
7	CPM48 (WH-OG)	20	CTRL MOD. - RIGHT MIRROR LEFT/RIGHT	9U5T-14474-DB
8	CPM46 (WH-GN)	20	CTRL MOD. - RIGHT MIRROR UP/DOWN	9U5T-14474-DB
9	CPW74 (YE-GN)	20	SWITCH - POWER WINDOW DRIVER # FRONT PASSENGER LOCK OUT BYPASS	9U5T-14474-DB
10	CPW14 (VT-WH)	20	SWITCH - POWER WINDOW DRIVER # PASSENGER LOCK OUT (ENABLE)	9U5T-14474-DB
11	*	*	Not Used	N/A
12	*	*	Not Used	N/A
13	CPW12 (GN-OG)	20	SWITCH - POWER WINDOW DRIVER # FRONT PASSENGER DOWN	9U5T-14474-DB
14	CPW13 (BN-YE)	20	SWITCH - POWER WINDOW DRIVER # FRONT PASSENGER UP	9U5T-14474-DB
15	CPW17 (BN-GN)	20	SWITCH - POWER WINDOW DRIVER # REAR RIGHT DOWN	9U5T-14474-DB
16	CPW18 (GY-VT)	20	SWITCH - POWER WINDOW DRIVER # REAR RIGHT UP	9U5T-14474-DB
17	CPW16 (BU-OG)	20	SWITCH - POWER WINDOW DRIVER # REAR LEFT UP	9U5T-14474-DB
18	CPW15 (YE)	20	SWITCH - POWER WINDOW DRIVER # REAR LEFT DOWN	9U5T-14474-DB
19	*	*	Not Used	N/A
20	*	*	Not Used	N/A

Available Pigtail Kits

Pigtail Kit Part Number WPT-1447

Courtesy of FORD MOTOR COMPANY

Service Part Number:

FU2Z-14S411-ATA

Gauge:

Pin material:

Tin

Cavities:

Vehicle Uses:
