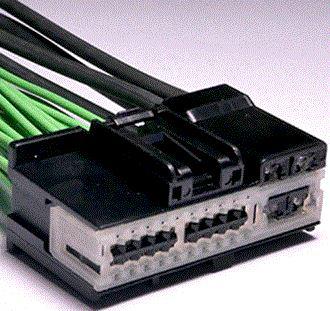

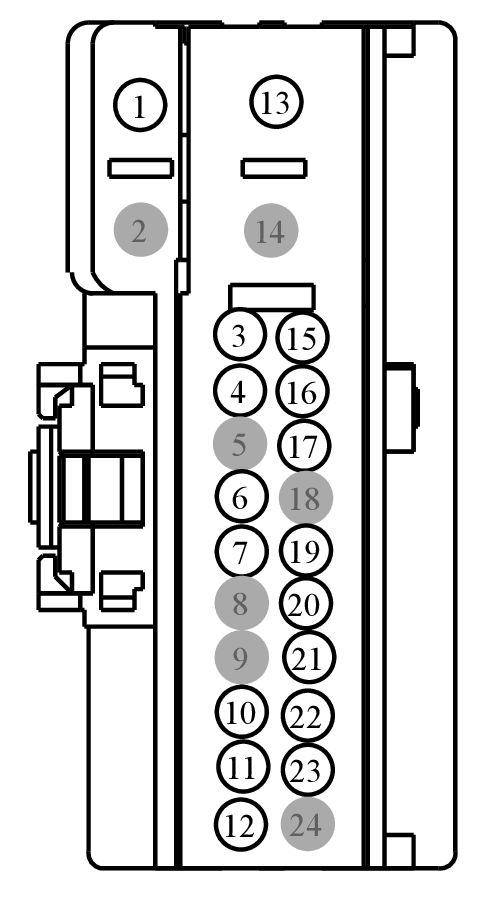

Connector End View C501B - DRIVER DOOR MODULE (DDM)

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C501B	DRIVER DOOR MODULE (DDM)	14631			part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
F8VB-14474-AA	EU2Z-14474-AB	2.8
DU5T-14474-EAB	DU2Z-14474-CA	0.64

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CPW46 (GY-BN)	14	CTRL MOD. - WINDOW MOTOR REAR LEFT # UP (IF POSITIVE)	F8VB-14474-AA
2	*	*	Not Used	N/A
3	CRB06 (GN-WH)	22	CTRL MOD. - BLINDSPOT WARNING # LED MIRROR LEFT OR DRIVER +	DU5T-14474-EAB
4	CLS22 (GN-BN)	22	CTRL MOD. - TURN LAMP LEFT MIRROR +	DU5T-14474-EAB
5	*	*	Not Used	N/A
6	CPW22 (GN-VT)	22	SWITCH - POWER WINDOW REAR LEFT # UP	DU5T-14474-EAB
7	CPW21 (BN)	22	SWITCH - POWER WINDOW REAR LEFT # DOWN	DU5T-14474-EAB
8	*	*	Not Used	N/A
9	*	*	Not Used	N/A
10	RRB06 (GY-VT)	22	CTRL MOD. - BLINDSPOT WARNING # LED MIRROR LEFT OR DRIVER -	DU5T-14474-EAB
11	RPW07 (GY-OG)	22	CTRL MOD. - POWER WINDOW SWITCH REAR LEFT RETURN	DU5T-14474-EAB
12	CPW06 (WH-BU)	22	CTRL MOD. - POWER WINDOW SWITCH REAR LEFT ILLUMINATION	DU5T-14474-EAB
13	CPW47 (VT-OG)	14	CTRL MOD. - WINDOW MOTOR REAR LEFT # DOWN (IF POSITIVE)	F8VB-14474-AA
14	*	*	Not Used	N/A
15	CPM28 (BU-BN)	22	CTRL MOD. - LEFT MIRROR RIGHT	DU5T-14474-EAB
16	CPM26 (WH)	22	CTRL MOD. - LEFT MIRROR DOWN	DU5T-14474-EAB
17	CPM03 (BU-WH)	22	CTRL MOD. - LEFT MIRROR COMMON GLASS ADJUSTMENT	DU5T-14474-EAB
18	*	*	Not Used	N/A
19	CRD13 (GN-VT)	22	CTRL MOD. - HEATER MIRROR LEFT	DU5T-14474-EAB
20	RPM05 (VT-GN)	22	CTRL MOD. - LEFT MIRROR RETURN	DU5T-14474-EAB
21	VPM35 (YE-BU)	22	SENSOR - LEFT MIRROR POSITION # HORIZONTAL	DU5T-14474-EAB
22	VPM36 (BN-YE)	22	SENSOR - LEFT MIRROR POSITION # VERTICAL	DU5T-14474-EAB
23	LPM30 (GY-VT)	22	CTRL MOD. - SENSORS MIRROR POSITION (LEFT) +	DU5T-14474-EAB
24	*	*	Not Used	N/A

Available Pigtail Kits

Pigtail Kit Part Number WPT-1608

Courtesy of FORD MOTOR COMPANY

Service Part Number:

KU2Z-14S411-UA

Gauge:

14 20

Pin material:

Tin (Greased) & Silver

Cavities:

Vehicle Uses:
