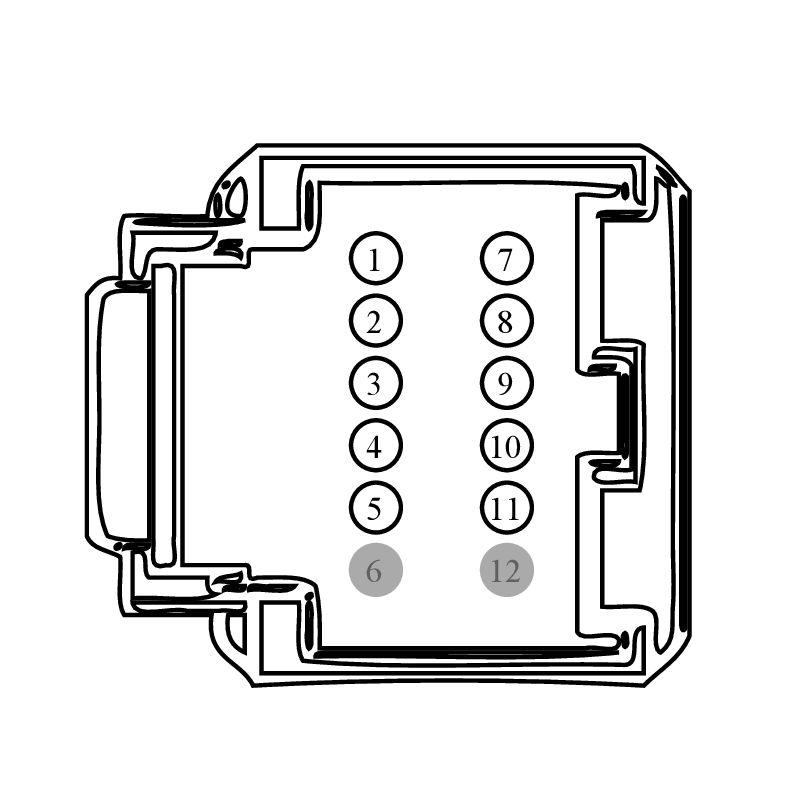

Connector End View C3675 - ELECTRONIC PARK BRAKE SWITCH
| Connector: |
Description |
Color |
Harness |
Base Part # |
Service Pigtail |
| C3675 |
ELECTRONIC PARK BRAKE SWITCH |
14B079 |
part# N/A |
Not Available |
 Courtesy of FORD MOTOR COMPANY
|
Check for Terminal Part Numbers
| Terminal Part Number |
Service Part Number |
Size |
|
| 9U5T-14474-DB |
DU2Z-14474-AA |
0.64 |
| Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
Terminal Part Number |
| 1 |
VLN04 (VT-GY) |
22 |
CTRL MOD. - IP/SWITCH ILLUMINATION |
9U5T-14474-DB |
| 2 |
GD214 (BK-BU) |
22 |
GROUND - INSTRUMENT PANEL STRUCTURE |
9U5T-14474-DB |
| 3 |
CCB20 (BU-WH) |
22 |
CTRL MOD. - ELEC.PARK BRAKE # SWITCH SUPPLY 1 |
9U5T-14474-DB |
| 4 |
CCB23 (VT-GN) |
22 |
CTRL MOD. - ELEC.PARK BRAKE # SWITCH INPUT 4 |
9U5T-14474-DB |
| 5 |
CH120 (GN-BN) |
22 |
CTRL MOD. - CLIMATE # AUTO-HOLD ENABLE SWITCH INDICATOR |
9U5T-14474-DB |
| 6 |
* |
* |
Not Used |
N/A |
| 7 |
CCB24 (WH-OG) |
22 |
CTRL MOD. - ELEC.PARK BRAKE # SWITCH INPUT 5 |
9U5T-14474-DB |
| 8 |
CCB25 (BN) |
22 |
CTRL MOD. - ELEC.PARK BRAKE # SWITCH INPUT 6 |
9U5T-14474-DB |
| 9 |
CCB22 (WH-BN) |
22 |
CTRL MOD. - ELEC.PARK BRAKE # SWITCH SUPPLY 3 |
9U5T-14474-DB |
| 10 |
CCB21 (GN-VT) |
22 |
CTRL MOD. - ELEC.PARK BRAKE # SWITCH SUPPLY 2 |
9U5T-14474-DB |
| 11 |
CH465 (BN-WH) |
22 |
SWITCH - CLIMATE CONTROL AUTO-HOLD ENABLE |
9U5T-14474-DB |
| 12 |
* |
* |
Not Used |
N/A |
