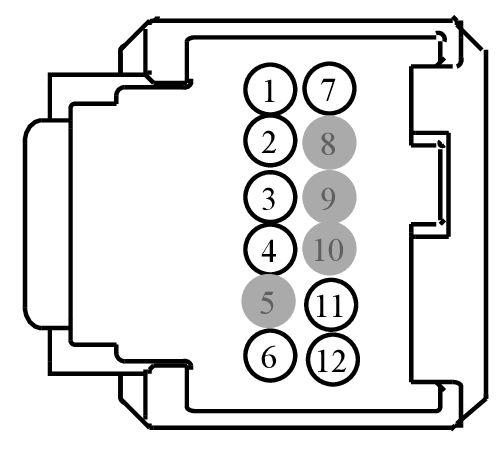

Connector End View C3010 - INSTRUMENT PANEL CONSOLE SWITCH ASSEMBLY
| Connector: | Description | Color | Harness | Base Part # | Service Pigtail | |
|---|---|---|---|---|---|---|
| C3010 | INSTRUMENT PANEL CONSOLE SWITCH ASSEMBLY | 14B079 | part# N/A | See Below | ||
Check for Terminal Part Numbers
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| 9U5T-14474-DB | DU2Z-14474-AA | 0.64 |
| Pin | Circuit | Gauge | Circuit Function | Qualifier | Terminal Part Number | |||
|---|---|---|---|---|---|---|---|---|
| 1 | CYT30 (GY-VT) | 22 | SWITCH - ECON CONTROL (ECO) + | 9U5T-14474-DB | ||||
| 2 | CMP32 (GN) | 22 | SWITCH - ACTIVE PARK ASSIST (AUTOPARK) | 9U5T-14474-DB | ||||
| 3 | CMP18 (GN-BN) | 22 | SWITCH - PARKING AID | 9U5T-14474-DB | ||||
| 4 | CE937 (VT-GY) | 22 | SWITCH - START/STOP DISABLE | 9U5T-14474-DB | ||||
| 4 | CYT36 (GY-YE) | 22 | SWITCH - ELECTRIC VEHICLE CONTROL (EV CONTROL) | 9U5T-14474-DB | ||||
| 5 | * | * | Not Used | N/A | ||||
| 6 | VLN04 (VT-GY) | 22 | CTRL MOD. - IP/SWITCH ILLUMINATION | 9U5T-14474-DB | ||||
| 7 | CMP02 (GN-BU) | 22 | CTRL MOD. - PARKING AID # INDICATOR STATUS | 9U5T-14474-DB | ||||
| 8 | * | * | Not Used | N/A | ||||
| 9 | * | * | Not Used | N/A | ||||
| 10 | * | * | Not Used | N/A | ||||
| 11 | RYT36 (GN-WH) | 22 | SWITCH - ELECTRIC VEHICLE CONTROL RETURN (EV CONTROL) | 9U5T-14474-DB | ||||
| 11 | CE469 (BN) | 22 | CTRL MOD. - POWERTRAIN # START/STOP ENABLE/DISABLE SWITCH INDICATOR | 9U5T-14474-DB | ||||
| 12 | GD214 (BK-BU) | 22 | GROUND - INSTRUMENT PANEL STRUCTURE | 9U5T-14474-DB | ||||
Available Pigtail Kits
Pigtail Kit Part Number WPT-1401
Service Part Number:
EU2Z-14S411-SA
Gauge:
20
Pin material:
Tin
Cavities:
12
Vehicle Uses:
- Module - Climate Control Seat
- Module - Heated Seat (Rear)
- Module - Image Processing
- Module - Media Gateway
- Module - Power Steering
- Monitor - Video/DVD
