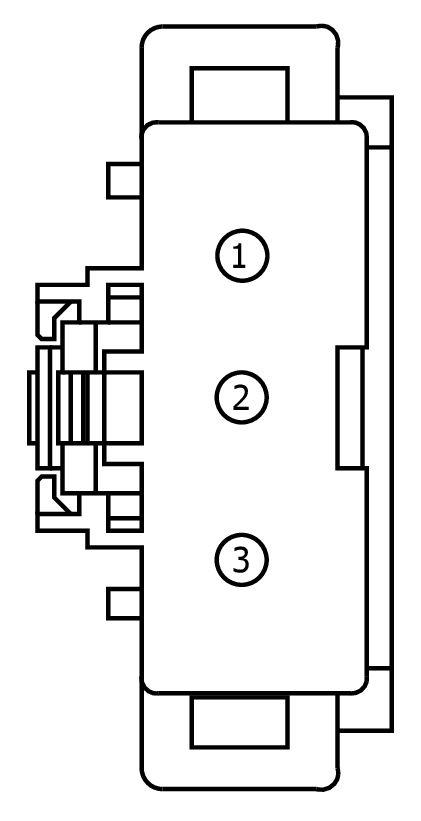

Connector End View C2280C - BODY CONTROL MODULE (BCM)
| Connector: |
Description |
Color |
Harness |
Base Part # |
Service Pigtail |
| C2280C |
BODY CONTROL MODULE (BCM) |
14A005 |
part# N/A |
Not Available |
 Courtesy of FORD MOTOR COMPANY
|
Check for Terminal Part Numbers
| Terminal Part Number |
Service Part Number |
Size |
|
| GU5T-14474-DAA |
Not Available |
| Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
Terminal Part Number |
| 1 |
SBP07 (WH-RD) |
12 |
FUSE - 7 OR CIRCUIT BREAKER |
GU5T-14474-DAA |
| 2 |
SBP14 (BN-RD) |
12 |
FUSE - 14 OR CIRCUIT BREAKER |
GU5T-14474-DAA |
| 3 |
CBP10 (YE-OG) |
12 |
FUSE - 10 OR CIRCUIT BREAKER |
GU5T-14474-DAA |
