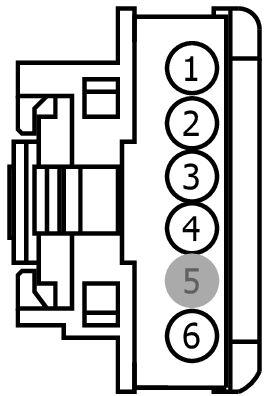

Connector End View C250 - IGNITION SWITCH

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C250	IGNITION SWITCH	14401			part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
9U5T-14474-DB	DU2Z-14474-AA	0.64

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	CDC35 (BU-WH)	22	SWITCH - IGNITION # START	9U5T-14474-DB
2	CDC34 (WH-OG)	22	SWITCH - IGNITION # RUN START	9U5T-14474-DB
3	CDC30 (BU-GY)	22	SWITCH - IGNITION # KEY IN	9U5T-14474-DB
4	SBP04 (GN-RD)	22	FUSE - 4 OR CIRCUIT BREAKER	9U5T-14474-DB
5	*	*	Not Used	N/A
6	CDC33 (VT-GN)	22	SWITCH - IGNITION # RUN ACCESSORY	9U5T-14474-DB

Available Pigtail Kits

Pigtail Kit Part Number WPT-1471

Courtesy of FORD MOTOR COMPANY

Service Part Number:

GU2Z-14S411-PA

Gauge:

20

Pin material:

Tin

Cavities:

6

Vehicle Uses:

• Sensor - EATC In Car Temperature
• Switch - Seat Lumbar
• Transceiver - Passive Anti-Theft (PATS)
