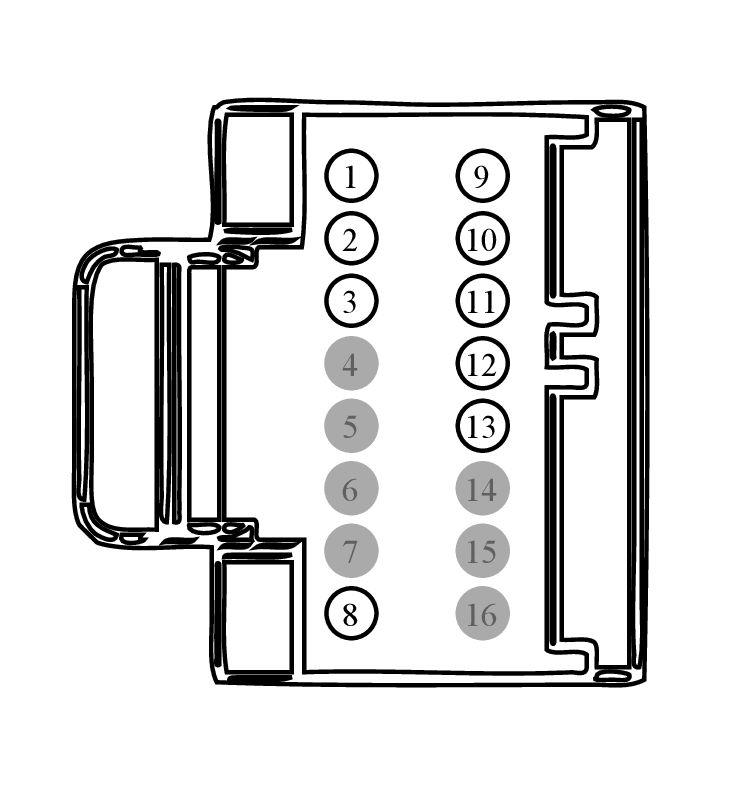

Connector End View C220 - INSTRUMENT PANEL CLUSTER (IPC) MODULE

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C220	INSTRUMENT PANEL CLUSTER (IPC) MODULE	14401			part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
9U5T-14474-DB	DU2Z-14474-AA	0.64
9U5T-14474-YB	DU2Z-14474-AA	0.64

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	RMC32 (GN-BU)	20	CTRL MOD. - SENSOR FUEL LEVEL	9U5T-14474-DB
2	RMC32 (GN-BU)	20	CTRL MOD. - SENSOR FUEL LEVEL	9U5T-14474-DB
3	GD214 (BK-BU)	20	GROUND - INSTRUMENT PANEL STRUCTURE	9U5T-14474-DB
4	*	*	Not Used	N/A
5	*	*	Not Used	N/A
6	*	*	Not Used	N/A
7	*	*	Not Used	N/A
8	SBP22 (BN-RD)	20	FUSE - 22 OR CIRCUIT BREAKER	9U5T-14474-DB
9	VMC23 (GN-OG)	20	SENSOR - FUEL LEVEL 2 (FLI)	9U5T-14474-DB
10	VMC11 (YE-VT)	20	SENSOR - FUEL LEVEL (FLI)	9U5T-14474-DB
11	CMC20 (GY)	22	SWITCH - LOW LEVEL WASHER FLUID	9U5T-14474-DB
12	VDB29 (GN-BU)	26	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 3 (LOWER) HIGH	9U5T-14474-YB
13	VDB30 (WH-GN)	26	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 3 (LOWER) LOW	9U5T-14474-YB
14	*	*	Not Used	N/A
15	*	*	Not Used	N/A
16	*	*	Not Used	N/A

Available Pigtail Kits

Pigtail Kit Part Number WPT-1560

Courtesy of FORD MOTOR COMPANY

Service Part Number:

JU2Z-14S411-APA

Gauge:

20

Pin material:

Tin

Cavities:

16

Vehicle Uses:

• Instrument Cluster
• Module - Seat Memory
• Module - Upfitter Interface
• Radio - Amplifier
