Connector End View C175E - POWERTRAIN CONTROL MODULE (PCM)

Connector: Description Color Harness Base Part # Service Pigtail
C175E POWERTRAIN CONTROL MODULE (PCM) 12C508 part# N/A Not Available

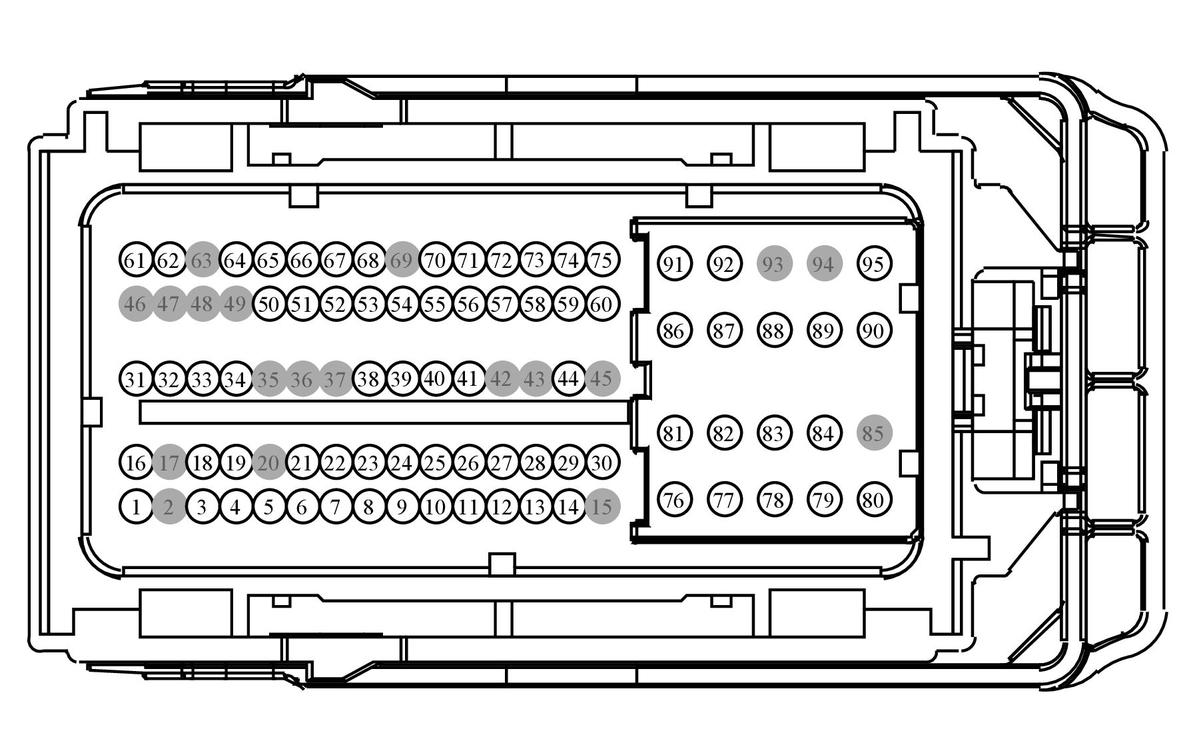

GFDWR119459Courtesy of FORD MOTOR COMPANY
Terminal Part Number  Service Part Number  Size
BU5T-14474-BC Not Available
BU5T-14474-AC DU2Z-14474-CA 0.64
7C3T-14474-CA DU2Z-14474-DA 1.5
Pin  Circuit  Gauge  Circuit Function  Qualifier  Terminal Part Number
1 CE422 (WH-OG) 18 CTRL MOD. - POWERTRAIN # VARIABLE CAMSHAFT TIMING VALVE 2 (VCT2) BU5T-14474-BC
2 VE850 (WH-VT) 18 SENSOR - WASTE GATE CONTROL PRESSURE (WGCP) BU5T-14474-BC
3 CE158 (GN-OG) 18 CTRL MOD. - POWERTRAIN # CYLINDER DEACTIVATION VALVE CONTROL BANK 1-1 (CDVC 11) BU5T-14474-BC
4 RE208 (BU) 18 CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 4 (INJ) - BU5T-14474-BC
5 CE421 (VT) 18 CTRL MOD. - POWERTRAIN # VARIABLE CAMSHAFT TIMING VALVE 1 (VCT1) BU5T-14474-BC
6 VE175 (BN-WH) 18 CTRL MOD. - POWERTRAIN # ELECTRONIC COMPRESSOR BYPASS VALVE (ECBV PWM) BU5T-14474-BC
7 CE358 (GY-YE) 18 CTRL MOD. - POWERTRAIN # PUMP VARIABLE OIL BU5T-14474-BC
8 RE209 (WH-GN) 18 CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 5 (INJ) - BU5T-14474-BC
9 LE238 (GY) 20 CTRL MOD. - POWERTRAIN # FUEL RAIL PRESSURE SENSOR + BU5T-14474-AC
10 LE134 (YE) 20 CTRL MOD. - POWERTRAIN # ELECTRONIC THROTTLE CONTROL (ETCREF) BU5T-14474-AC
11 VE801 (VT-OG) 20 SENSOR - KNOCK 1ST BANK 1ST OR UNIQUE (KS1P) [KSL1+] BU5T-14474-AC
12 RE323 (WH-BN) 20 CTRL MOD. - POWERTRAIN # KNOCK SENSOR 1ST BANK 1ST OR UNIQUE (KS1N) [KSL1-] - BU5T-14474-AC
13 RE141 (BN-GN) 18 CTRL MOD. - POWERTRAIN # ENGINE COOLANT TEMPERATURE SENSOR BU5T-14474-BC
14 RE429 (GY-OG) 18 CTRL MOD. - POWERTRAIN # VARIABLE RELUCTANCE SENSOR (VRSRTN) (CAMSHAFT POSITION) BU5T-14474-BC
15 * * Not Used N/A
16 RE134 (BU-VT) 20 CTRL MOD. - POWERTRAIN # ELECTRONIC THROTTLE CONTROL (ETCRTN) BU5T-14474-AC
17 * * Not Used N/A
18 RE210 (BN-VT) 18 CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 6 (INJ) - BU5T-14474-BC
19 LE423 (GN-VT) 18 CTRL MOD. - POWERTRAIN # VOLTAGE REFERENCE ENGINE (VREF) (E-VREF) (VREF1) BU5T-14474-BC
20 * * Not Used N/A
21 LE182 (VT-BN) 20 CTRL MOD. - POWERTRAIN # ENGINE OIL PRESSURE TRANSDUCER BU5T-14474-AC
22 VE728 (GN) 18 SENSOR - FUEL RAIL TEMPERATURE (FRT) BU5T-14474-BC
23 VE711 (YE-VT) 20 SENSOR - CRANKSHAFT POSITION (CKPP) + BU5T-14474-AC
24 VET97 (VT-OG) 20 SENSOR-TRANSMISSION FLUID PRESSURE 1 N/A
25 LE458 (BU-WH) 18 CTRL MOD. - POWERTRAIN # VOLTAGE REFERENCE ENGINE 2 (VREF2) BU5T-14474-BC
26 VE731 (YE-GN) 18 SENSOR - HEATED OXYGEN POST CAT. 1ST OR UNIQUE (HO2S12) BU5T-14474-BC
27 VE706 (BN) 18 SENSOR - CAMSHAFT POSITION BANK 1 IN+EX / IN (CMP1) [CID-H] (CID1) + BU5T-14474-BC
28 VE707 (GN) 18 SENSOR - CAMSHAFT POSITION BANK 2 IN+EX / IN (CMP2) [CID-H] (CID2) + BU5T-14474-BC
29 VET84 (BN-GN) 20 SENSOR-TRANSMISSION RANGE # PWM OUTPUT 1 (TR-P1) N/A
30 LE135 (GY) 20 CTRL MOD. - POWERTRAIN # CRANKSHAFT POSITION SENSOR (CKP) + BU5T-14474-AC
31 VE826 (BN-VT) 20 SENSOR - UNIVERSAL HEATED OXYGEN 1ST OR UNIQUE (UO2SN-11) N/A
32 LE448 (GY-BU) 18 CTRL MOD. - POWERTRAIN # VOLTAGE REFERENCE UNIVERSAL HEGO 1ST (UREF-11) BU5T-14474-BC
33 LE451 (BN-YE) 18 CTRL MOD. - POWERTRAIN # UNIVERSAL HEATED OXYGEN PUMPING CURRENT 1ST (UO2SIP-11) BU5T-14474-BC
34 LE452 (GN-WH) 18 CTRL MOD. - POWERTRAIN # UNIVERSAL HEATED OXYGEN MEASURED PUMPING CURRENT 1ST (UO2SIA-11) BU5T-14474-BC
35 * * Not Used N/A
36 * * Not Used N/A
37 * * Not Used N/A
38 VE716 (YE) 20 SENSOR - ENGINE COOLANT TEMPERATURE (ECT) BU5T-14474-AC
39 VE727 (BU-BN) 18 SENSOR - FUEL RAIL PRESSURE/INJECTION PRESSURE (FRP) (IPS) BU5T-14474-BC
40 VE712 (BU-GY) 20 SENSOR - CYLINDER HEAD TEMPERATURE (CHT) BU5T-14474-AC
41 RE405 (GN-WH) 18 CTRL MOD. - POWERTRAIN # SIGNAL RETURN ENGINE (E-SIGRTN) (SIGRTN-A) BU5T-14474-BC
42 * * Not Used N/A
43 * * Not Used N/A
44 VET98 (BN-YE) 20 SENSOR-TRANSMISSION FLUID PRESSURE 2 N/A
45 * * Not Used N/A
46 * * Not Used N/A
47 * * Not Used N/A
48 * * Not Used N/A
49 * * Not Used N/A
50 CE412 (YE-VT) 18 CTRL MOD. - POWERTRAIN # THROTTLE ACTUATOR CONTROL MOTOR (TACM+) BU5T-14474-BC
51 CE426 (BU-GN) 18 CTRL MOD. - POWERTRAIN # THROTTLE ACTUATOR CONTROL MOTOR (TACM-) BU5T-14474-BC
52 VE804 (GN-BN) 18 SENSOR - MANIFOLD ABSOLUTE PRESSURE THERMISTOR (TMAP) + N/A
53 RE329 (WH-BU) 18 CTRL MOD. - POWERTRAIN # MANIFOLD PRESSURE SENSOR (MAP) - BU5T-14474-BC
54 VE818 (BN) 20 SENSOR - THROTTLE POSITION # NEGATIVE SLOPE (TP1-NS) N/A
55 RE238 (BU-BN) 20 CTRL MOD. - POWERTRAIN # FUEL RAIL PRESSURE SENSOR - BU5T-14474-AC
56 VE718 (BU-GN) 20 SENSOR - ENGINE OIL QUALITY EARLY PRODUCTION BU5T-14474-AC
57 RE406 (GY-VT) 18 CTRL MOD. - POWERTRAIN # SIGNAL RETURN TRANSMISSION (T-SIGRTN) (SIGRTN-B) BU5T-14474-BC
58 CE305 (BU-OG) 18 CTRL MOD. - POWERTRAIN # IGNITION COIL ON PLUG ASSEMBLY 3 (COP-C) BU5T-14474-BC
59 CE304 (YE-BU) 18 CTRL MOD. - POWERTRAIN # IGNITION COIL ON PLUG ASSEMBLY 2 (COP-B) BU5T-14474-BC
60 CE303 (WH-VT) 18 CTRL MOD. - POWERTRAIN # IGNITION COIL ON PLUG ASSEMBLY 1 (COP-A) BU5T-14474-BC
61 VE744 (GY-BN) 20 SENSOR - INTERMEDIATE SHAFT SPEED (ISS) BU5T-14474-AC
62 RET24 (BN-BU) 20 CTRL MOD. - POWERTRAIN # TRANSMISSION RANGE SIGNAL RETURN (TRGND) BU5T-14474-AC
63 * * Not Used N/A
64 CET51 (WH) 20 CTRL MOD. - POWERTRAIN # TRANSMISSION CLUTCH PRESSURE CONTROL (CPC) BU5T-14474-AC
65 CET50 (WH-OG) 20 CTRL MOD. - POWERTRAIN # TRANSMISSION LINE PRESSURE CONTROL (LPC) BU5T-14474-AC
66 CET95 (GN-WH) 20 CTRL MOD. - POWERTRAIN # ONE-WAY CLUTCH CONTROL ELECTRO-MECHANICAL LOW BU5T-14474-AC
67 CET08 (BN-WH) 20 CTRL MOD. - POWERTRAIN # SOLENOID PRESSURE CONTROL 4 (PC4) [EPC] [VFS] BU5T-14474-AC
68 RET04 (YE-OG) 20 CTRL MOD. - POWERTRAIN # SENSOR OUTPUT SHAFT SPEED (OSS) BU5T-14474-AC
69 * * Not Used N/A
70 LE425 (GY-YE) 20 CTRL MOD. - POWERTRAIN # VOLTAGE REFERENCE TRANSMISSION (T-VREF) BU5T-14474-AC
71 LE461 (BU-BN) 20 CTRL MOD. - POWERTRAIN # VOLTAGE REFERENCE TRANSMISSION 2 (T-VREF2) BU5T-14474-AC
72 CET07 (GY-OG) 20 CTRL MOD. - POWERTRAIN # SOLENOID PRESSURE CONTROL 3 (PC3) [EPC] [VFS] BU5T-14474-AC
73 CET11 (GN) 20 CTRL MOD. - POWERTRAIN # SOLENOID PRESSURE CONTROL 7 (PC7) [EPC] [VFS] BU5T-14474-AC
74 CET06 (GN-BN) 20 CTRL MOD. - POWERTRAIN # SOLENOID PRESSURE CONTROL 2 (PC2) [EPC] [VFS] BU5T-14474-AC
75 CET05 (BU-GY) 20 CTRL MOD. - POWERTRAIN # SOLENOID PRESSURE CONTROL 1 (PC1) [EPC] [VFS] BU5T-14474-AC
76 CE235 (GN-BN) 18 CTRL MOD. - POWERTRAIN # HEATER OXYGEN SEN. PRE CAT. 1ST OR UNIQUE (HTR11) 7C3T-14474-DA
77 RE206 (BU-OG) 18 CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 2 (INJ) - 7C3T-14474-DA
78 RE205 (YE-BU) 18 CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 1 (INJ) - 7C3T-14474-DA
79 CE256 (BU-OG) 18 CTRL MOD. - POWERTRAIN # FUEL VOLUME CONTROL VALVE (FVCV) + 7C3T-14474-DA
80 VET81 (YE-GY) 20 SENSOR-TRANSMISSION RANGE # PWM OUTPUT 2 (TR-P2) N/A
81 CE233 (WH-OG) 18 CTRL MOD. - POWERTRAIN # HEATER OXYGEN SEN. POST CAT. 1ST OR UNIQUE (HTR12) 7C3T-14474-DA
82 CE206 (GY-YE) 18 CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 2 (INJ) + 7C3T-14474-DA
83 CE205 (GN-BU) 18 CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 1 (INJ) + 7C3T-14474-DA
84 RE256 (GN-BU) 18 CTRL MOD. - POWERTRAIN # FUEL VOLUME CONTROL VALVE (FVCV) - 7C3T-14474-DA
85 * * Not Used N/A
86 RE717 (GY-YE) 18 SENSOR - ENGINE OIL TEMPERATURE (EOT) (OIL LEVEL TEMPERATURE QUALITY) 7C3T-14474-DA
87 CET44 (BU-WH) 20 CTRL MOD. - POWERTRAIN # SOLENOID SHIFT CONTROL LOW-SIDE 3 (SS3) 7C3T-14474-CA
88 CE207 (VT-GY) 18 CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 3 (INJ) + 7C3T-14474-DA
89 RE207 (GN-VT) 18 CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 3 (INJ) - 7C3T-14474-DA
90 RET33 (WH-VT) 20 SENSOR - TURBINE/TRANSMISSION SHAFT SPEED (TSS) - 7C3T-14474-CA
91 CET49 (BN) 18 CTRL MOD. - POWERTRAIN # TRANSMISSION SOLENOID POWER CONTROL 2 (TSPC2) 7C3T-14474-DA
92 CET25 (BU-GN) 18 CTRL MOD. - POWERTRAIN # TRANSMISSION SOLENOID POWER CONTROL (TSPC) 7C3T-14474-DA
93 * * Not Used N/A
94 * * Not Used N/A
95 CET91 (YE-OG) 18 CTRL MOD. - POWERTRAIN # TRANSMISSION ACTUATOR SUPPLY VOLTAGE 7C3T-14474-DA
