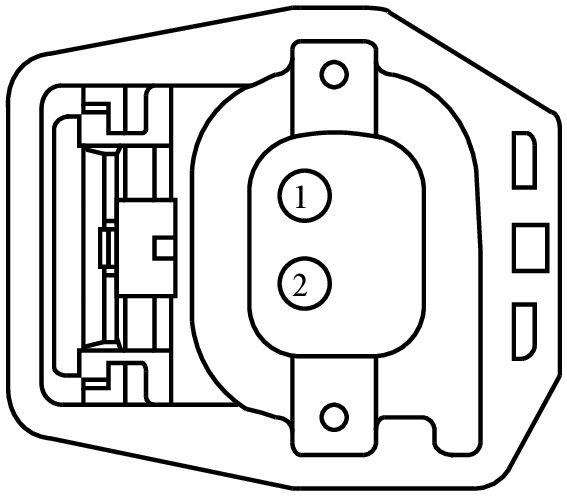

Connector End View C138 - LOW WASHER FLUID WARNING INDICATOR SWITCH
| Connector: | Description | Color | Harness | Base Part # | Service Pigtail | |
|---|---|---|---|---|---|---|
| C138 | LOW WASHER FLUID WARNING INDICATOR SWITCH | 17A611 | part# N/A | Not Available | ||
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| Pin | Circuit | Gauge | Circuit Function | Qualifier | Terminal Part Number | |||
|---|---|---|---|---|---|---|---|---|
| 1 | CMC20 (GY) | 22 | SWITCH - LOW LEVEL WASHER FLUID | 97BG-14474-ADA | ||||
| 2 | GD123 (BK-GY) | 22 | GROUND - FENDER FRONT RIGHT | 97BG-14474-ADA | ||||
