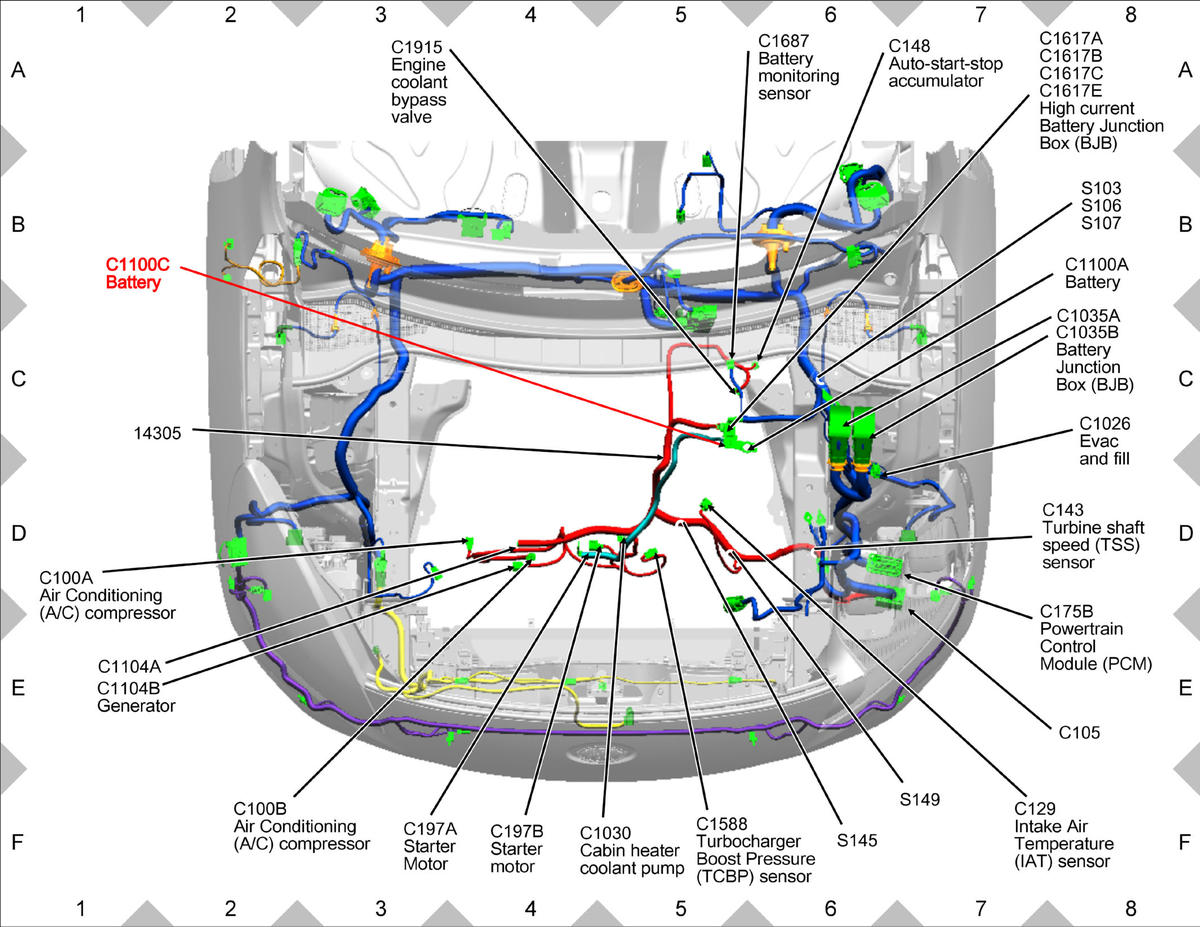

C1100C Engine Compartment On Positive Battery Terminal (1 of 2)

GFDWR90509

Courtesy of FORD MOTOR COMPANY
