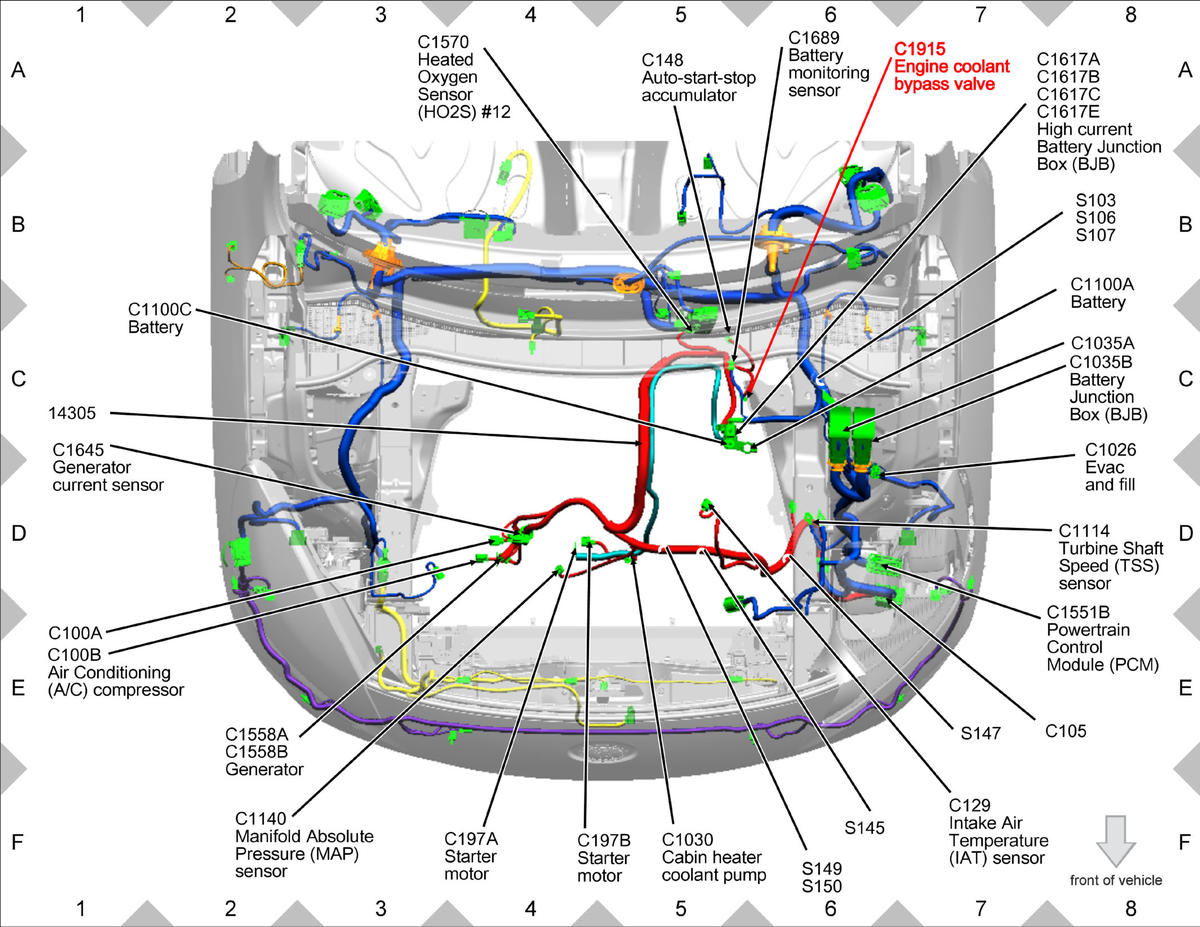

Engine Coolant Bypass Valve Engine Compartment Rear (1 of 2)

GFDWR89934

Courtesy of FORD MOTOR COMPANY
