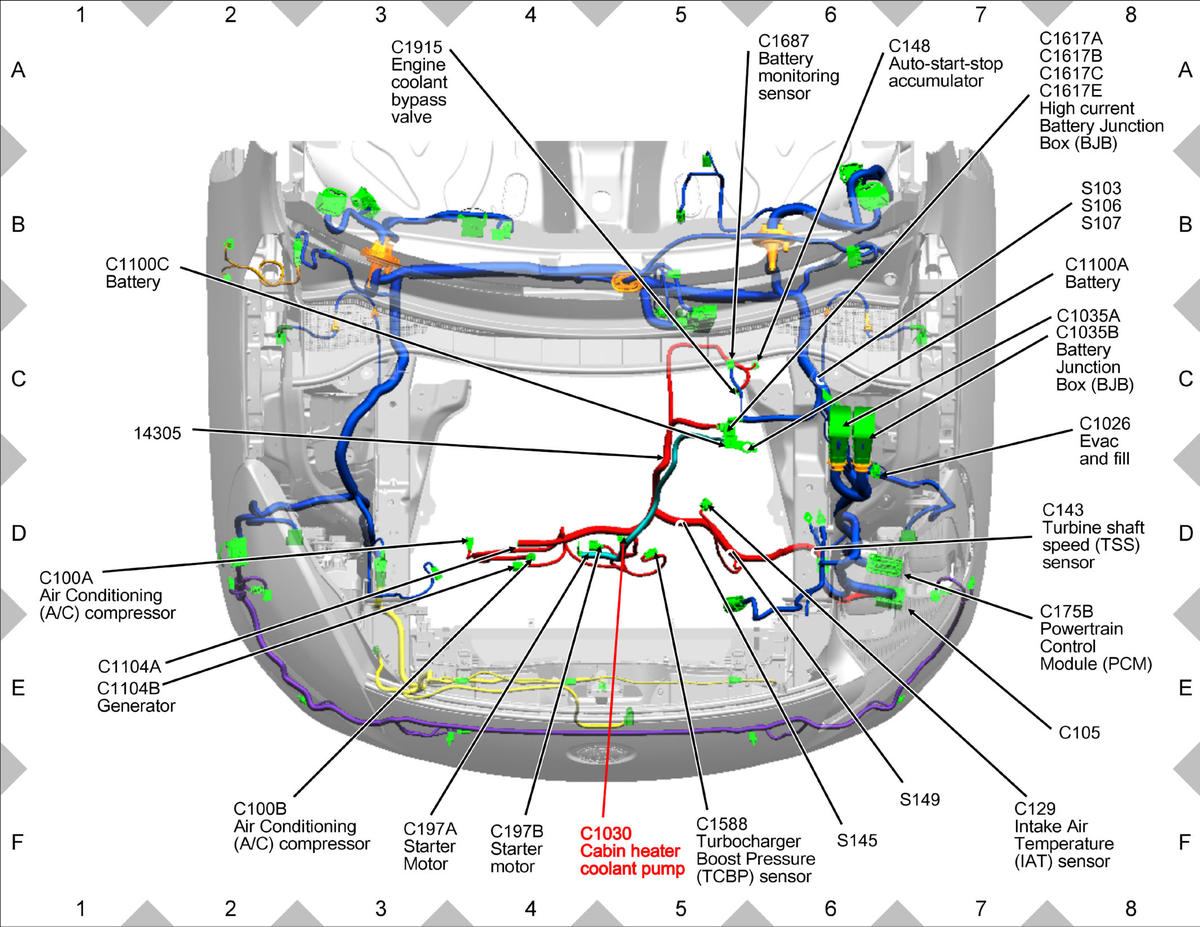

Cabin Heater Coolant Pump Engine Compartment Front (1 of 2)
Cabin Heater Coolant Pump Engine Compartment Front (1 of 2)
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
